Features:
Bore 3/4", 1/2" & 5/8"
Body EPDM
Suits Glass O.D 3/4" (19mm), 1/2" (12mm) & 5/8" (16mm)
Suits Water Level Gauge Hawleys, Klinger, Mala etc

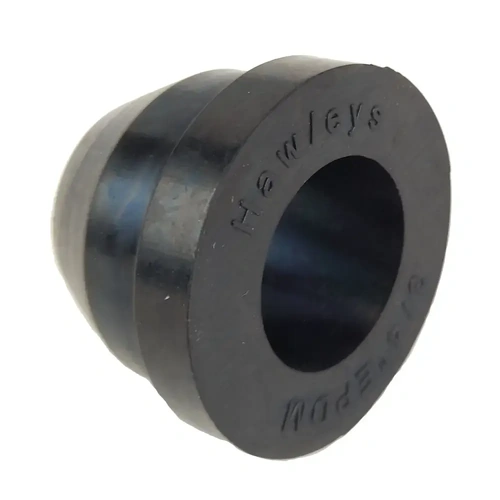

These EPDM cones are used in boiler gauge mounts to form the seal between the borosilicate glass and gauge mount wall. These are a special high temperature EPDM and will suit a wide range of gauge mounts including Klinger AB12, Hawleys BGM and many more. A common consumable used by the boiler service industry as the are usually changed out at quarterly services.
Product | Bore Size | To Suit Glass O.D |
---|---|---|
EPDMCone-1 | 3/4" | 18mm to 19mm |
EPDMCone-2 | 1/2" | 12mm to 12.5mm |
EPDMCone-3 | 5/8" | 15mm to 16mm |

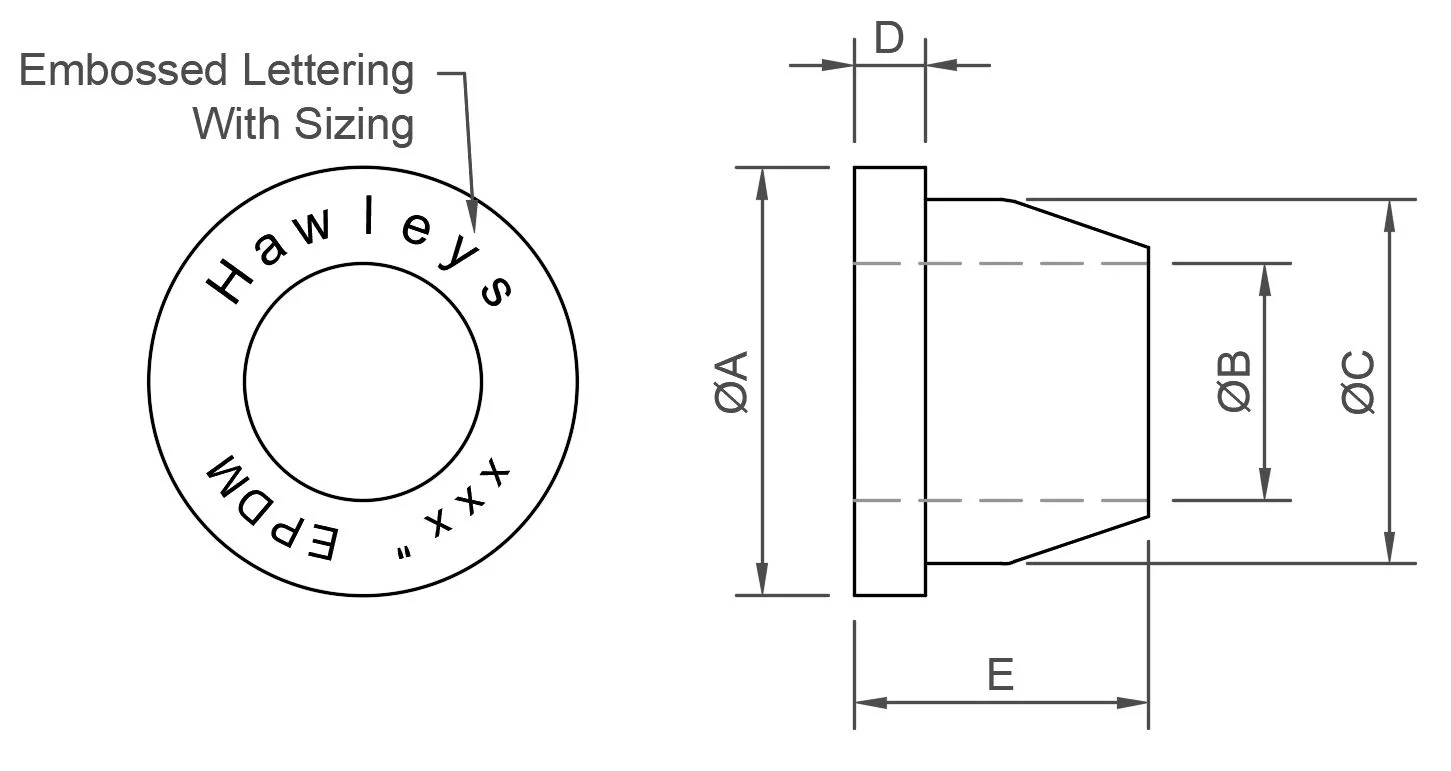

Gauge Mount | Suit Glass | ØA | ØB | ØC | D | E |
---|---|---|---|---|---|---|
3/4" | 3/4" | 33.5 | 21 | 28.5 | 5.5 | 23 |
3/4" | 5/8" | 33.15 | 15 | 28.7 | 5.85 | 23.25 |
3/4" | 1/2" | 33.15 | 11.95 | 28.7 | 5.85 | 23.25 |
1/2" | 1/2" | 28.8 | 12.2 | 23.5 | 3.25 | 17.5 |
All dimensions in mm unless otherwise stated
