Features:
Torque 35 to 1500 NM
Function Drive Open/Drive Close, 90 degree turn
Body FBP coated Die Cast Aluminium
Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
Rating IP68

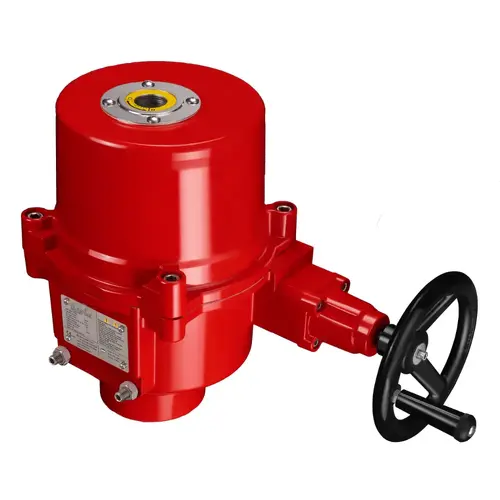

These quarter turn (90 degree turn) electric actuators come with an explosion proof hazardous area certification. They come standard with a manual override, extra limit switches and are IP68 weather rated. IECEx Explosion Proof & Dust protection certified Exdb11BT4Gb and Extb111CT130CDbIP68. ATEX certified Sira 17ATEX1243X.
Model | Torque (Nm) | Nominal Power (Watt) | Running Time (seconds) | Manual Override | Mounting (ISO 5211) | Shaft (mm) | Depth of Shaft (mm) |
---|---|---|---|---|---|---|---|
0ME-1 | 35 | 10 | 11 | Allen Key | F03/F05 | 14 | 17 |
0ME-A | 50 | 10 | 21 | Allen Key | F07 | 17 | 20 |
0ME-2 | 90 | 40 | 18 | Hand Wheel | F07 | 22 | 30 |
0ME-3 | 150 | 40 | 28 | Hand Wheel | F07 | 22 | 30 |
0ME-4 | 400 | 80 | 20 | Hand Wheel | F10 | 36 | 48 |
0ME-5 | 500 | 80 | 27 | Hand Wheel | F10 | 36 | 48 |
0ME-6 | 650 | 80 | 36 | Hand Wheel | F10 | 36 | 48 |
0ME-7 | 1000 | 120 | 52 | Hand Wheel | F12 or F14 | 36 | 50 |
0ME-8 | 1500 | 120 | 54 | Hand Wheel | F12 or F14 | 36 | 50 |
