SKU: YPLL

Extended Male Elbow Push FIt

From $2.97

Inc GST
In Stock
Make an Enquiry

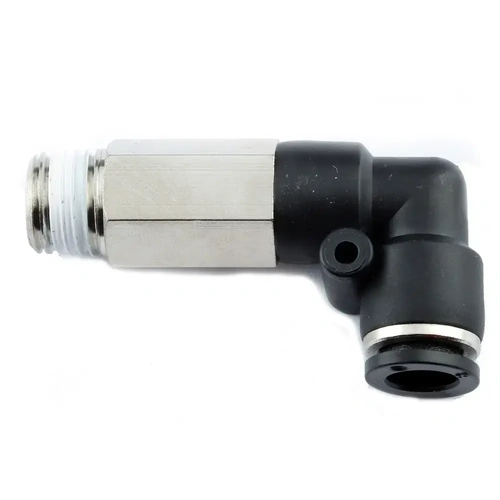

Metric extended male swivel elbow connector push fit fitting. One end has a male thread and the other end has a metric push fit connector. Simply push the tube in to seal and pull the collet down while pulling the tube out to release. The elbow can be swivelled in any direction even once the thread is engaged to allow the desired angle to be received. It has an extension which is ideal when used in conjunction with a normal elbow so it can sit over the top on the same angle.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

Extended Male Swivel Elbow Push Fit Fitting

Model O.D Tube (øD) Thread (R) BSPT E B øP A H F ød
YPLL04-M5 4 M5 16.8 32.3 10.5 4 10 - -
YPLL04-01 4 1/8” 16.8 35.3 10.5 7 10 - -
YPLL04-02 4 1/4” 16.8 37.8 10.5 9.5 14 - -
YPLL06-M5 6 M5 19 35 13 4 12 8 3.2
YPLL06-01 6 1/8” 19 38 13 7 12 8 3.2
YPLL06-02 6 1/4” 19 41 13 9.5 14 8 3.2
YPLL06-03 6 3/8” 19 43 13 10.5 17 8 3.2
YPLL06-04 6 1/2" 19 47 13 13 21 8 3.2
YPLL08-01 8 1/8” 23 43 14.4 7 14 9 3.2
YPLL08-02 8 1/4” 23 46 14.4 9.5 14 9 3.2
YPLL08-03 8 3/8” 23 47 14.4 10.5 17 9 3.2
YPLL08-04 8 1/2" 23 52 14.4 13 21 9 3.2
YPLL10-01 10 1/8” 27.5 49.5 18.4 7 17 12 4.2
YPLL10-02 10 1/4” 27.5 52 18.4 9.5 17 12 4.2
YPLL10-03 10 3/8” 27.5 54 18.4 10.5 17 12 4.2
YPLL10-04 10 1/2" 27.5 58 18.4 13 21 12 4.2
YPLL12-02 12 1/4” 30 58 20 9.5 19 13.2 4.2
YPLL12-03 12 3/8” 30 59 20 10.5 19 13.2 4.2
YPLL12-04 12 1/2" 30 63 20 13 21 13.2 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Extension Swivel Elbow Push Fit

Others Also Bought

YPLL

Extended Male Elbow Push FIt

Features:

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Extension Swivel Elbow Push Fit

Description:

Metric extended male swivel elbow connector push fit fitting. One end has a male thread and the other end has a metric push fit connector. Simply push the tube in to seal and pull the collet down while pulling the tube out to release. The elbow can be swivelled in any direction even once the thread is engaged to allow the desired angle to be received. It has an extension which is ideal when used in conjunction with a normal elbow so it can sit over the top on the same angle.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre
.

Extended Male Elbow Push FIt

YPLL

Dimensions:

Extended Male Swivel Elbow Push Fit Fitting

Model O.D Tube (øD) Thread (R) BSPT E B øP A H F ød
YPLL04-M5 4 M5 16.8 32.3 10.5 4 10 - -
YPLL04-01 4 1/8” 16.8 35.3 10.5 7 10 - -
YPLL04-02 4 1/4” 16.8 37.8 10.5 9.5 14 - -
YPLL06-M5 6 M5 19 35 13 4 12 8 3.2
YPLL06-01 6 1/8” 19 38 13 7 12 8 3.2
YPLL06-02 6 1/4” 19 41 13 9.5 14 8 3.2
YPLL06-03 6 3/8” 19 43 13 10.5 17 8 3.2
YPLL06-04 6 1/2" 19 47 13 13 21 8 3.2
YPLL08-01 8 1/8” 23 43 14.4 7 14 9 3.2
YPLL08-02 8 1/4” 23 46 14.4 9.5 14 9 3.2
YPLL08-03 8 3/8” 23 47 14.4 10.5 17 9 3.2
YPLL08-04 8 1/2" 23 52 14.4 13 21 9 3.2
YPLL10-01 10 1/8” 27.5 49.5 18.4 7 17 12 4.2
YPLL10-02 10 1/4” 27.5 52 18.4 9.5 17 12 4.2
YPLL10-03 10 3/8” 27.5 54 18.4 10.5 17 12 4.2
YPLL10-04 10 1/2" 27.5 58 18.4 13 21 12 4.2
YPLL12-02 12 1/4” 30 58 20 9.5 19 13.2 4.2
YPLL12-03 12 3/8” 30 59 20 10.5 19 13.2 4.2
YPLL12-04 12 1/2" 30 63 20 13 21 13.2 4.2

All dimensions in mm unless shown otherwise.
