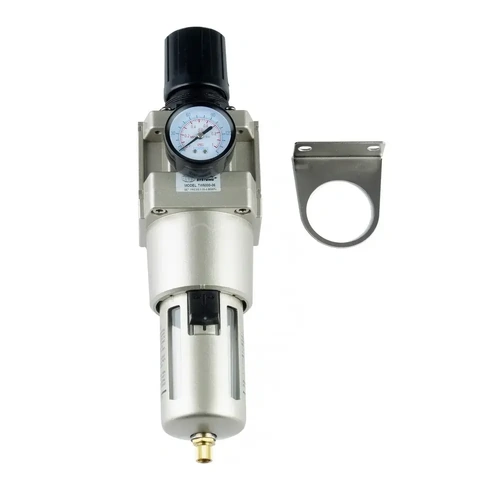

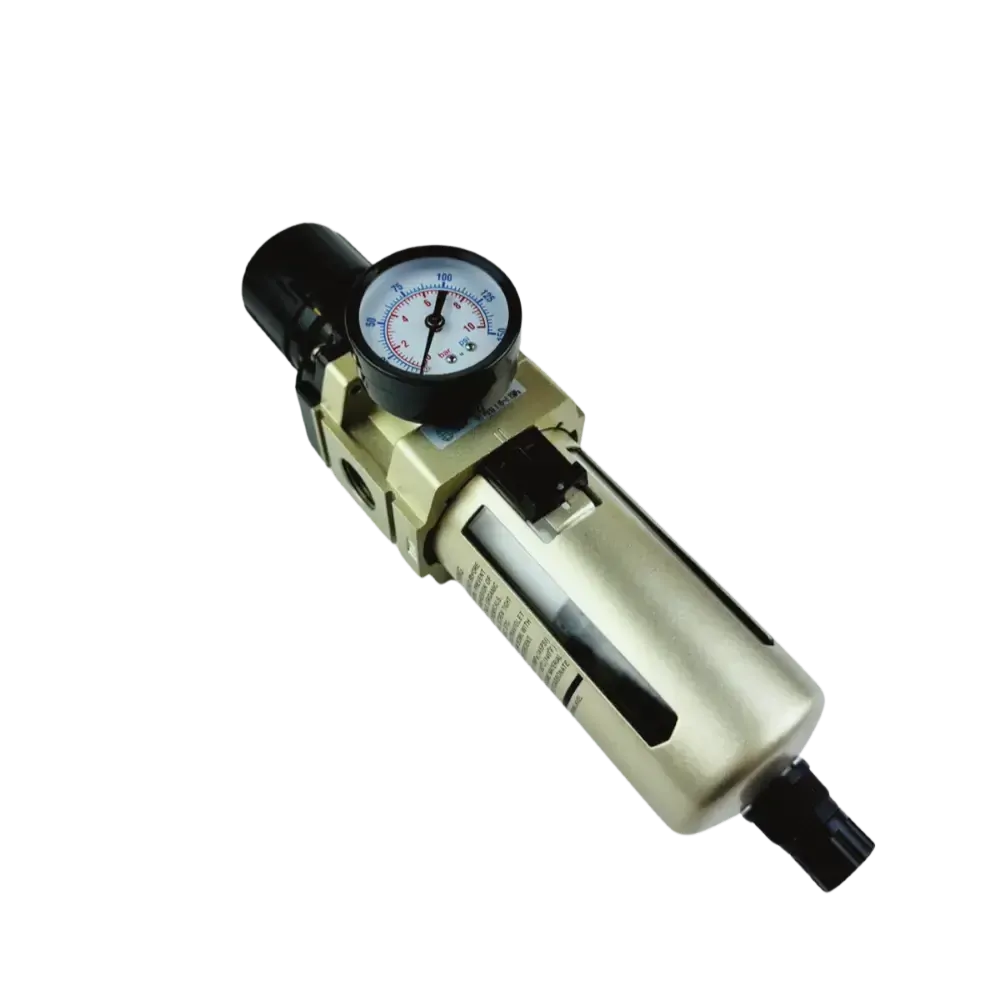

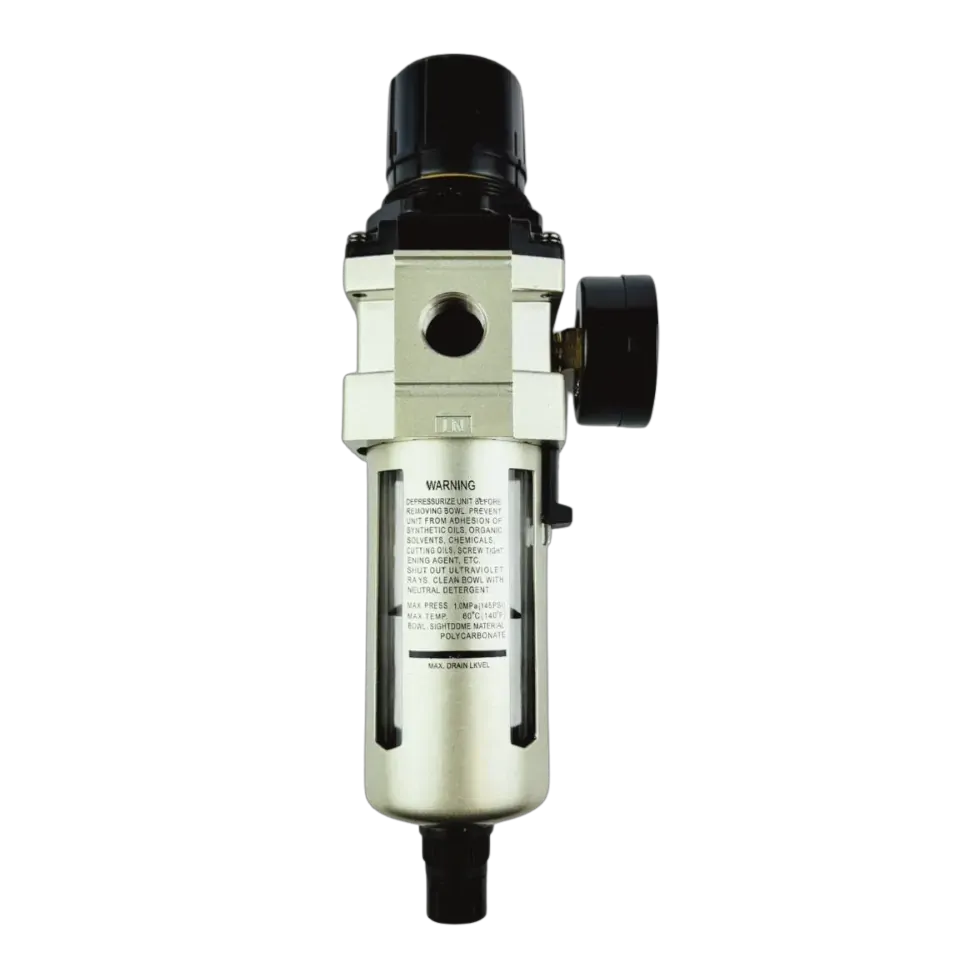

SKU: FRE

Filter Regulator

From $44.00

Inc GST
In Stock
Make an Enquiry

This unit is probably the most popular air service unit sold as it has both a regulator (allows you to set the downstream air pressure) and a filter (cleans the air) in the one combined unit. *Please note that you need a 2 Bar differential (30psi) to seat the drain to the filter upon start up (not suitable for low pressure applications).

Specification FRE-02 FRE-03 FRE-04 FRE-05 FRE-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min 550 2000 4000 5000 5000
Pressure Range 2 to 8.5 Bar
Max Inlet Pressure 10 Bar
Medium Temperature 0 to 60°C
Media Air
Filtration 5µm
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Construction Relief Type
Gauge Port Size G1/8” G1/4”
Replacement Element SP-FRE-02 SP-FRE-03 SP-FRE-04 SP-FRE-05

Air Filter Regulator Dimensions

Model A B C D E F G H I J K N Auto Drain B
FRE-02 40 187.5 78 2.3 34 5.4 G1/4” 15.4 57 30 45 33.5 187.5
FRE-03 53 211 92 2.3 40 6.5 G3/8” 8 61 41 46 42.5 248.5
FRE-04 70 263 112 2.3 54 8.5 G1/2” 10.5 70.5 50 54 52.5 300
FRE-05 70 263 112 2.3 54 8.5 G3/4” 10.5 70.5 50 54 52.5 304
FRE-06 90 312 114 3.2 66 11 G1” 13 70.5 70 66 52.5 349
All dimensions in mm unless shown otherwise.



Size 1/4" to 1" BSP
Function Filter Regulator with auto drain
Body Die Cast Aluminium
Pressure Range 0.5 to 8.5 BAR
Media Air

FRE

Filter Regulator

Features:

Size 1/4" to 1" BSP
Function Filter Regulator with auto drain
Body Die Cast Aluminium
Pressure Range 0.5 to 8.5 BAR
Media Air

Description:

This unit is probably the most popular air service unit sold as it has both a regulator (allows you to set the downstream air pressure) and a filter (cleans the air) in the one combined unit. *Please note that you need a 2 Bar differential (30psi) to seat the drain to the filter upon start up (not suitable for low pressure applications).

Specification FRE-02 FRE-03 FRE-04 FRE-05 FRE-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min 550 2000 4000 5000 5000
Pressure Range 2 to 8.5 Bar
Max Inlet Pressure 10 Bar
Medium Temperature 0 to 60°C
Media Air
Filtration 5µm
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Construction Relief Type
Gauge Port Size G1/8” G1/4”
Replacement Element SP-FRE-02 SP-FRE-03 SP-FRE-04 SP-FRE-05
.

Filter Regulator

FRE

Dimensions:

Air Filter Regulator Dimensions

Model A B C D E F G H I J K N Auto Drain B
FRE-02 40 187.5 78 2.3 34 5.4 G1/4” 15.4 57 30 45 33.5 187.5
FRE-03 53 211 92 2.3 40 6.5 G3/8” 8 61 41 46 42.5 248.5
FRE-04 70 263 112 2.3 54 8.5 G1/2” 10.5 70.5 50 54 52.5 300
FRE-05 70 263 112 2.3 54 8.5 G3/4” 10.5 70.5 50 54 52.5 304
FRE-06 90 312 114 3.2 66 11 G1” 13 70.5 70 66 52.5 349
All dimensions in mm unless shown otherwise.



WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
