SKU: FRL

Filter, Regulator & Lubricator

From $71.50

Inc GST
In Stock
Make an Enquiry

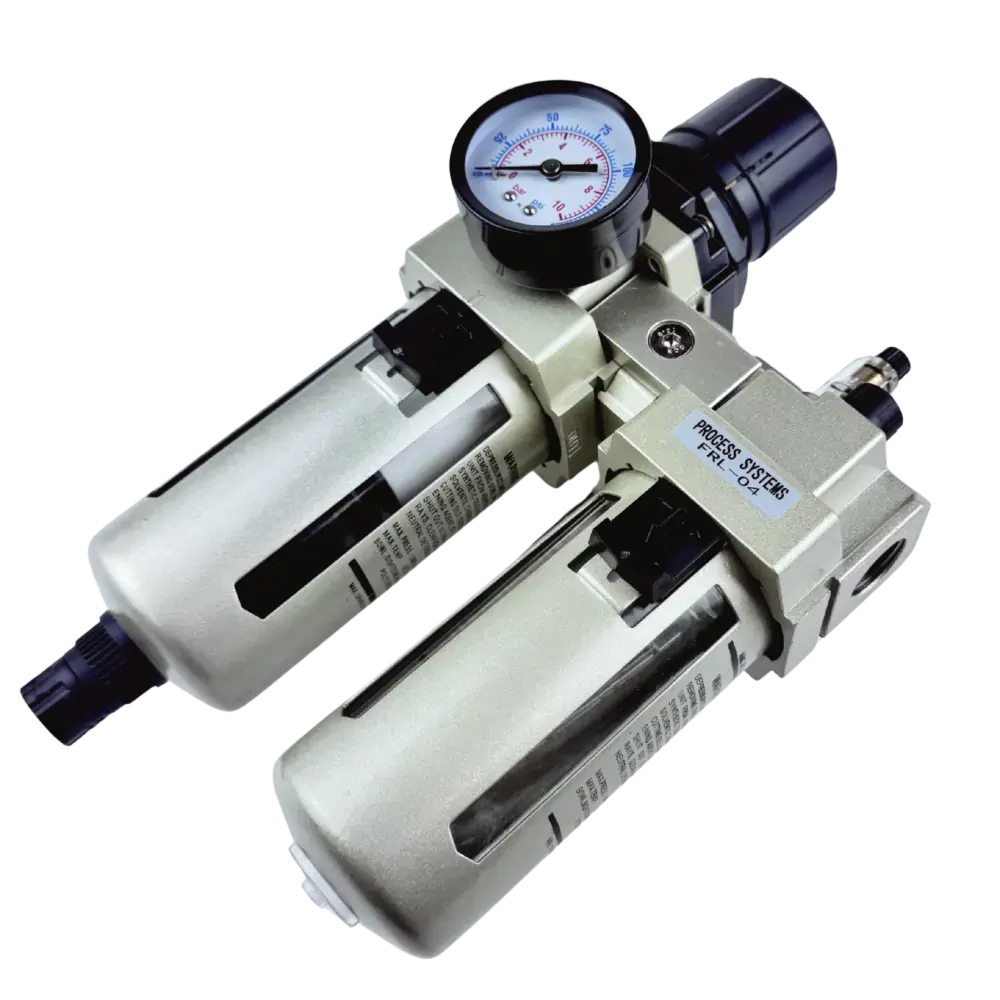

This combo unit combines a filter regulator and a lubricator into the one unit. The first part is the filter regulator where the air pressure is set and the air is cleaned. It then runs through the lubricator which will introduce lubrication into the line through the use of a venturi.

Specification FRL-02 FRL-03 FRL-04 FRL-05 FRL-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min 500 1700 3000 4000 4000
Applicable Medium Air
Medium Temperature 0 to 60°C
Filtration 5µm
Maximum Inlet Pressure 9 Bar (130 PSI)
Regulated Pressure 0.5 to 8.5 Bar (8 PSI to 123 PSI)
Bowl Material Polycarbonate
Recommended Lubricant ISOVG32 or Equivalent
Bowl Guard Standard
Regulator Construction Relieving Type
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Gauge Port Size G1/8” G1/4”

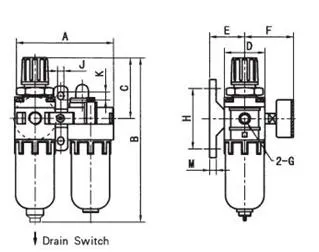

Airline Filter Regulator & Lubricator

Model A B C D E F G H K J M Auto Drain B
FRL-02 90 165 78 40 57 30 G1/4 48 8.5 5.5 5 187.5
FRL-03 117 211 92 53 61 41 G3/8 70 11 7 7 248.5
FRL-04 154 263 112 70 70.5 50 G1/2 80 11 9 7 300
FRL-05 154 263 112 70 70.5 50 G3/4 80 11 9 7 304
FRL-06 198 312 114 90 70.5 70 G1 80 13 10 10 349
All dimensions in mm unless shown otherwise.

Size 1/4" to 1" BSP
Function Filter, Regulator & Lubricator combo unit
Body Die Cast Aluminium
Pressure Range 0.5 to 8.5 BAR
Media Air

.
.
