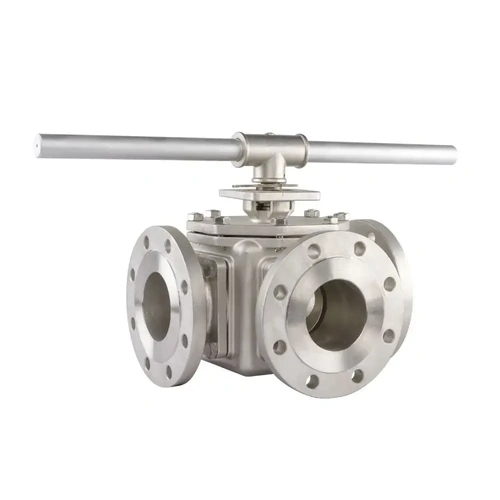

SKU: BLS3FA

Flanged 3 Way Stainless Steel

From $176.00

Inc GST
In Stock
Make an Enquiry
  • Three way ANSI 150 Flanged 316 Stainless Steel Ball Valve
  • L or T port configuration
  • Reinforced PTFFE seats
  • Live Loaded Packing & Anti Static Device
  • ISO5211 mounting pad
  • Full Bore
  • Tested to API598
  • Lever or Gear Box Operation
Model DN (mm) L port CV T port CV (Through) T port CV (Branch) Media Pressure Media Temperature Torque (Nm)
BLS3L4FA-L-RT 15 6 10 5 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 9
BLS3L5FA-L-RT 20 15 21 13 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 13
BLS3L6FA-L-RT 25 27 36 22 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 18
BLS3L7FA-L-RT 32 28 58 25 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 31
BLS3L8FA-L-RT 40 65 90 55 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 48
BLS3L9FA-L-RT 50 120 175 100 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 70
BLS3L10FA-L-RT 65 175 235 149 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 98
BLS3L11FA-L-RT 80 300 450 270 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 128
BLS3L12FA-L-RT 100 353 800 475 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 185



L Port T Port

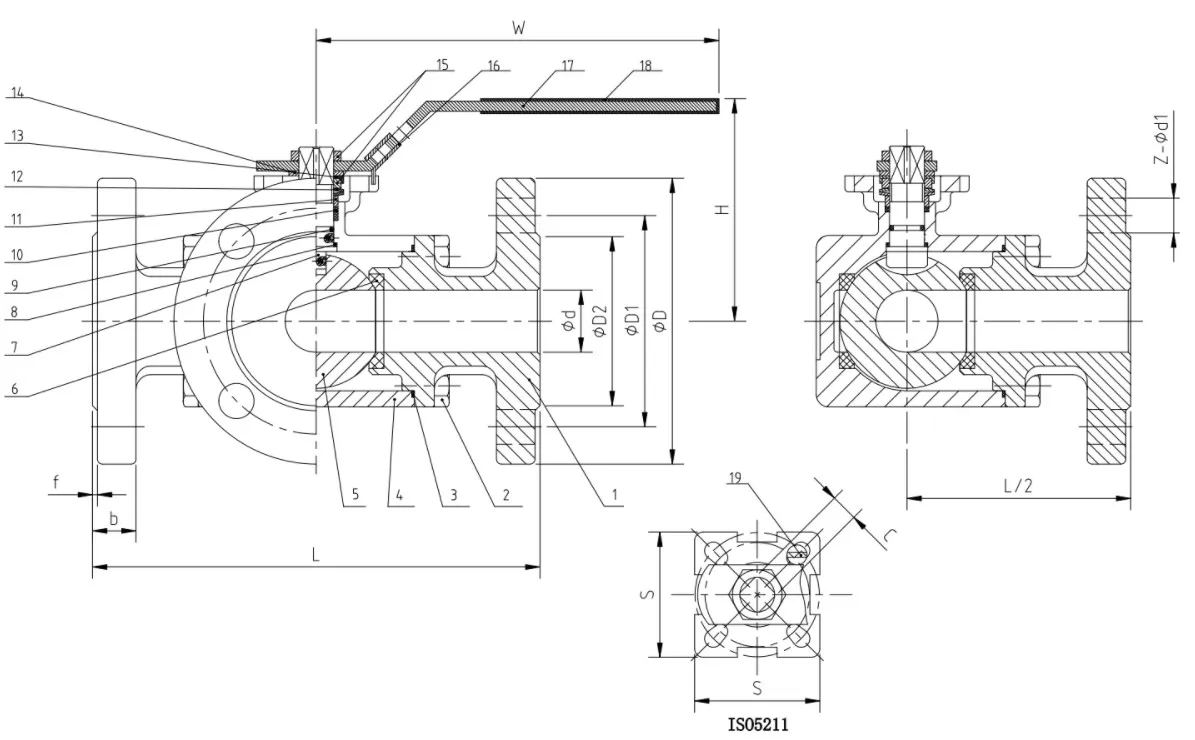

Size d L D D1 D2 b f H W C ISO5211 Z- Ød1 h s
1/2" 15 152 89 60.5 35 11 2 77 130 9 F03/F04 4-15 48 42.6
3/4" 20 167 98 70 43 11 2 84 161 11 F04/F05 4-15 53 50.4
1" 25 180 108 79.5 51 12 2 93 163 11 F04/F05 4-15 58.5 50.4
1-1/4" 32 190 117 89 64 13 2 113 209 14 F05/F07 4-15 71 66.5
1-1/2" 40 212 127 98.5 73 15 2 121 209 14 F05/F07 4-15 77.5 66.5
2" 49 230 152 120.5 92 16 2 126 209 14 F05/F07 4-19 85 66.5
2-1/2" 62 290 178 139.5 105 18 2 175 450 17 F07/F10 4-19 110 93.6
3" 75 310 190 152.5 127 19 2 188 500 17 F07/F10 4-19 122.5 93.6
4" 99 350 229 190.5 157 24 2 211 550 17 F07/F10 8-19 145.5 93.6

All dimensions in mm unless specified otherwise

Item Parts Material Qty
1 Cap CF8M 3
2 Bolt SS304 12
3 Body Gasket PTFE 3
4 Body Gasket CF8M 1
5 Ball SS316 1
6 Ball Seat R-PTFE(15%) 4
7 Stem SS316 1
8 Thrust Washer PTFE 1
9 O-Ring Viton 1
10 Stem Packing PTFE 1
Item Parts Material Qty
11 Packing Ring SS304 1
12 Bellevile Washer SS301 2
13 Nut Stopper SS304 1
14 Plate Washer SS304 1
15 Nut SS304 2
16 Lock Device SS304 1
17 Handle SS304 1
18 Plastic Cover Plastic 1
19 Stop Pin SS304 1



Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE

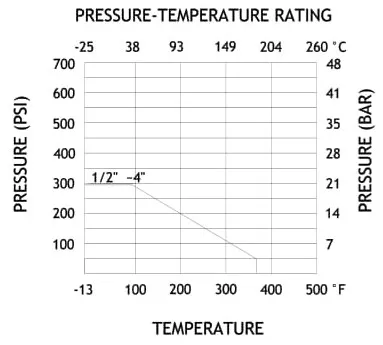

Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Lockable Lever or Gear Box

BLS3FA

Flanged 3 Way Stainless Steel

Features:

Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Lockable Lever or Gear Box

Description:

  • Three way ANSI 150 Flanged 316 Stainless Steel Ball Valve
  • L or T port configuration
  • Reinforced PTFFE seats
  • Live Loaded Packing & Anti Static Device
  • ISO5211 mounting pad
  • Full Bore
  • Tested to API598
  • Lever or Gear Box Operation
Model DN (mm) L port CV T port CV (Through) T port CV (Branch) Media Pressure Media Temperature Torque (Nm)
BLS3L4FA-L-RT 15 6 10 5 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 9
BLS3L5FA-L-RT 20 15 21 13 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 13
BLS3L6FA-L-RT 25 27 36 22 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 18
BLS3L7FA-L-RT 32 28 58 25 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 31
BLS3L8FA-L-RT 40 65 90 55 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 48
BLS3L9FA-L-RT 50 120 175 100 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 70
BLS3L10FA-L-RT 65 175 235 149 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 98
BLS3L11FA-L-RT 80 300 450 270 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 128
BLS3L12FA-L-RT 100 353 800 475 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C 185



L Port T Port

.

Flanged 3 Way Stainless Steel

BLS3FA

Dimensions:

Size d L D D1 D2 b f H W C ISO5211 Z- Ød1 h s
1/2" 15 152 89 60.5 35 11 2 77 130 9 F03/F04 4-15 48 42.6
3/4" 20 167 98 70 43 11 2 84 161 11 F04/F05 4-15 53 50.4
1" 25 180 108 79.5 51 12 2 93 163 11 F04/F05 4-15 58.5 50.4
1-1/4" 32 190 117 89 64 13 2 113 209 14 F05/F07 4-15 71 66.5
1-1/2" 40 212 127 98.5 73 15 2 121 209 14 F05/F07 4-15 77.5 66.5
2" 49 230 152 120.5 92 16 2 126 209 14 F05/F07 4-19 85 66.5
2-1/2" 62 290 178 139.5 105 18 2 175 450 17 F07/F10 4-19 110 93.6
3" 75 310 190 152.5 127 19 2 188 500 17 F07/F10 4-19 122.5 93.6
4" 99 350 229 190.5 157 24 2 211 550 17 F07/F10 8-19 145.5 93.6

All dimensions in mm unless specified otherwise

.

Flanged 3 Way Stainless Steel

BLS3FA

Construction:

Item Parts Material Qty
1 Cap CF8M 3
2 Bolt SS304 12
3 Body Gasket PTFE 3
4 Body Gasket CF8M 1
5 Ball SS316 1
6 Ball Seat R-PTFE(15%) 4
7 Stem SS316 1
8 Thrust Washer PTFE 1
9 O-Ring Viton 1
10 Stem Packing PTFE 1
Item Parts Material Qty
11 Packing Ring SS304 1
12 Bellevile Washer SS301 2
13 Nut Stopper SS304 1
14 Plate Washer SS304 1
15 Nut SS304 2
16 Lock Device SS304 1
17 Handle SS304 1
18 Plastic Cover Plastic 1
19 Stop Pin SS304 1
