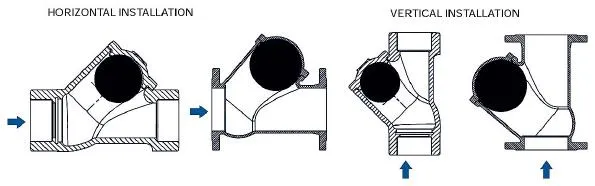

Features:
Size 50mm to 300mm
Flange AS4087 PN16 / AS2129 Table E
Body FBE Coated Ductile Iron
Ball NBR Coated
Pressure Range 0 to 16 BAR
Temperature 0 to 80°C
Model | DN | L | D | D1 | D2 | n-d | b | H |
---|---|---|---|---|---|---|---|---|
BCV-050 | 50 | 200 | 165 | 114 | 102 | 4-18 | 19 | 100 |
BCV-065 | 65 | 240 | 185 | 127 | 122 | 4-18 | 19 | 125 |
BCV-080 | 80 | 260 | 200 | 146 | 138 | 4-18 | 19 | 136 |
BCV-100 | 100 | 300 | 220 | 178 | 158 | 8-18 | 19 | 185 |
BCV-125 | 125 | 350 | 250 | 210 | 188 | 8-18 | 19 | 196 |
BCV-150 | 150 | 400 | 285 | 235 | 212 | 8-18 | 19 | 265 |
BCV-200 | 200 | 500 | 340 | 292 | 268 | 8-18 | 20 | 340 |
BCV-250 | 250 | 600 | 405 | 356 | 320 | 12-22 | 22 | 420 |
BCV-300 | 300 | 700 | 460 | 406 | 378 | 12-22 | 24.5 | 480 |

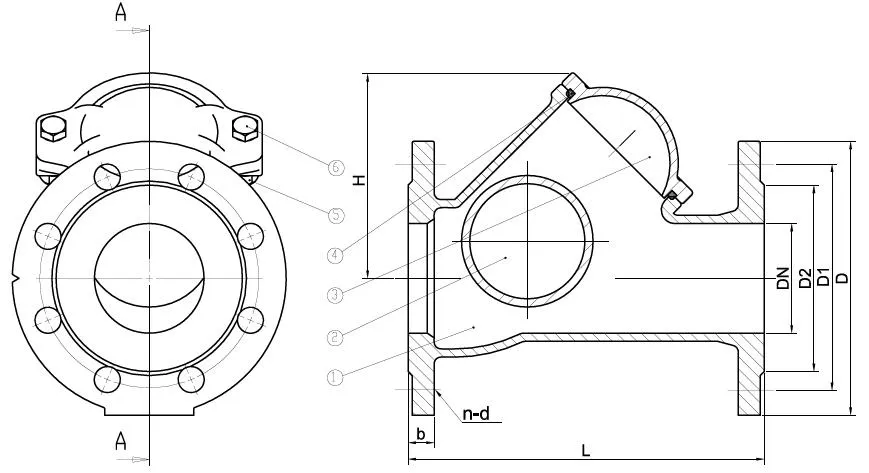

All dimensions in mm unless shown otherwise.
Number | Item | Material |
---|---|---|
1 | Body | DI GGG50 |
2 | Ball | Steel + NBR |
3 | Bonnet | DI GGG50 |
4 | Bonnet Gasket | NBR |
5 | Bolt | 316SS |
6 | Nut | 304SS |
