Features:
Size 20mm Flanged
Mount Top and Bottom
Orientation The one unit can be easily changed to left or right
Body Bronze
Pressure 17 BAR
Temperature 0°C to 225°C

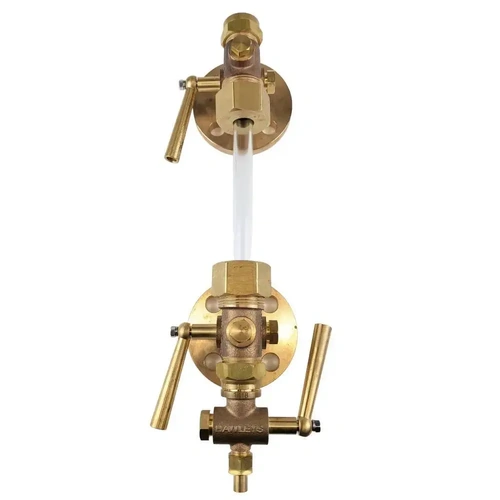

Bronzed Flange Boiler Gauge Mount
Working Pressure | 0 to 17 Bar |
---|---|
Static Test Pressure | 34 Bar |
Temperature Range | 0°C to 225°C |
Made To | AS 1271-1997 |
Body | Bronze |
All Dimensions in mm unless stated otherwise
Item | Description | Material |
---|---|---|
1 | Mount Body | Bronze |
2 | Glass Tightening Nut | Brass |
3 | Gland Ring | Brass |
4 | Gauge Cone | EPDM |
5 | Neck Bush | Brass |
6 | AB12 Spindle | 316SS |
7 | AB12 Graphite Sleeve | Graphite |
8 | Sleeve Plug | Brass |
9 | Handle | Brass |
10 | Spindle Washer | 304 SS |
11 | Spindle Nut | 304 SS |
12 | Cleaning Plug | Brass |
13 | Safety Ball | 316 SS |
14 | Check Plug | Brass |
15 | Crimp Nut & Blanking Nut | Brass |
16 | Blanking Plug | Brass |
17 | Tail Pipe | Brass |
18 | Tail Pipe Nut | Brass |
