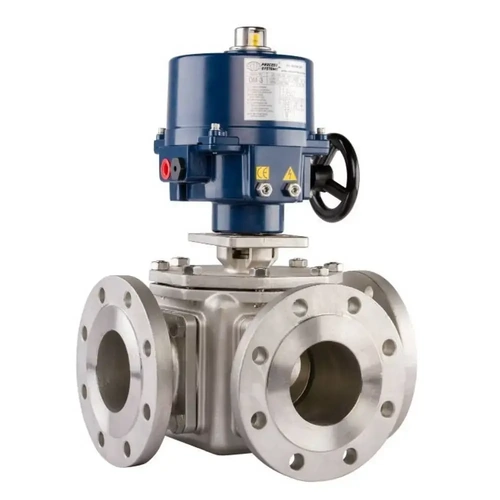

Flanged Electric 3 Way Stainless Steel

From $907.50

Inc GST
In Stock
Make an Enquiry
  • Three way ANSI 150 Flanged 316 Stainless Steel Electric Ball Valve
  • L or T port configuration
  • IP67 Electric Actuator
  • Manual Override, Extra limit switches & visual indicator
  • Reinforced PTFE seats
  • Tested to API598
Model DN (mm) Actuator Media Pressure Media Temperature
BLS3L4FA-E*-RT 15 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5FA-E*-RT 20 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6FA-E*-RT 25 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7FA-E*-RT 32 0M-A Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8FA-E*-RT 40 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9FA-E*-RT 50 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10FA-E*-RT 65 0M-3 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11FA-E*-RT 80 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L12FA-E*-RT 100 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. Change the 'L' (L port) to a 'T' (T port) as required.

L Port T Port

Electric Flanged 3 way stainless steel ball valve

DN Actuator A B C D F G H L T
15 0M-1 108 155 60.5 89 2 35 199.5 152 11
20 0M-1 108 155 70 98 2 43 204 167 11
25 0M-1 108 155 79.5 108 2 51 209 180 12
32 0M-A 108 200 89 117 2 64 258.5 190 13
40 0M-2 200 290 98.5 127 2 73 353.5 212 15
50 0M-2 200 290 120.5 152 2 92 366 230 16
65 0M-3 200 290 139.5 178 2 105 379 290 18
80 0M-4 234 315 152.5 190.5 2 127 410.25 310 19
100 0M-4 234 315 190.5 229 2 157 429.5 350 24

All dimensions in mm unless shown otherwise.

Electric Stainless Steel 3 way flanged ball valve

Number Item Material
1 Flanged End CF8M
2 Seat Reinforced PTFE
3 Ball ASTM A182 316
4 Body ASTM A351 CF8M
5 Shaft ASTM A276 316
6 Thrust Washer SS201
7 Chevron Packing PTFE
8 Shaft Seal Oring Viton
9 Belleville Washers SS201
10 Retaining Nut SS304
11 Conduit Entry Powder coated Aluminium
12 Screw SS316
13 Shaft Seal Viton
14 Cap Gasket PTFE
15 Indicator Metal/Polycarbonate
16 Actuator Body Powder coated Aluminium
18 Bonnet ASTM A351 CF8M

Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Electric

Others Also Bought

BLS3FAE

Flanged Electric 3 Way Stainless Steel

Features:

Size 15mm to 100mm
Body 316 Stainless Steel
Seat RPTFE
Pressure 20 BAR @ ambient
Temperature -10°C to 180°C
Actuation Electric

Description:

  • Three way ANSI 150 Flanged 316 Stainless Steel Electric Ball Valve
  • L or T port configuration
  • IP67 Electric Actuator
  • Manual Override, Extra limit switches & visual indicator
  • Reinforced PTFE seats
  • Tested to API598
Model DN (mm) Actuator Media Pressure Media Temperature
BLS3L4FA-E*-RT 15 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L5FA-E*-RT 20 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L6FA-E*-RT 25 0M-1 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L7FA-E*-RT 32 0M-A Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L8FA-E*-RT 40 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L9FA-E*-RT 50 0M-2 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L10FA-E*-RT 65 0M-3 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L11FA-E*-RT 80 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C
BLS3L12FA-E*-RT 100 0M-4 Vacuum (29" Hg) to 20 Bar (10 Bar Steam) -20°C to 180°C

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. Change the 'L' (L port) to a 'T' (T port) as required.

L Port T Port
.

Flanged Electric 3 Way Stainless Steel

BLS3FAE

Dimensions:

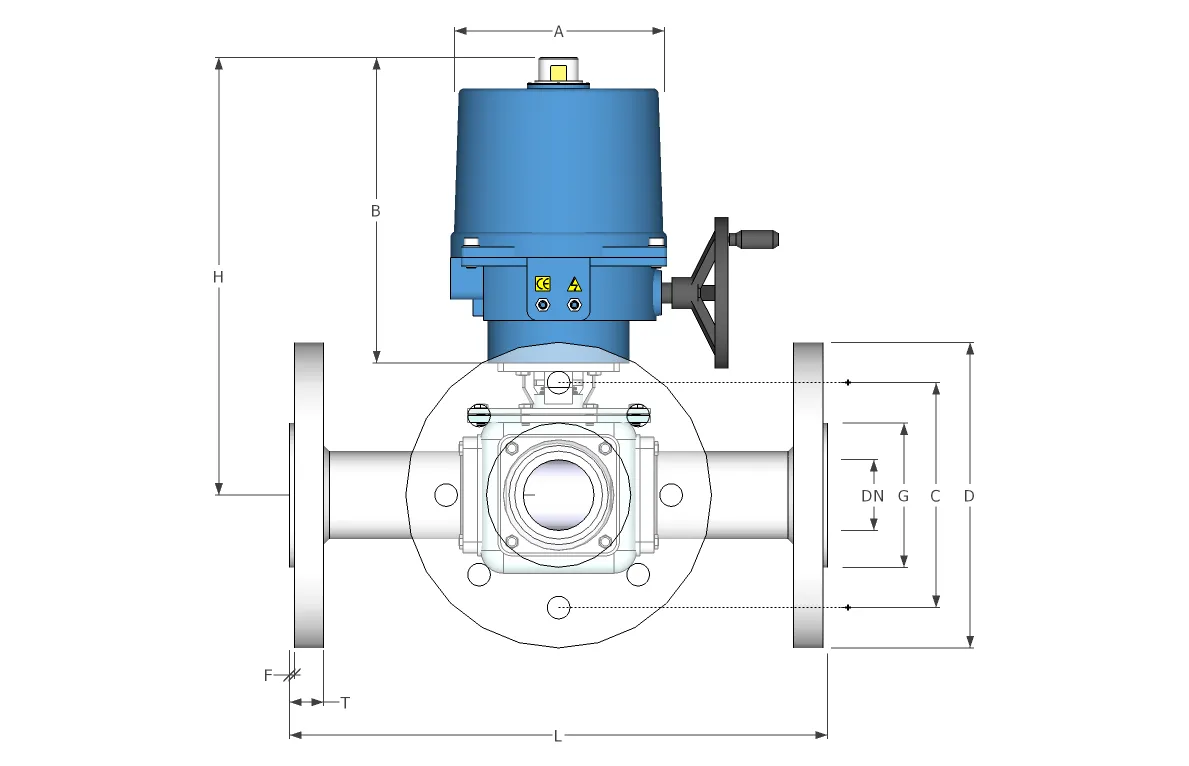

Electric Flanged 3 way stainless steel ball valve

DN Actuator A B C D F G H L T
15 0M-1 108 155 60.5 89 2 35 199.5 152 11
20 0M-1 108 155 70 98 2 43 204 167 11
25 0M-1 108 155 79.5 108 2 51 209 180 12
32 0M-A 108 200 89 117 2 64 258.5 190 13
40 0M-2 200 290 98.5 127 2 73 353.5 212 15
50 0M-2 200 290 120.5 152 2 92 366 230 16
65 0M-3 200 290 139.5 178 2 105 379 290 18
80 0M-4 234 315 152.5 190.5 2 127 410.25 310 19
100 0M-4 234 315 190.5 229 2 157 429.5 350 24

All dimensions in mm unless shown otherwise.

.

Flanged Electric 3 Way Stainless Steel

BLS3FAE

Construction:

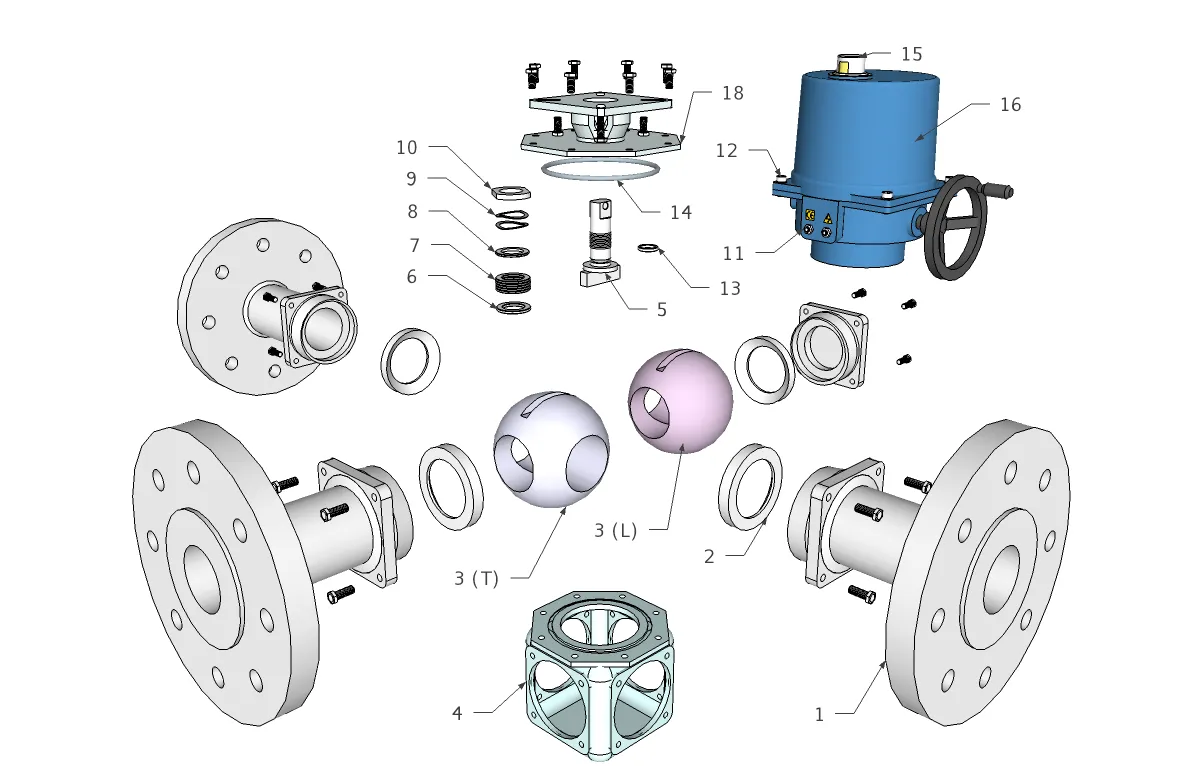

Electric Stainless Steel 3 way flanged ball valve

Number Item Material
1 Flanged End CF8M
2 Seat Reinforced PTFE
3 Ball ASTM A182 316
4 Body ASTM A351 CF8M
5 Shaft ASTM A276 316
6 Thrust Washer SS201
7 Chevron Packing PTFE
8 Shaft Seal Oring Viton
9 Belleville Washers SS201
10 Retaining Nut SS304
11 Conduit Entry Powder coated Aluminium
12 Screw SS316
13 Shaft Seal Viton
14 Cap Gasket PTFE
15 Indicator Metal/Polycarbonate
16 Actuator Body Powder coated Aluminium
18 Bonnet ASTM A351 CF8M
