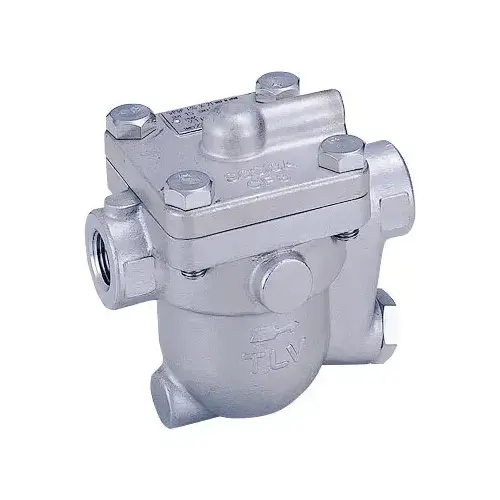

Free Float Steam Trap

Includes Three-Point Seating and Thermostatic Air Vent

POA (Price on Application)

In Stock
Make an Enquiry

The TLV Free Float Steam Traps are a Float type steam trap that utilise a floating ball as the only moving part internally. The reduction of the moving parts reduces the commonly faced problems that can be encountered with traditional mechanical style Steam Traps. The self modulating free float provides continuous, smooth, low velocity condensate discharge as process loads vary. This is acheived through a precision ground float, constant water seal and a three-point seating design. The addition of the Thermostatic capsule with "fail open" feature vents air automatically until close to steam temperature.

Item Detail
Size (mm) 15, 20 ,25
Orifice No. 2, 5, 10, 14, 21
Maximum Operating Pressure (MPaG) PMO 0.2, 0.5, 1.0, 1.4, 2.1
Maximum Differential Pressure (MPa) ΔPMX 0.2, 0.5, 1.0, 1.4, 2.1
Minimum Operating Pressure (MPaG) 0.01
Maximum Operating Temperature (°C) 220

Please note due to agency restricitions with TLV we are unable to offer these products over our website. Please contact us with your requirements and we will offer selected models from the TLV range.

Size L H H1 W Weight (kg)
15 120 119 75 80 2.5
20 72.5 2.6
25 126 75 2.8

No Description Material Grade
1 Body Cast Stainless Steel A351 Gr. CF8
2 Cover Cast Stainless Steel A351 Gr. CF8
3 Float Stainless Steel AISI316L
4 Orifice Plug Cast Stainless Steel A351 Gr. CF8
5 Orifice Plug Gasket Stainless Steel AISI316L
6 Orifice -
7 Orifice Gasket Stainless Steel AISI316L
8 Screen inside/outside Stainless Steel AISI430/304
9 Cover Gasket Fluorine Resin PTFE
10 Nameplate Stainless Steel AISI304
11 Float Cover Stainless Steel AISI304
12 X-element Guide Stainless Steel AISI304
13 X-element Stainless Steel -
14 Spring Clip Stainless Steel AISI304
15 Air Vent Valve Seat Stainless Steel AISI420F
16 Connector Stainless Steel AISI416
17 Cover Bolt Stainless Steel AISI304
19 Drain Plug Gasket Stainless Steel AISI316L
20 Drain Plug Stainless Steel AISI303
  • Shorter start-up time with X-element
  • Improved process heating efficiency
  • High allowable back pressure
  • Continuous condensate discharge
  • Reduced steam losses
  • Ideal for condensate recovery
  • Erosion-resistant desing

J3S-X

Free Float Steam Trap

Features:

  • Shorter start-up time with X-element
  • Improved process heating efficiency
  • High allowable back pressure
  • Continuous condensate discharge
  • Reduced steam losses
  • Ideal for condensate recovery
  • Erosion-resistant desing

Description:

The TLV Free Float Steam Traps are a Float type steam trap that utilise a floating ball as the only moving part internally. The reduction of the moving parts reduces the commonly faced problems that can be encountered with traditional mechanical style Steam Traps. The self modulating free float provides continuous, smooth, low velocity condensate discharge as process loads vary. This is acheived through a precision ground float, constant water seal and a three-point seating design. The addition of the Thermostatic capsule with "fail open" feature vents air automatically until close to steam temperature.

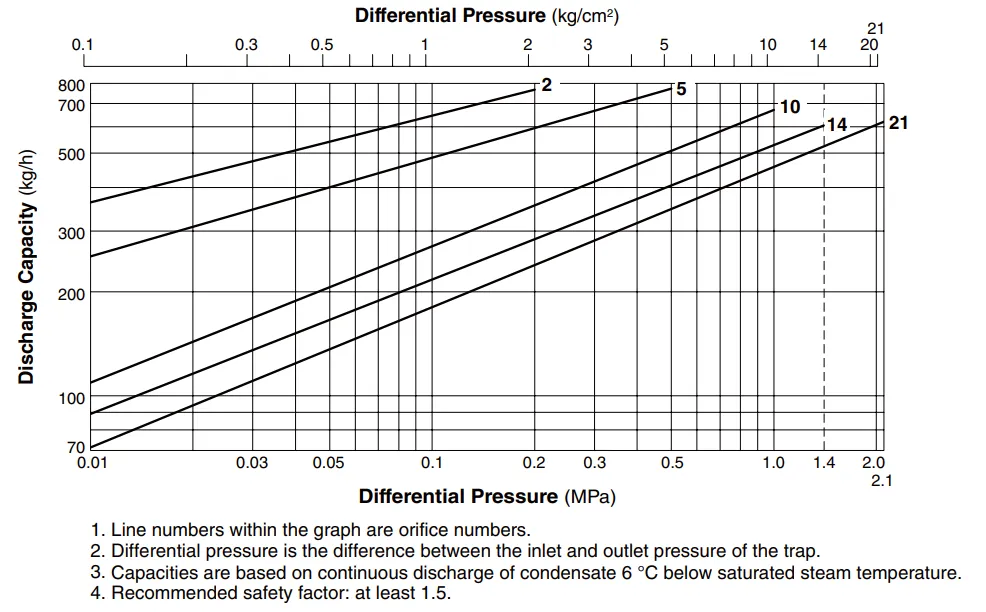

Item Detail
Size (mm) 15, 20 ,25
Orifice No. 2, 5, 10, 14, 21
Maximum Operating Pressure (MPaG) PMO 0.2, 0.5, 1.0, 1.4, 2.1
Maximum Differential Pressure (MPa) ΔPMX 0.2, 0.5, 1.0, 1.4, 2.1
Minimum Operating Pressure (MPaG) 0.01
Maximum Operating Temperature (°C) 220

Please note due to agency restricitions with TLV we are unable to offer these products over our website. Please contact us with your requirements and we will offer selected models from the TLV range.

.

Free Float Steam Trap

J3S-X

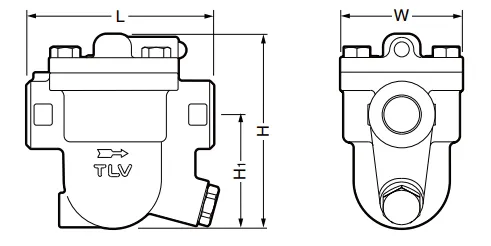

Dimensions:

Size L H H1 W Weight (kg)
15 120 119 75 80 2.5
20 72.5 2.6
25 126 75 2.8
.

Free Float Steam Trap

J3S-X

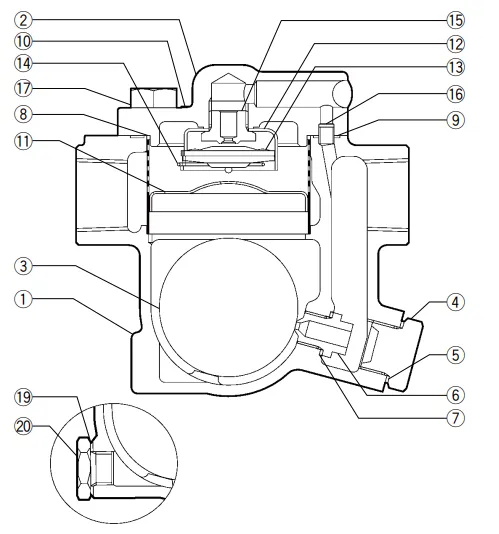

Construction:

No Description Material Grade
1 Body Cast Stainless Steel A351 Gr. CF8
2 Cover Cast Stainless Steel A351 Gr. CF8
3 Float Stainless Steel AISI316L
4 Orifice Plug Cast Stainless Steel A351 Gr. CF8
5 Orifice Plug Gasket Stainless Steel AISI316L
6 Orifice -
7 Orifice Gasket Stainless Steel AISI316L
8 Screen inside/outside Stainless Steel AISI430/304
9 Cover Gasket Fluorine Resin PTFE
10 Nameplate Stainless Steel AISI304
11 Float Cover Stainless Steel AISI304
12 X-element Guide Stainless Steel AISI304
13 X-element Stainless Steel -
14 Spring Clip Stainless Steel AISI304
15 Air Vent Valve Seat Stainless Steel AISI420F
16 Connector Stainless Steel AISI416
17 Cover Bolt Stainless Steel AISI304
19 Drain Plug Gasket Stainless Steel AISI316L
20 Drain Plug Stainless Steel AISI303
