Features:
Function IECex Limit Switch Box
Switches 2 x SPDT
Body Powder Coated Aluminium
IP Rating IP66

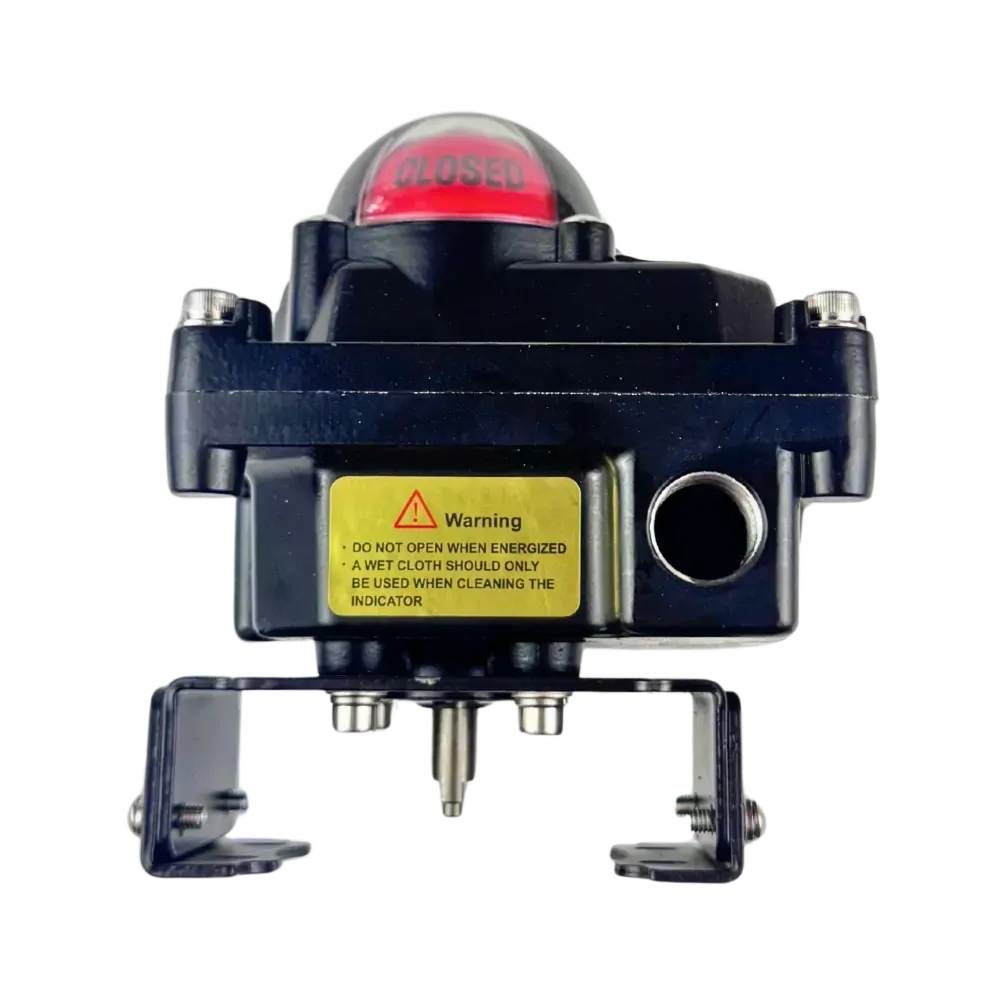

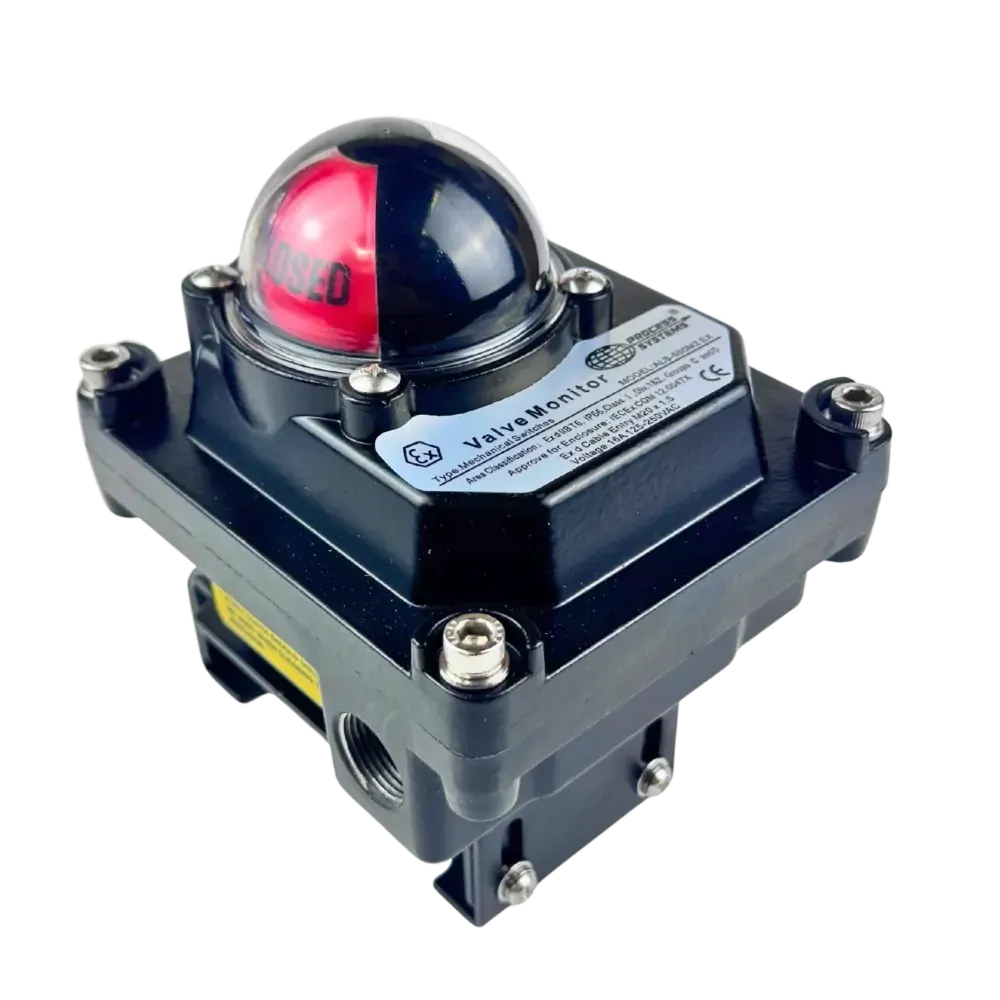

This limit switch box comes with a hazardous area approval. It allows end of stroke (open/closed) feedback for pneumatic actuators in hazardous area environments. It features a raised visual indicator dome, two M20 conduit entries and two mechanical micro switches.
Enclosure | Die cast aluminium or 316 Stainless Steel |
---|---|
Coating | Dichromate conversion with polyester powder coating |
O-Rings | NBR |
Environment | IP66 |
Fasteners | Stainless Steel |
Shaft | Stainless Steel |
Conduit Entries | Two M20 x 1.5 |
Terminal Strip Contacts | 8 |
Mounting Bracket | MB- 3.4:30 x 80, 130 H:20, 30 carbon steel or 316 SS |
Temperature Rating | -20°C to 85°C |
Operating Voltage | Max 15A |
Certifications | IECEx Cert No. IECEx CQM 12.0047X (Ex db IIB T4/T6 Gb IP66), NEPSI Cert No. GYB19.2069X (Ex tD A21 IP67 T80°C) |
Powder coated aluminum body limit switch box.
Two M20x1.5 cable entry. High visability dome indicator.
2 x SPDT 15A 125-250vAC Honywell limit switches for Open/Close indication
Ex d IIC T6 IP66. M20x1.5 connection. -20 to+50deg.C IECEx CQM 12.0047
