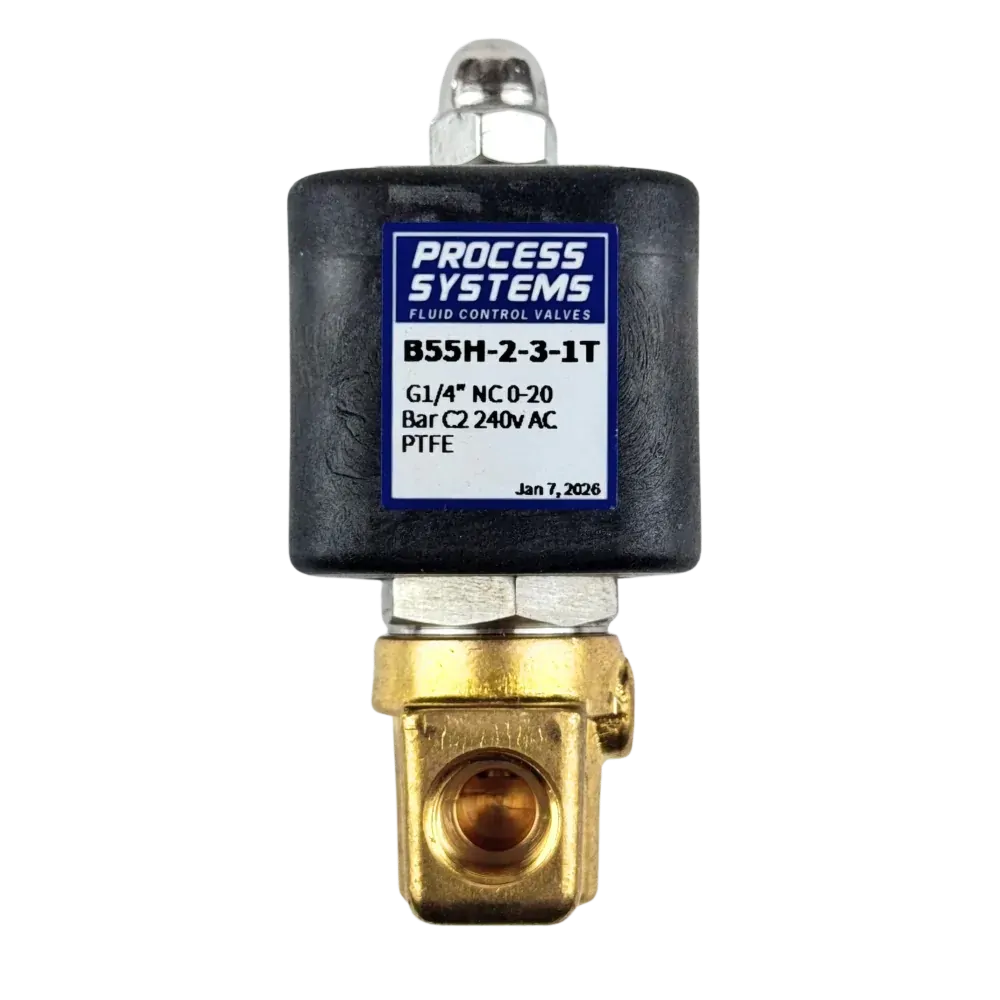

Features:
Size 1/4" BSP only
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body Forged Brass
Seat PTFE or FKM
Pressure Range 0 to 150 BAR
Media Petrochemical
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

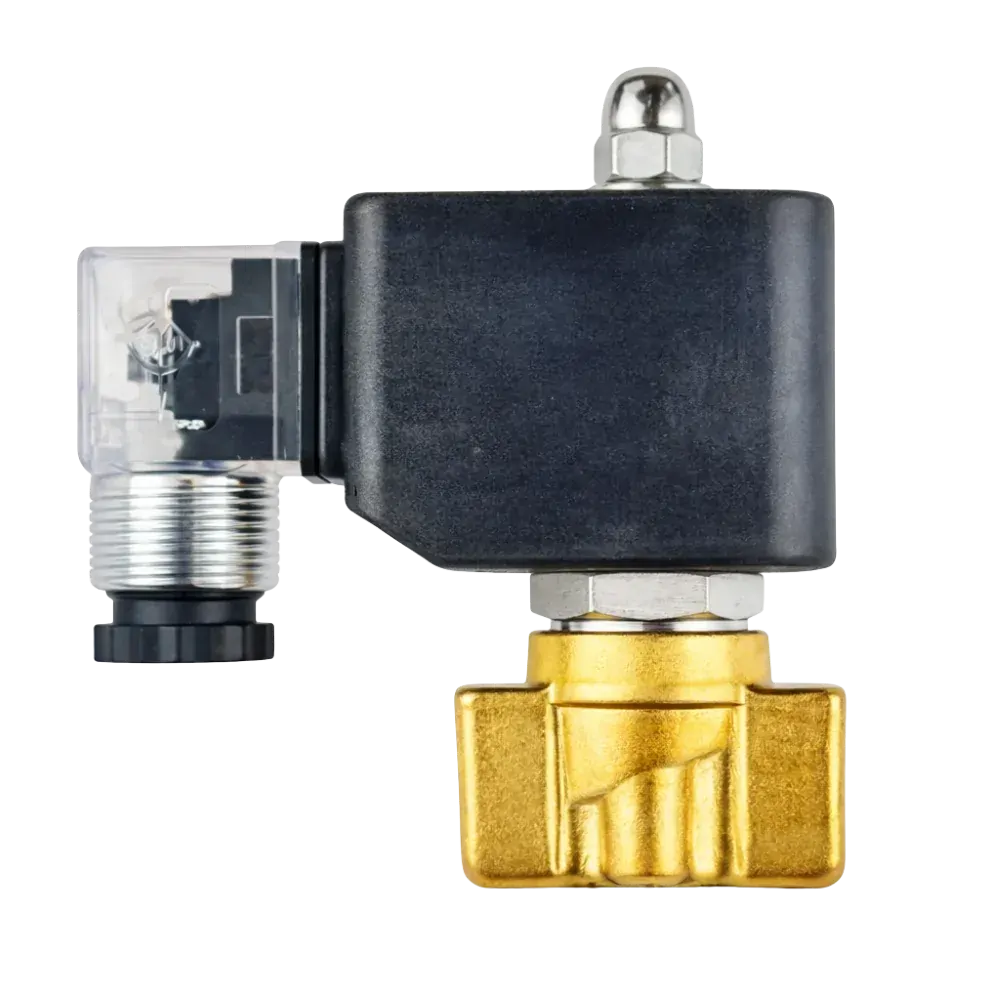

Standard as DIN plug coil but can be supplied with Flying Leads coil upon request
Model | A | B | C | D | E |
---|---|---|---|---|---|
B55H-2-1.2-*T | 41 | 19 | 88 | 10.5 | 15 |
B55H-2-1.6-*T | 41 | 19 | 88 | 10.5 | 15 |
B55H-2-2-*T | 41 | 19 | 88 | 10.5 | 15 |
B55H-2-3-*T | 41 | 19 | 88 | 10.5 | 15 |
B55H-2-4-*T | 41 | 19 | 88 | 10.5 | 15 |
B55H-2-5-*T | 41 | 19 | 88 | 10.5 | 15 |
All dimensions in mm unless shown otherwise.
Item | Article | Material |
---|---|---|
1 | Valve Body | Forged Brass |
2 | Armature | Stainless Steel with Teflon (T) or Viton (V) Seats |
3 | Spring | Stainless Steel |
4 | O Ring | Viton |
5 | Solenoid Tube | Stainless Steel |
6 | Coil Spacer Plate | 304 Stainless Steel |
7 | Hardware | 304 Stainless Steel |
