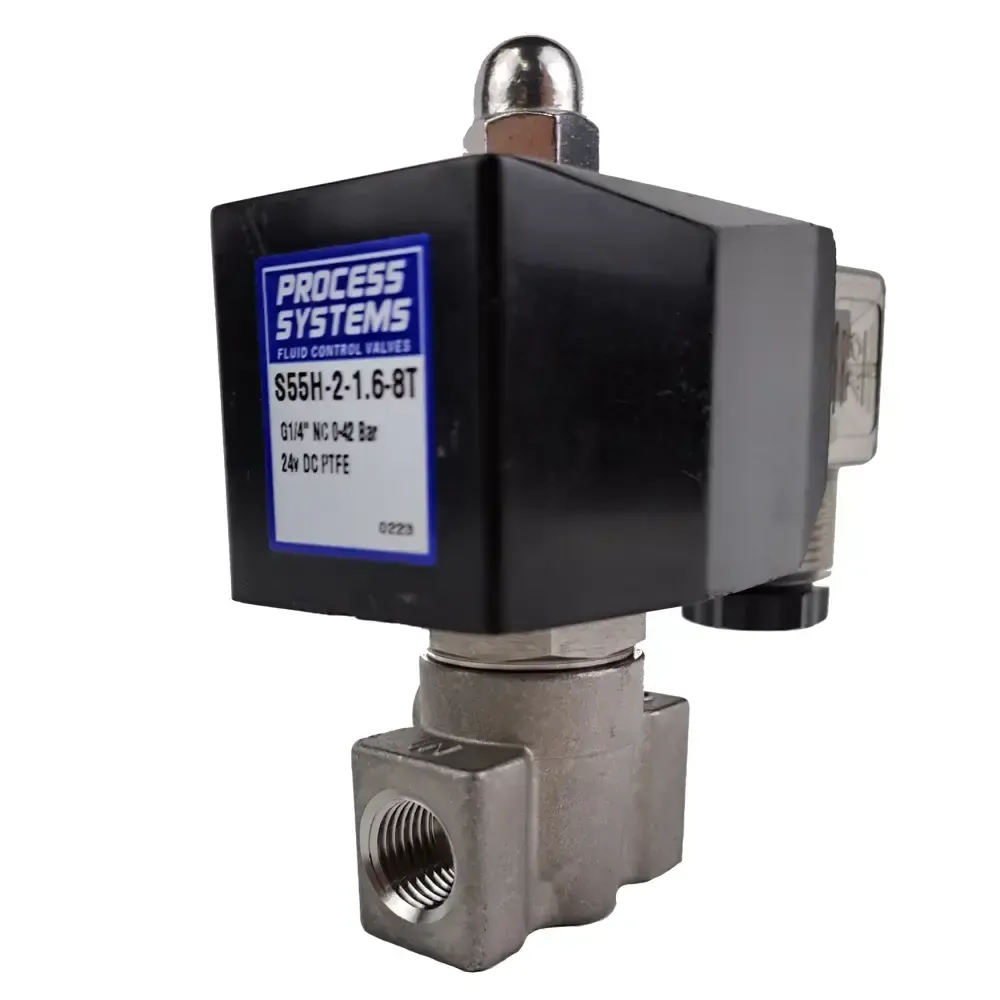

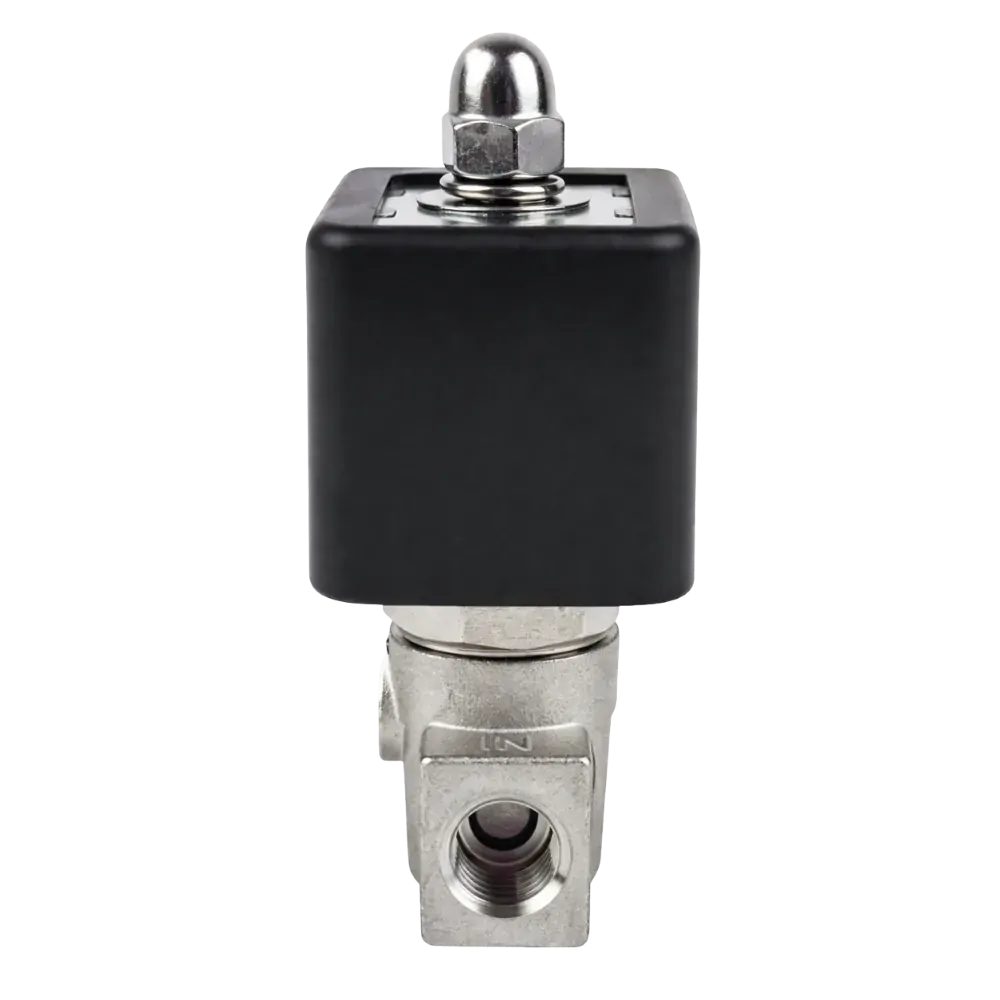

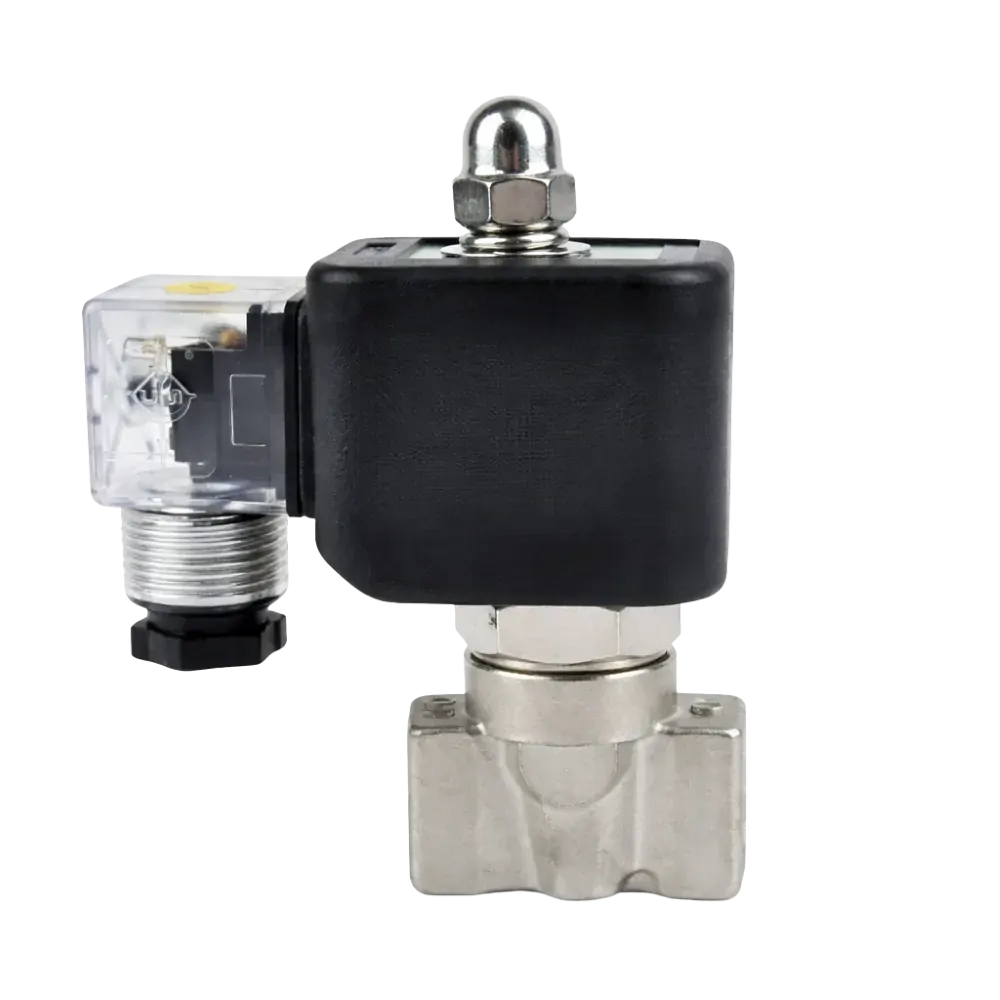

Features:
Size 1/4" BSP only
Function Normally Closed (power to open)
Valve Operation Direct Acting
Body 316 Stainless Steel
Seat PTFE or FKM
Pressure Range 0 to 150 BAR
Media Petrochemical
*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC
Standard as DIN plug coil but can be supplied with Flying Leads coil upon request
For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.
Model | A | B | C | D | E |
---|---|---|---|---|---|
S55H-2-1.2-*T | 41 | 19 | 88 | 10.5 | 15 |
S55H-2-1.6-*T | 41 | 19 | 88 | 10.5 | 15 |
S55H-2-2-*T | 41 | 19 | 88 | 10.5 | 15 |
S55H-2-3-*T | 41 | 19 | 88 | 10.5 | 15 |
S55H-2-4-*T | 41 | 19 | 88 | 10.5 | 15 |
S55H-2-5-*T | 41 | 19 | 88 | 10.5 | 15 |
All dimensions in mm unless shown otherwise.
Item | Article | Material |
---|---|---|
1 | Valve Body | Forged 316 Stainless Steel |
2 | Armature | Stainless Steel with Teflon (T) or Viton (V) Seats |
3 | Spring | Stainless Steel |
4 | O Ring | Viton |
5 | Solenoid Tube | Stainless Steel |
6 | Coil Spacer Plate | 304 Stainless Steel |
7 | Hardware | 304 Stainless Steel |
