SKU: HPR

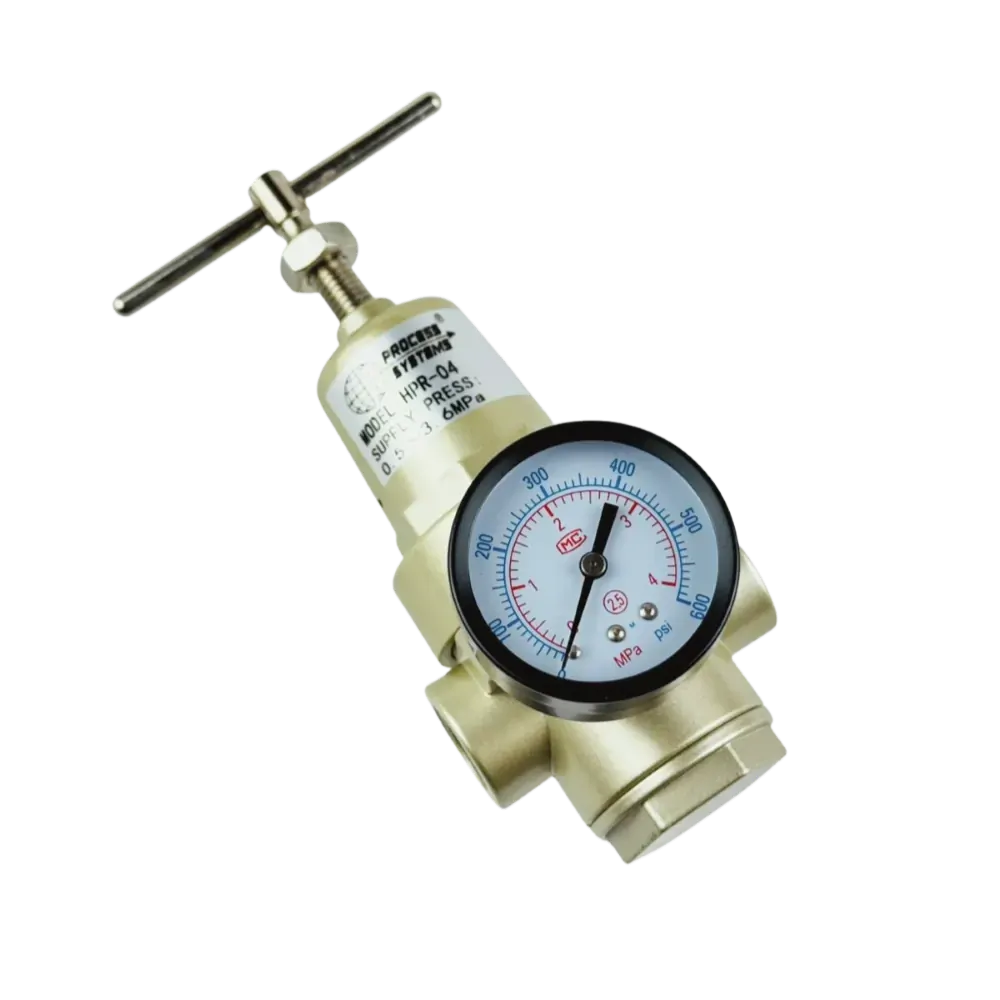

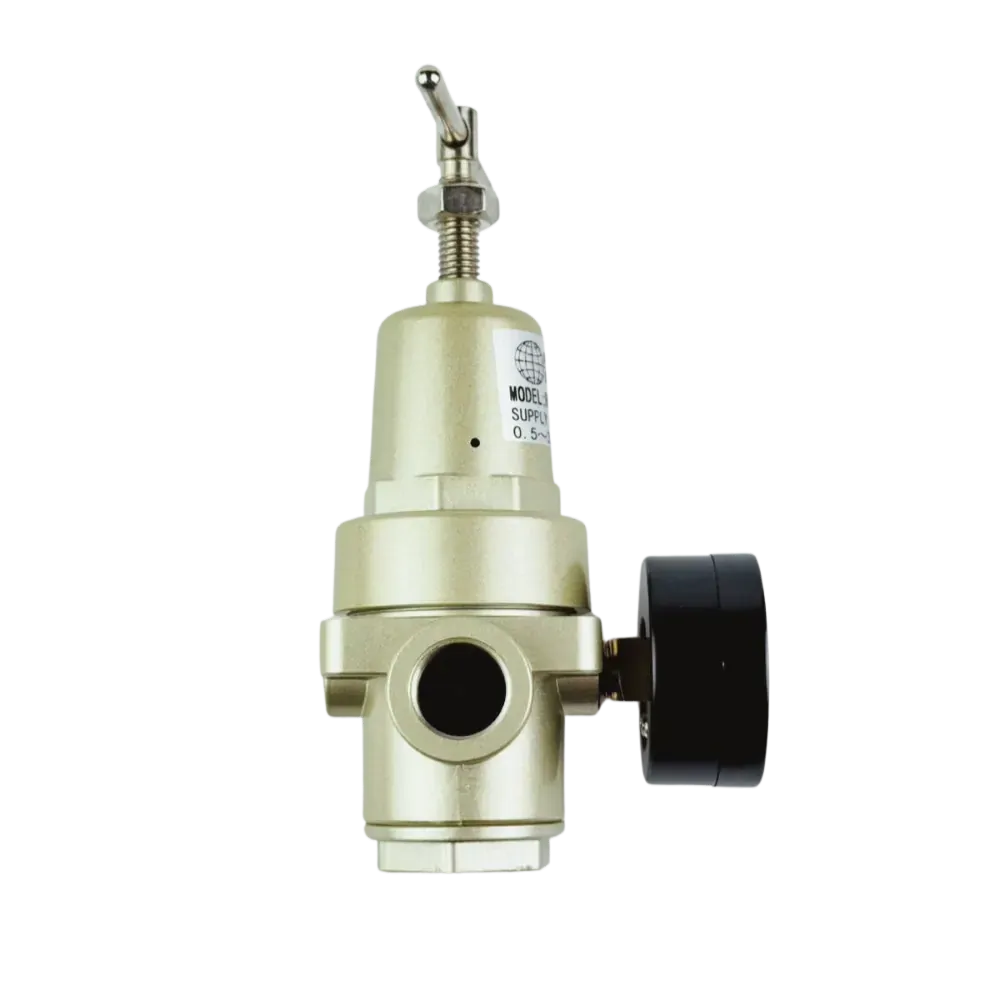

High Pressure Regulator

From $187.00

Inc GST
In Stock
Make an Enquiry

This high pressure airline regulator allows the setting of downstream air pressure in high pressure air lines (up to 35 Bar).

Specification HPR-02 HPR-03 HPR-04 HPR-05 HPR-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min Refer to Charts
Pressure Range 5 BAR to 35 BAR
Max Inlet Pressure 35 BAR
Medium Temperature -5 to 50°C
Media Air
Body Material Coated Die Cast Aluminium
Construction Relief Type
Gauge Port Size G1/4"

Flow Characteristics

High Pressure Air Regulator

Model K A B C D E F d L
HPR-02 G1/4 150 73 48 55x55 80 30 G1/4 52
HPR-03 G3/8 150 73 48 55x55 80 30 G1/4 52
HPR-04 G1/2 150 73 48 55x55 80 30 G1/4 52
HPR-05 G3/4 224 91 65 55x55 92 30 G1/4 52
HPR-06 G1 224 91 65 55x55 92 30 G1/4 52
All dimensions in mm unless shown otherwise.

Size 1/4" to 1" BSP
Function High Pressure Air Regulator - Relieving
Body Die Cast Aluminium
Pressure Range 5 to 36 BAR
Media Air

HPR

High Pressure Regulator

Features:

Size 1/4" to 1" BSP
Function High Pressure Air Regulator - Relieving
Body Die Cast Aluminium
Pressure Range 5 to 36 BAR
Media Air

Description:

This high pressure airline regulator allows the setting of downstream air pressure in high pressure air lines (up to 35 Bar).

Specification HPR-02 HPR-03 HPR-04 HPR-05 HPR-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min Refer to Charts
Pressure Range 5 BAR to 35 BAR
Max Inlet Pressure 35 BAR
Medium Temperature -5 to 50°C
Media Air
Body Material Coated Die Cast Aluminium
Construction Relief Type
Gauge Port Size G1/4"

Flow Characteristics

.

High Pressure Regulator

HPR

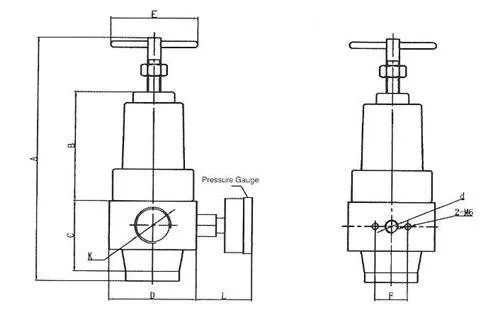

Dimensions:

High Pressure Air Regulator

Model K A B C D E F d L
HPR-02 G1/4 150 73 48 55x55 80 30 G1/4 52
HPR-03 G3/8 150 73 48 55x55 80 30 G1/4 52
HPR-04 G1/2 150 73 48 55x55 80 30 G1/4 52
HPR-05 G3/4 224 91 65 55x55 92 30 G1/4 52
HPR-06 G1 224 91 65 55x55 92 30 G1/4 52
All dimensions in mm unless shown otherwise.
