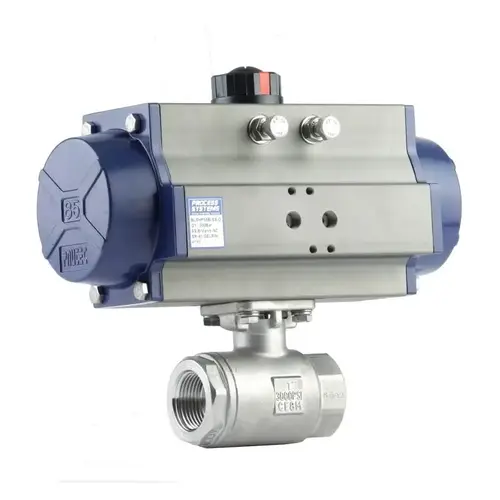

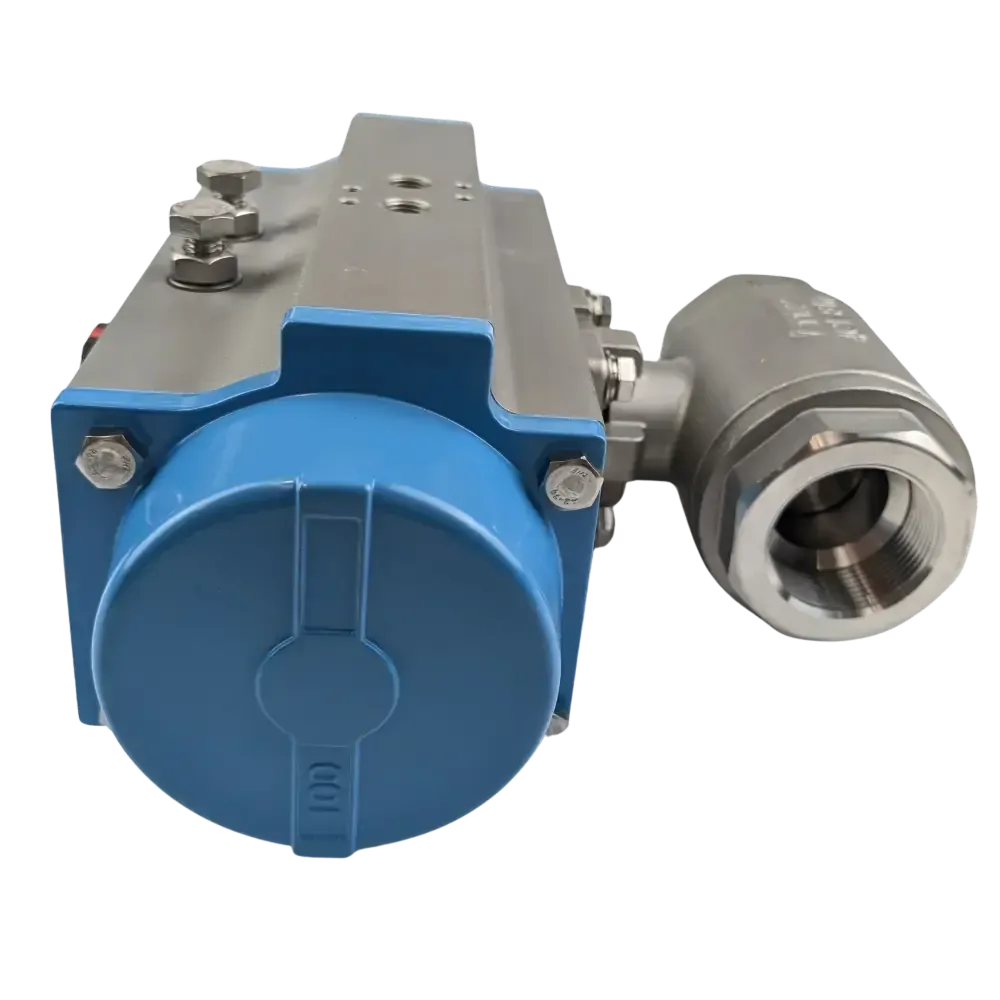

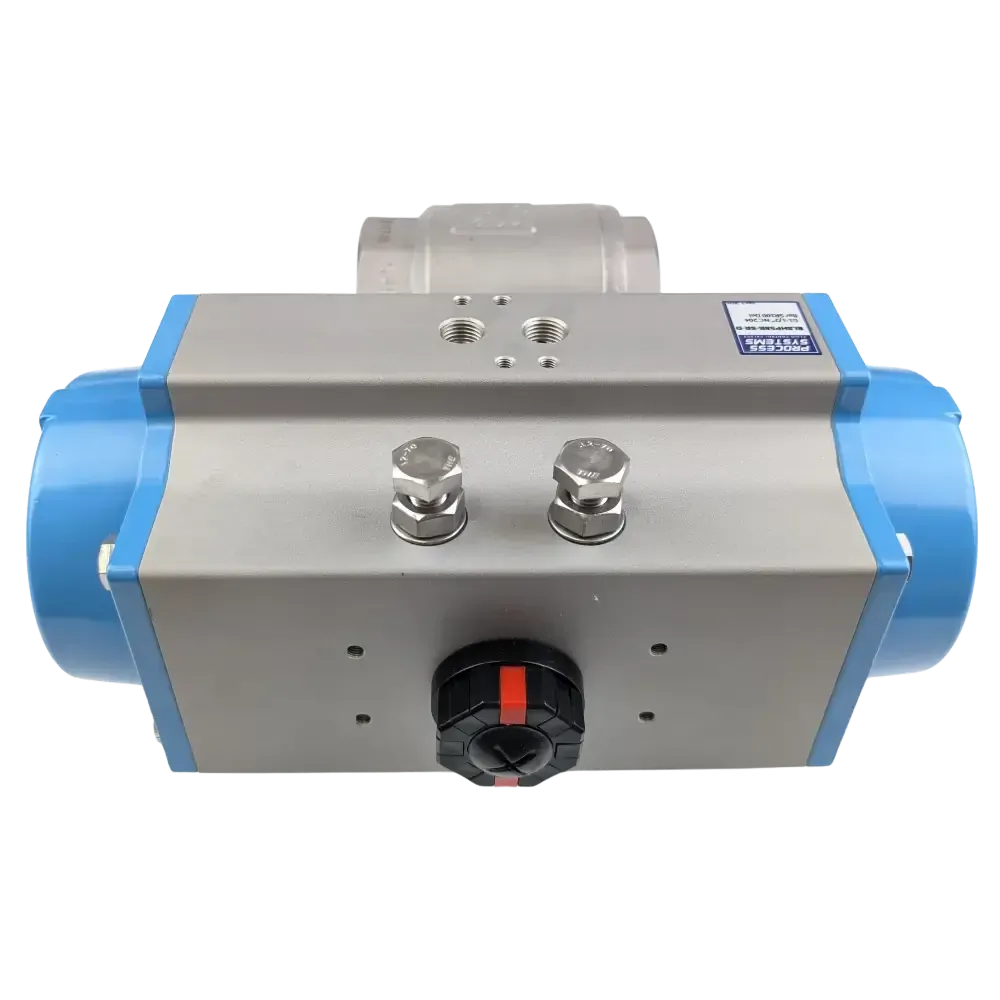

High Pressure Spring Return Ball Valve

From $412.50

Inc GST
In Stock
Make an Enquiry
  • Two way High Pressure Spring Return Pneumatic Stainless Steel Ball Valve
  • Delrin seats
  • Anodised Aluminium Actuator, adjustable stops, namur interface & visual indicator
  • Tested to API598
Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BLSHP52B-SR-D 1/4 8 SR63 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP53B-SR-D 3/8 10 SR63 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP54B-SR-D 1/2 12 SR75 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP55B-SR-D 3/4 17 SR75 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP56B-SR-D 1 22 SR88 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/8"
BLSHP58B-SR-D 1 ½ 35 SR100 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/4"
BLSHP59B-SR-D 2 35 SR100 0 to 200 BAR 40°C @ 200 BAR 6 to 8 BAR 1/4"

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

Spring Return Pneumatic High Pressure Ball Valve

Size A B D Actuator Q R
1/4 9.7 75 41 SR63 100 162
3/8 9.7 75 41 SR63 100 162
1/2 12.7 75 41 SR75 100 162
3/4 17.5 81 43.8 SR75 117 207
1 22.1 91 53.5 SR88 117 207
1 ½ 34.7 121 75.2 SR100 142 272
2 34.7 145 75.2 SR100 142 272

All dimensions in mm unless shown otherwise.

Spring Return Pneumatic High Pressure Ball Valve

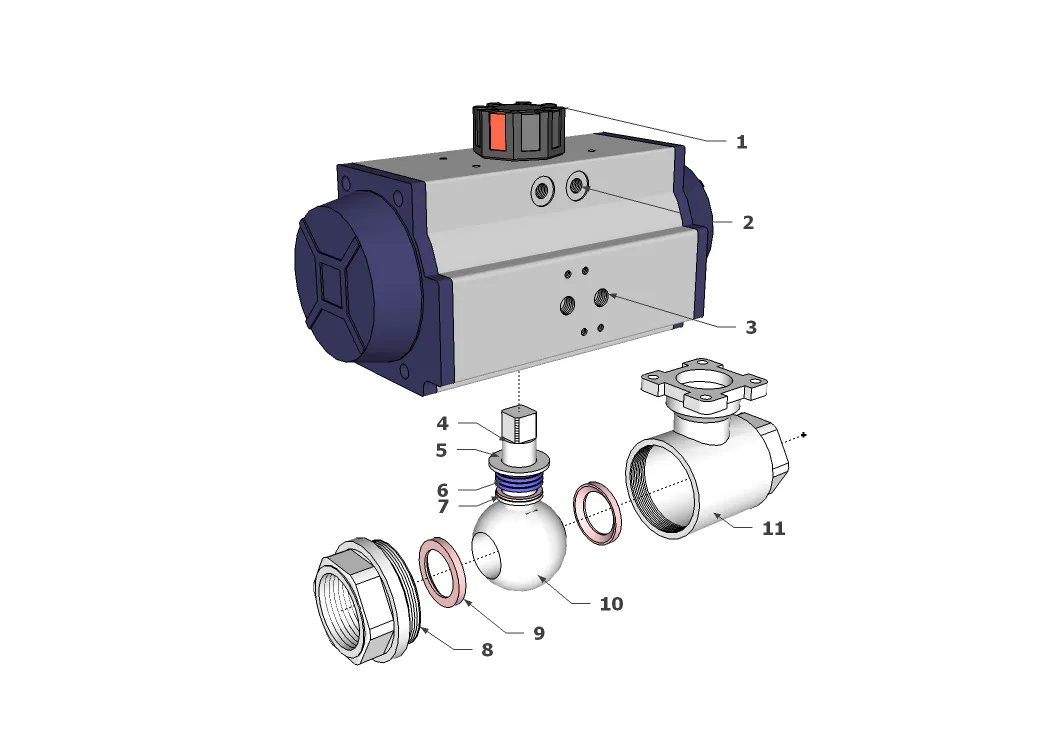

Number Part Material
1 Visual Indicator UV Stabilized Thermoplastic
2 Stops Stainless Steel
3 Inlet Ports/Namur Interface Anodised Aluminium
4 Drive 316 Stainless Steel
5 Chevron Seals Delrin
6 Backing O-Ring Viton
7 Thrust Washer Delrin
8 End Piece 316 Stainless Steel
9 Seat Delrin
10 Ball 316 Stainless Steel
11 Body 316 Stainless Steel

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure  200 BAR
Temperature Ambient
Actuation Spring Return Pneumatic
