SKU: IPM

Imperial Bulkhead Union Push Fit

From $6.16

Inc GST
In Stock
Make an Enquiry

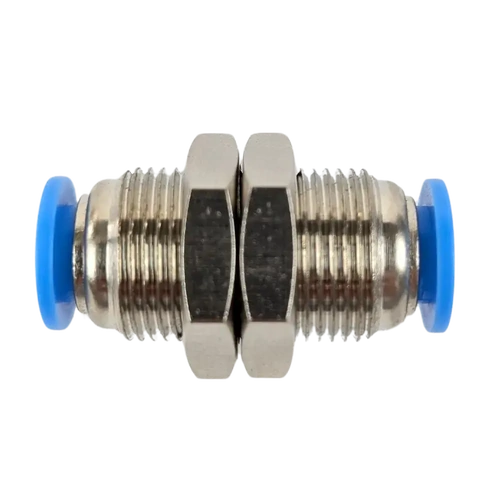

This fitting has imperial tube connectors at both ends of the fitting. It is designed as a fitting to connect air lines through panels and control boxes. In the middle of the thread it has counter rotating tightening nuts. These can be removed and then placed back on over the fitting to fix the fitting in place.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Hex tightening bulks for bulkhead

Imperial Bulkhead Connector Push Fit Fitting

Model Tube A B C M H
IPM1/4 1/4" 12.5 31.2 10.6 M14x1 17
IPM5/16 5/16" 12.5 34.9 12 M16x1 19
IPM3/8 3/8" 13.5 40 12 M20x1 24
IPM1/2 1/2" 19 45 13.5 M20x1 26

All dimensions in mm unless shown otherwise.

This threaded elbow is only representative of the construction.

Push Fit Fitting Construction

Tube Size 1/4" to 1/2"
Function Bulkhead Union Push Fit

IPM

Imperial Bulkhead Union Push Fit

Features:

Tube Size 1/4" to 1/2"
Function Bulkhead Union Push Fit

Description:

This fitting has imperial tube connectors at both ends of the fitting. It is designed as a fitting to connect air lines through panels and control boxes. In the middle of the thread it has counter rotating tightening nuts. These can be removed and then placed back on over the fitting to fix the fitting in place.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Hex tightening bulks for bulkhead
.

Imperial Bulkhead Union Push Fit

IPM

Dimensions:

Imperial Bulkhead Connector Push Fit Fitting

Model Tube A B C M H
IPM1/4 1/4" 12.5 31.2 10.6 M14x1 17
IPM5/16 5/16" 12.5 34.9 12 M16x1 19
IPM3/8 3/8" 13.5 40 12 M20x1 24
IPM1/2 1/2" 19 45 13.5 M20x1 26

All dimensions in mm unless shown otherwise.

.

Imperial Bulkhead Union Push Fit

IPM

Construction:

This threaded elbow is only representative of the construction.

Push Fit Fitting Construction
