Features:
Tube Size 1/4" to 1/2"
Thread Size M5 to 1/2"
Function Make Swivel Elbow Push Fit

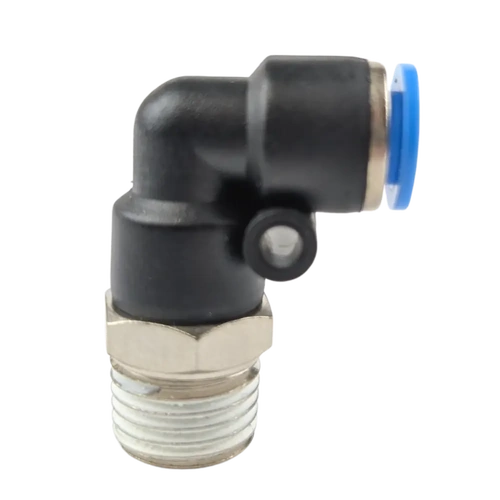

Imperial male swivel elbow push fit fitting. This has a tapered male BSP thread at one end and an imperial push fit fitting at the other end. The elbow itself swivels even when it is in the fitting so you can get the elbow to the desired angle. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

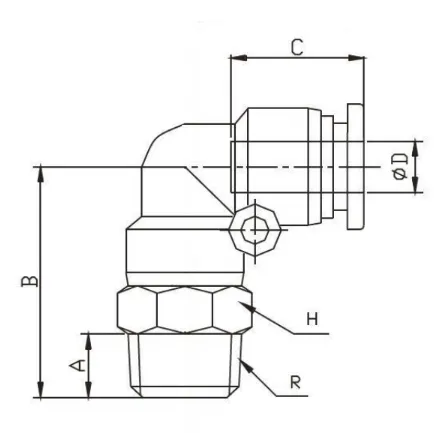

Model | Tube | A | B | C | H |
---|---|---|---|---|---|
IPL1/4-01 | 1/4" | 8 | 27 | 15.9 | 12 |
IPL1/4-02 | 1/4" | 11 | 28.5 | 15.9 | 12 |
IPL1/4-03 | 1/4" | 12 | 32 | 15.9 | 12 |
IPL1/4-04 | 1/4" | 15 | 35.5 | 15.9 | 12 |
IPL5/16-01 | 5/16" | 8 | 30 | 17.8 | 14 |
IPL5/16-02 | 5/16" | 11 | 33 | 17.8 | 14 |
IPL5/16-03 | 5/16" | 12 | 34.5 | 17.8 | 14 |
IPL5/16-04 | 5/16" | 15 | 38 | 17.8 | 14 |
IPL3/8-01 | 3/8" | 8 | 34.8 | 20.2 | 17 |
IPL3/8-02 | 3/8" | 11 | 37.8 | 20.2 | 17 |
IPL3/8-03 | 3/8" | 12 | 38.8 | 20.2 | 17 |
IPL3/8-04 | 3/8" | 15 | 42.3 | 20.2 | 17 |
IPL1/2-02 | 1/2" | 11 | 40.5 | 22.1 | 20 |
IPL1/2-03 | 1/2" | 12 | 41.5 | 22.1 | 20 |
IPL1/2-04 | 1/2" | 15 | 44.5 | 22.1 | 20 |
All dimensions in mm unless shown otherwise.
