SKU: IPE

Imperial Tee Joiner Push Fit

From $1.98

Inc GST
In Stock
Make an Enquiry

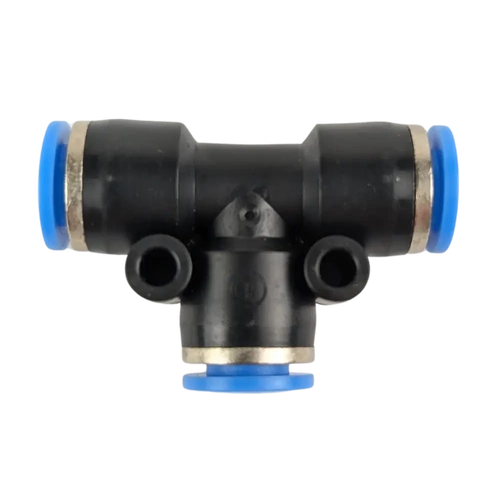

Imperial push fit tee joiner push fit fitting. This is a three way tube joiner where each of the three ends (on a tee) has an imperial push fit connector. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C

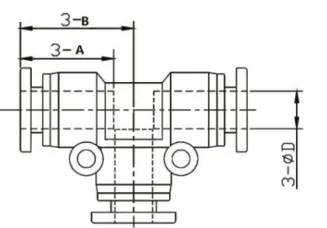

Imperial Push Fit Tee Union

Model Tube A B
IPE1/4 1/4" 15.9 19.7
IPE5/16 5/16" 17.8 22.5
IPE3/8 3/8" 21 27.6
IPE1/2 1/2" 22.6 29.3

All dimensions in mm unless shown otherwise.

This threaded elbow is only representative of the construction.

Push Fit Fitting Construction

Tube Size 1/4" to 1/2"
Function Tee Joiner Push Fit
