SKU: IPU

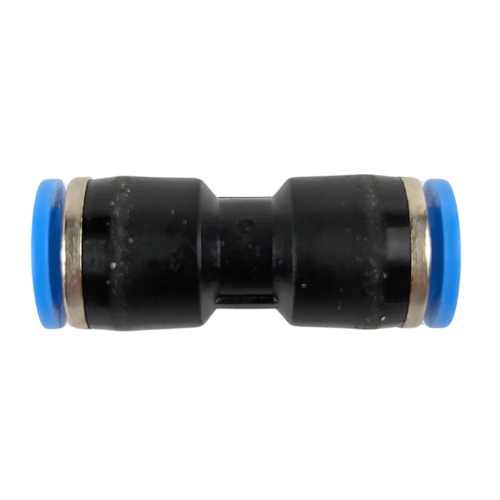

Imperial Tube Straight Joiner Push Fit

From $1.43

Inc GST
In Stock
Make an Enquiry

Imperial straight joiner push fit fitting. This has two imperial push fit ends on either side of the fitting. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C

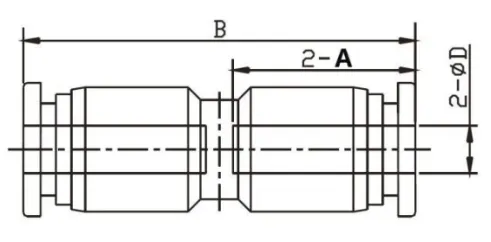

Imperial Push Fit Joiner

Model Tube A B
IPU1/4 1/4" 15.9 34.6
IPU5/16 5/16" 18.1 38.5
IPU3/8 3/8" 20.7 46.4
IPU1/2 1/2" 22.1 47.6

All dimensions in mm unless shown otherwise.

This threaded elbow is only representative of the construction.

Push Fit Fitting Construction

Tube Size 1/4" to 1/2"
Function Straight Joiner Push Fit
