SKU: APS

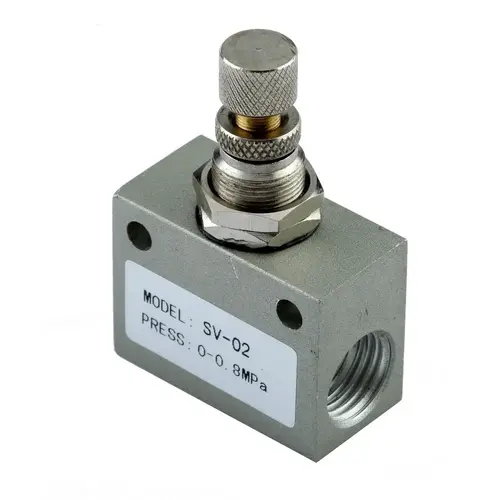

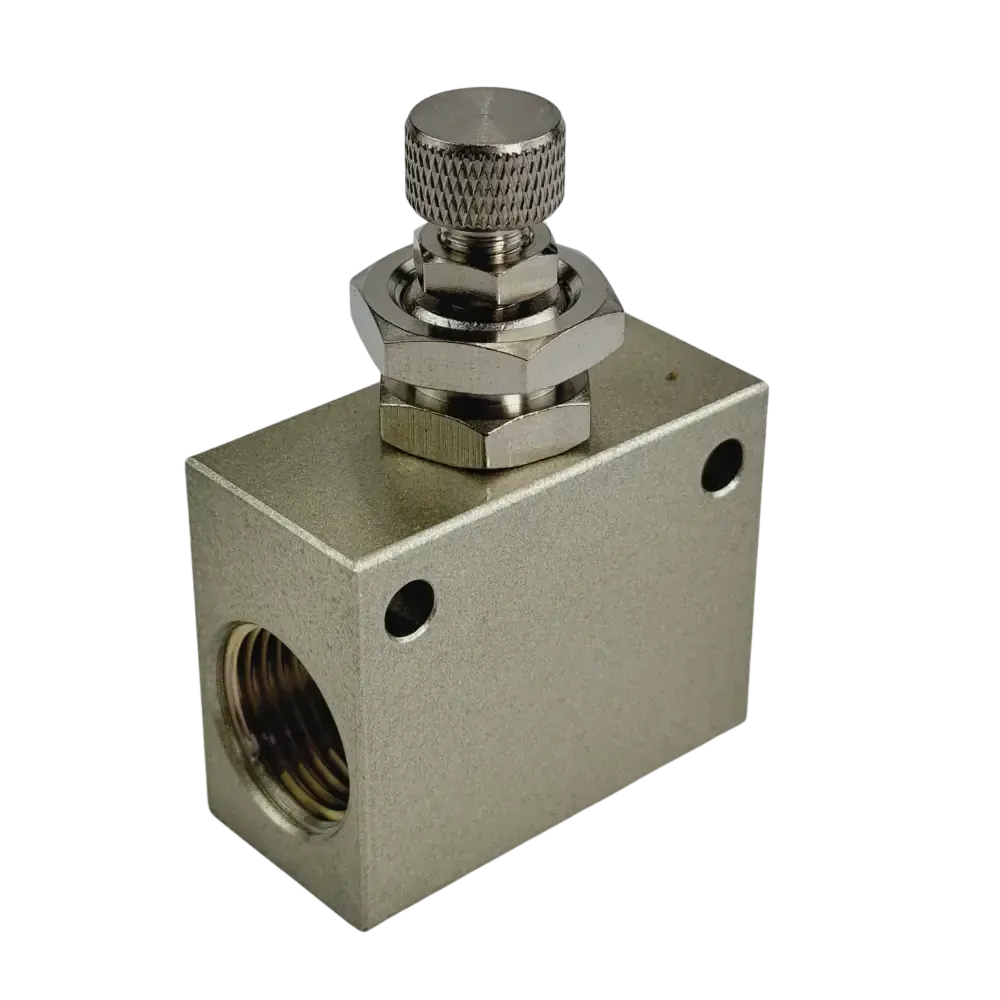

In line precision Speed Controller

From $18.70

Inc GST
In Stock
Make an Enquiry

This aluminium inline speed controller allows full air flow in one direction (the air into the cylinder port) and allows the speed of the exhaust air to be restricted in the other direction. This is great for controlling the speed of cylinders opening or closing.

In Line Precision Speed Controller Symbol

Specification APS-01 APS-02 APS-03 APS-04
Port Size G1/8” G1/4” G3/8” G1/2”
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 99°C
Body Die Cast Aluminium
Lubrication Not Required
Applicable Medium Air

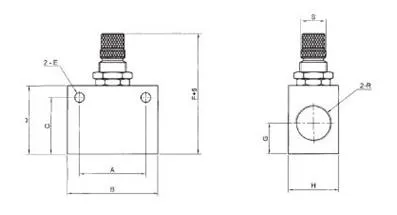

In line Precision Speed Controller Dimensions

Specification A B C D E F G H R S
APS-01 20 35 21 26 Ø4.5 50 10 16 G1/8” M12
APS-02 20 35 21 26 Ø4.5 50 10 19 G1/4” M12
APS-03 38 50 32 40 Ø5.5 68 16 25 G3/8” M16
APS-04 38 50 32 40 Ø5.5 68 16 25 G1/2" M16

All dimensions in mm unless shown otherwise.

Size 1/8" to 1/2" BSP
Function Precision Speed Controller
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

.
.
