SKU: BFLDA

Lugged Ductile Iron Double Acting Butterfly Valve

From $214.50

Inc GST
In Stock
Make an Enquiry
  • Lugged Ductile Iron Double Acting Pneumatic Butterfly Valve
  • EPDM seat, 316 SS disc, splined shaft
  • Anodised Aluminium Pneumatic Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
  • Watermark & Standards Mark approved
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFL50-DA-E 50 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL65-DA-E 65 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL80-DA-E 80 DA63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL100-DA-E 100 DA75 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL125-DA-E 125 DA88 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL150-DA-E 150 DA100 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL200-DA-E 200 DA115 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL250-DA-E 250 DA125 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL300-DA-E 300 DA145 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL350-DA-E 350 DA180 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL400-DA-E 400 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL450-DA-E 450 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL500-DA-E 500 DA240 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL600-DA-E 600 DA270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"

Contact us for sizes above 300mm.

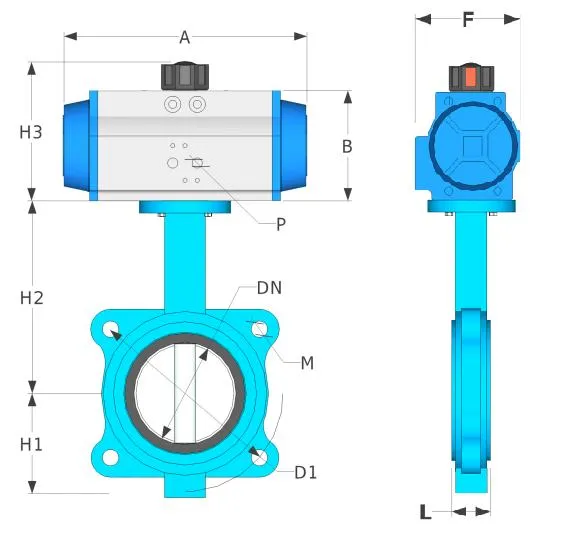

Double Acting Lugged Butterfly Valve Dimensions

DN Actuator A B F H1 H2 H3 L P
50 DA50 138 70 71 71.3 125 90 43 1/8"
65 DA50 138 70 71 77.5 140 90 46 1/8"
80 DA63 162 81 80.4 89.2 145 101 46 1/8"
100 DA75 208 97 94.5 101.5 165 117 52 1/8"
125 DA75 208 97 94.5 117.5 178 117 56 1/8"
150 DA88 245 116 109 145 185 136 56 1/8"
200 DA115 310 142 137 163.5 225 172 60 1/4"
250 DA125 340 154 148 190.5 257 184 68 1/4"
300 DA145 401 179 168.5 230 302 209 78 1/4"
350 DA160 430 192 186.5 267 368 222 78 1/4"
400 DA180 482 222 204 297 400 252 102 1/4"
450 DA200 532 244 224 318 422 274 114 1/4"
500 DA240 662 288 266 348 480 308 127 1/4"
600 DA270 730 323 306 444 562 353 154 1/4"

All dimensions in mm unless shown otherwise. Dimensions 'D1" and 'M' depend upon the flange standard chosen. Please see reference to the flange standards here.

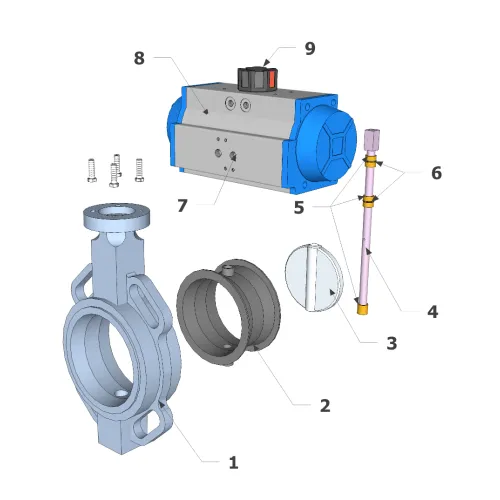

Double Acting Lugged Butterfly Valve Construction

Number Item Material
1 Body Fusion Bonded Epoxy Cast Iron
2 Seat Phenolic backed cartridge style EPDM
3 Disc 316 Stainless Steel
4 Shaft 416 Stainless Steel
5 Bushings PTFE
6 Stem Orings EPDM
7 Actuator Ports Anodized Aluminium
8 Pneumatic Actuator Anodized Aluminium
9 Visual Indicator Thermoplastic

Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Double Acting Pneumatic

BFLDA

Lugged Ductile Iron Double Acting Butterfly Valve

Features:

Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Double Acting Pneumatic

Description:

  • Lugged Ductile Iron Double Acting Pneumatic Butterfly Valve
  • EPDM seat, 316 SS disc, splined shaft
  • Anodised Aluminium Pneumatic Actuator
  • Adjustable Stops, Namur Interface & Visual Indicator
  • Watermark & Standards Mark approved
Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFL50-DA-E 50 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL65-DA-E 65 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL80-DA-E 80 DA63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL100-DA-E 100 DA75 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL125-DA-E 125 DA88 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFL150-DA-E 150 DA100 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL200-DA-E 200 DA115 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL250-DA-E 250 DA125 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL300-DA-E 300 DA145 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL350-DA-E 350 DA180 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL400-DA-E 400 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL450-DA-E 450 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL500-DA-E 500 DA240 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFL600-DA-E 600 DA270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"

Contact us for sizes above 300mm.

.

Lugged Ductile Iron Double Acting Butterfly Valve

BFLDA

Dimensions:

Double Acting Lugged Butterfly Valve Dimensions

DN Actuator A B F H1 H2 H3 L P
50 DA50 138 70 71 71.3 125 90 43 1/8"
65 DA50 138 70 71 77.5 140 90 46 1/8"
80 DA63 162 81 80.4 89.2 145 101 46 1/8"
100 DA75 208 97 94.5 101.5 165 117 52 1/8"
125 DA75 208 97 94.5 117.5 178 117 56 1/8"
150 DA88 245 116 109 145 185 136 56 1/8"
200 DA115 310 142 137 163.5 225 172 60 1/4"
250 DA125 340 154 148 190.5 257 184 68 1/4"
300 DA145 401 179 168.5 230 302 209 78 1/4"
350 DA160 430 192 186.5 267 368 222 78 1/4"
400 DA180 482 222 204 297 400 252 102 1/4"
450 DA200 532 244 224 318 422 274 114 1/4"
500 DA240 662 288 266 348 480 308 127 1/4"
600 DA270 730 323 306 444 562 353 154 1/4"

All dimensions in mm unless shown otherwise. Dimensions 'D1" and 'M' depend upon the flange standard chosen. Please see reference to the flange standards here.

.

Lugged Ductile Iron Double Acting Butterfly Valve

BFLDA

Construction:

Double Acting Lugged Butterfly Valve Construction

Number Item Material
1 Body Fusion Bonded Epoxy Cast Iron
2 Seat Phenolic backed cartridge style EPDM
3 Disc 316 Stainless Steel
4 Shaft 416 Stainless Steel
5 Bushings PTFE
6 Stem Orings EPDM
7 Actuator Ports Anodized Aluminium
8 Pneumatic Actuator Anodized Aluminium
9 Visual Indicator Thermoplastic

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.
