Male Branch Tee Push Fit

From $3.30

Inc GST
In Stock
Make an Enquiry

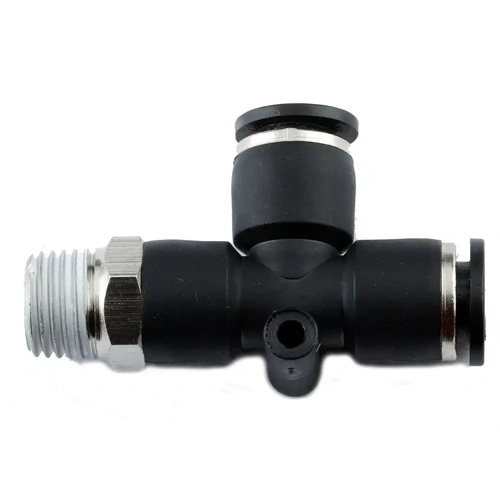

This is a metric male threaded branch tee push fit fitting. On the branch of the tee it has a male BSP threaded end and then at each other end of the tee it has a metric push fit connection. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

Male Branch Tee Push Fit FItting

Model O.D Tube (øD) mm Thread (R) BSPT E B øP A H F ød
YPD04-M5 4 M5 17 40 10.5 4 10 5 3.2
YPD04-01 4 1/8” 17 43 10.5 7 10 5 3.2
YPD04-02 4 1/4” 17 45.5 10.5 9.5 14 5 3.2
YPD06-M5 6 M5 19 41.5 13 4 12 5.5 3.2
YPD06-01 6 1/8” 19 44.5 13 7 12 5.5 3.2
YPD06-02 6 1/4” 19 47 13 9.5 14 5.5 3.2
YPD06-03 6 3/8” 19 48.5 13 10.5 17 5.5 3.2
YPD06-04 6 1/2" 19 52.5 13 13 21 5.5 3.2
YPD08-01 8 1/8” 22.5 51.5 14.4 7 14 6.5 3.2
YPD08-02 8 1/4” 22.5 54 14.4 9.5 14 6.5 3.2
YPD08-03 8 3/8” 22.5 55 14.4 10.5 17 6.5 3.2
YPD08-04 8 1/2" 22.5 59 14.4 13 21 6.5 3.2
YPD10-01 10 1/8” 28 62 18.4 7 17 8 4.2
YPD10-02 10 1/4” 28 64.5 18.4 9.5 17 8 4.2
YPD10-03 10 3/8” 28 65.5 18.4 10.5 17 8 4.2
YPD10-04 10 1/2" 28 69.5 18.4 13 21 8 4.2
YPD12-02 12 1/4” 31 68 20 9.5 19 8.5 4.2
YPD12-03 12 3/8” 31 69 20 10.5 19 8.5 4.2
YPD12-04 12 1/2" 31 72.5 20 13 21 8.5 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Branch Tee Push Fit

YPD

Male Branch Tee Push Fit

Features:

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Male Branch Tee Push Fit

Description:

This is a metric male threaded branch tee push fit fitting. On the branch of the tee it has a male BSP threaded end and then at each other end of the tee it has a metric push fit connection. Simply push the tube in to seal and pull the collet down while pulling the tube out to release.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre
.

Male Branch Tee Push Fit

YPD

Dimensions:

Male Branch Tee Push Fit FItting

Model O.D Tube (øD) mm Thread (R) BSPT E B øP A H F ød
YPD04-M5 4 M5 17 40 10.5 4 10 5 3.2
YPD04-01 4 1/8” 17 43 10.5 7 10 5 3.2
YPD04-02 4 1/4” 17 45.5 10.5 9.5 14 5 3.2
YPD06-M5 6 M5 19 41.5 13 4 12 5.5 3.2
YPD06-01 6 1/8” 19 44.5 13 7 12 5.5 3.2
YPD06-02 6 1/4” 19 47 13 9.5 14 5.5 3.2
YPD06-03 6 3/8” 19 48.5 13 10.5 17 5.5 3.2
YPD06-04 6 1/2" 19 52.5 13 13 21 5.5 3.2
YPD08-01 8 1/8” 22.5 51.5 14.4 7 14 6.5 3.2
YPD08-02 8 1/4” 22.5 54 14.4 9.5 14 6.5 3.2
YPD08-03 8 3/8” 22.5 55 14.4 10.5 17 6.5 3.2
YPD08-04 8 1/2" 22.5 59 14.4 13 21 6.5 3.2
YPD10-01 10 1/8” 28 62 18.4 7 17 8 4.2
YPD10-02 10 1/4” 28 64.5 18.4 9.5 17 8 4.2
YPD10-03 10 3/8” 28 65.5 18.4 10.5 17 8 4.2
YPD10-04 10 1/2" 28 69.5 18.4 13 21 8 4.2
YPD12-02 12 1/4” 31 68 20 9.5 19 8.5 4.2
YPD12-03 12 3/8” 31 69 20 10.5 19 8.5 4.2
YPD12-04 12 1/2" 31 72.5 20 13 21 8.5 4.2

All dimensions in mm unless shown otherwise.
