SKU: YSC

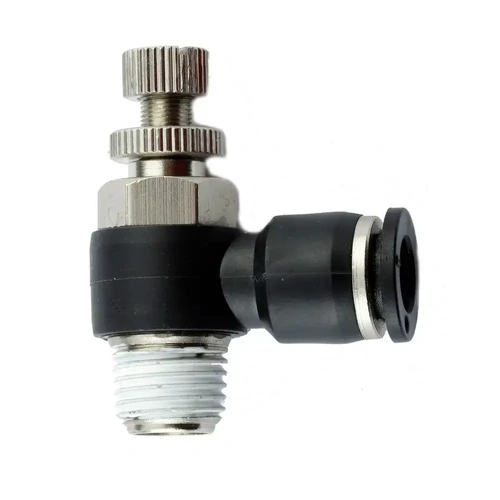

Male Threaded Speed Controller Push Fit

From $7.70

Inc GST
In Stock
Make an Enquiry

Threaded male tapered BSP swivel end with speed controller and push fit connection. Allows regulation of air flow in line or in actuator.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C
Features Pre-taped Teflon Gum, Allen key drive through centre

Banjo Speed Controller Push Fit Fitting

Model O.D Tube (øD) mm Thread (R) BSPT E B øP A H øK
YSC04-M5 4 M5 24 28 10.5 3.5 8 10
YSC04-01 4 1/8” 28 37 10.5 7.5 12 14
YSC04-02 4 1/4” 32 44.5 10.5 11 14 15
YSC06-M5 6 M5 28 28 13 3.5 8 10
YSC06-01 6 1/8” 32 37 13 7.5 12 14
YSC06-02 6 1/4” 36 44.5 13 11 14 18
YSC06-03 6 3/8” 40 48 13 12 19 22
YSC06-04 6 1/2" 45.5 52.5 13 12.5 24 27.5
YSC08-01 8 1/8” 32.5 37 14.4 7.5 12 14
YSC08-02 8 1/4” 36.5 44.5 14.4 11 14 18
YSC08-03 8 3/8” 40.5 48 14.4 12 19 22
YSC08-04 8 1/2" 46 52.5 14.4 12.5 24 27.5
YSC10-01 10 1/8” 34.5 37 18.4 7.5 12 14
YSC10-02 10 1/4” 38.5 44.5 18.4 11 14 18
YSC10-03 10 3/8” 42.5 48 18.4 12 19 22
YSC10-04 10 1/2" 48 52.5 18.4 12.5 24 27.5
YSC12-02 12 1/4” 41.5 44.5 20 11 14 18
YSC12-03 12 3/8” 45.5 48 20 12 19 22
YSC12-04 12 1/2" 51 52.5 20 12.5 24 27.5

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 12mm
Thread Size M5 to 1/2"
Function Elbow Speed Controller Push Fit
