SKU: MBVM

Mini Ball Valve Female Ends

From $8.80

Inc GST
In Stock
Make an Enquiry

Two way mini chrome plated brass ball valve. Female BSP threaded ends from 1/4" to 1/2". Perfect for small isolation requirements.

  • Up to 10 Bar Pressure
  • 0°C to 80°C Temperature Range
  • NBR Oring, PTFE seat
  • Low Torque Design

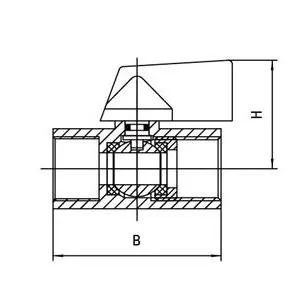

Female Mini Ball Valve

Model Size (BSP) B H
MBVM-02 ¼” 42 27
MBVM-03 ⅜” 42 27
MBVM-04 ½” 46 28.5

All dimensions in mm unless shown otherwise.

Size 1/4" to 1/2" BSP
Body Chrome Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature 0°C to 80°C
Actuation Aluminium Lever
