Modulating Electric Actuator

From $1,732.50

Inc GST
In Stock
Make an Enquiry

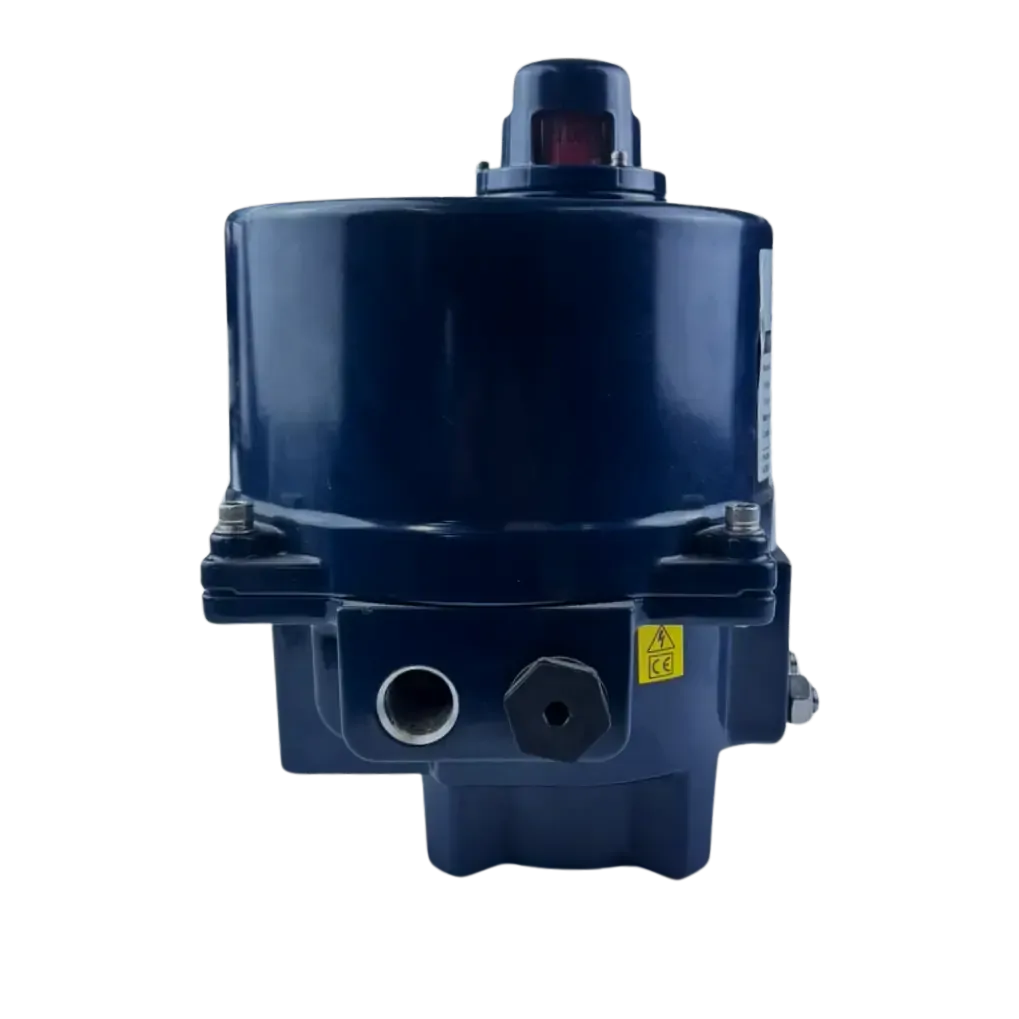

These actuators are a modulating 1/4 turn (90 degree turn) electric actuator. They are standard witha  4 to 20 mA input and output signal and visual indicator. The unit is IP67 rated with two M20x1.5 cable entries. These are commonly used on V port ball valves and other kinds of valves where you wish to stop the valve anywhere between its open and close position.

Model Torque (Nm) Speed AC (90°) Speed DC(90°) Duty Cycle MTG Flange Drive (mm) Weight (kg)
24v AC/DC 110v AC 240v AC 415v AC
0M-1M-* 35 13 15 75% 75% 75% - F03/F05 14 star 2
0M-AM-* 50 24 20 75% 75% 75% - F05/F07 17 star 3
0M-2M-* 90 17 15 75% 30%* 30%* 30% F07 22 star 11
0M-3M-* 150 26 22 75% 30%* 30%* 30% F07 22 star 11
0M-4M-* 400 18 16 75% 30%* 30%* 30% F10 36 star 22
0M-5M-* 500 25 22 75% 30%* 30%* 30% F10 36 star 22
0M-6M-* 650 31 28 75% 30%* 30%* 30% F10 36 star 22
0M-7M-* 1000 55 46 75% 30%* 30%* 30% F12/F14 36 star 36
0M-8M-* 1500 70 46 75% 30%* 30%* 30% F12/F14 36 star 36
0M-9M-* 2000 70 58 50% 50% 50% 30% F14/F16 75 ѻ 56
0M-10M-* 2500 70 58 50% 50% 50% 30% F14/F16 75 ѻ 56
0M-11M-* 3000 70 58 50% 50% 50% 30% F14/F16 75 ѻ 56
0M-12M-* 3500 70 58 50% 50% 50% 30% F14/F16 75 ѻ 56

Please note 12vDC is not available for modulating control.

Modulating Electric Actuator Dimensions

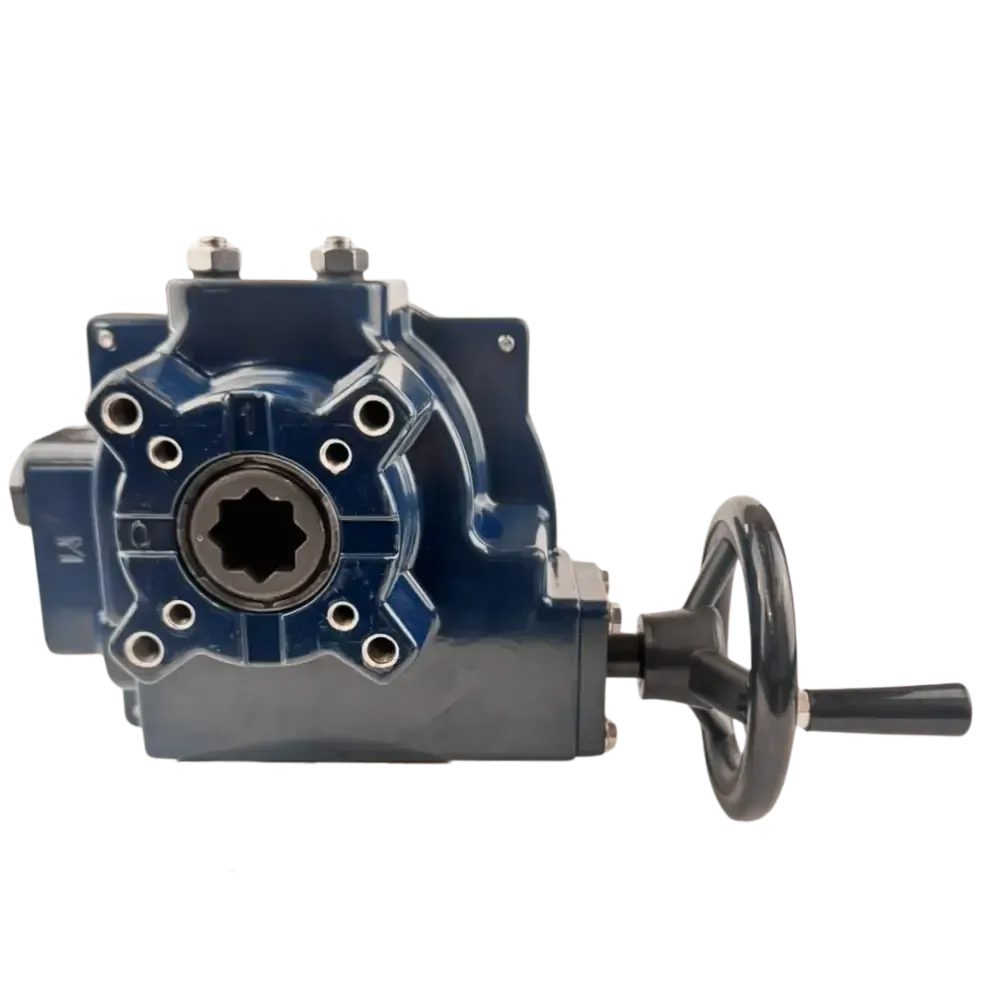

MODEL A B C ISO 5211 MOUNTING Female Drive END STOPS MANUAL OVERRIDE
OM-1M 108 155 - FO3 / FO5 14mm Star NO Spanner Drive
OM-AM 108 200 - F05/FO7 17mm Star NO None
OM-2M 200 290 330 F07/F10 22mm Star Yes Hand wheel
OM-3M 200 290 330 F07/F10 22mm Star Yes Hand wheel
OM-4M 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-5M 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-6M 234 315 380 F10/F12 36mm Star Yes Hand wheel
OM-7M 234 420 520 F14 36mm Star Yes Hand wheel
OM-8M 234 420 520 F14 36mm Star Yes Hand wheel
OM-9M 260 590 540 F16 Ø 75mm Keyway Yes Hand wheel
OM-10M 260 590 540 F16 Ø 75mm Keyway Yes Hand wheel
OM-11M 260 590 540 F16 Ø 75mm Keyway Yes Hand wheel
OM-12M 260 590 540 F16 Ø 75mm Keyway Yes Hand wheel
OM-13M       F25 Ø 72mm Keyway Yes Hand wheel

All dimensions in mm unless shown otherwise.



Torque 35 to 3500 NM
Function Modulating
Body Powder Coated Die Cast Aluminium
Voltage 24vDC, 24v AC, 110vAC, 240vAC
Rating IP67
