Features:
Torque 35 to 1500 NM
Function Modulating
Body FBP coated Die Cast Aluminium
Voltage 24vDC, 24v AC, 110vAC, 240vAC
Rating IP68

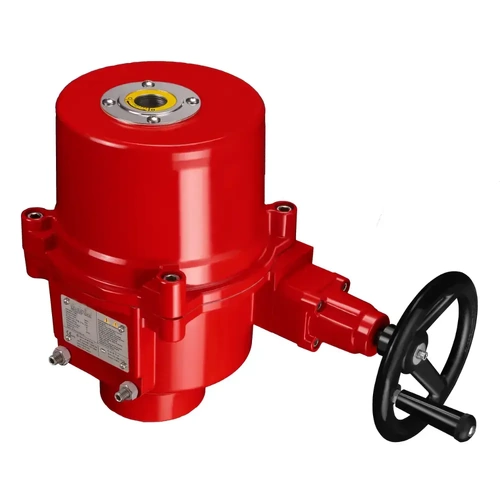

These modulating 1/4 turn (90 degree turn) electric actuators come with a hazardous area certification. This makes them ideal for use in environments where a hazardous area certification is required or desired. They are standard with an IP68 weather rating, visual indicator and inbuilt thermal protection. Ambient Temperature of -30°C to 70°C. IECEx Explosion Proof & Dust protection certified Exdb11BT4Gb and Extb111CT130CDbIP68.
Model | Torque (Nm) | Nominal Power (Watts) | Running Time (seconds) | Manual Override | Mounting (ISO 5211) | Shaft (mm) | Depth of Shaft (mm) |
---|---|---|---|---|---|---|---|
0ME-1M | 35 | 10 | 11 | Allen Key | F03/F05 | 14 | 17 |
0ME-AM | 50 | 10 | 21 | Allen Key | F07 | 17 | 20 |
0ME-2M | 90 | 40 | 18 | Hand Wheel | F07 | 22 | 30 |
0ME-3M | 150 | 40 | 28 | Hand Wheel | F07 | 22 | 30 |
0ME-4M | 400 | 80 | 20 | Hand Wheel | F10 | 36 | 48 |
0ME-5M | 500 | 80 | 27 | Hand Wheel | F10 | 36 | 48 |
0ME-6M | 650 | 80 | 36 | Hand Wheel | F10 | 36 | 48 |
0ME-7M | 1000 | 120 | 52 | Hand Wheel | F12 or F14 | 36 | 50 |
0ME-8M | 1500 | 120 | 54 | Hand Wheel | F12 or F14 | 36 | 50 |
