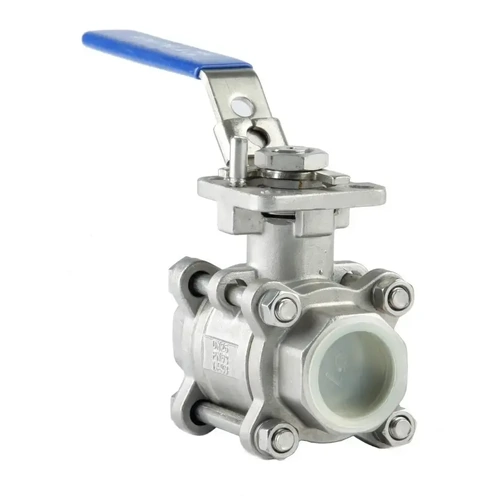

Features:
Size 1/4" to 2" NPT
Body 316 Stainless Steel 3 piece
Seat Reinforced PTFE
Pressure 63 BAR
Temperature -20°C to 180°C
Actuation Lockable Lever
No. | Part | Material |
---|---|---|
1 | Bonnet | ASTM A351 CF8M |
2 | Seat | PTFE +15% Glass Filler |
3 | Ball | ASTM A182 316 |
4 | Gasket | PTFE |
5 | Stem Gasket | PTFE |
6 | O-Ring | VITON |
7 | Body | ASTM A351 CF8M |
8 | Packing | PTFE |
9 | Stem | ASTM A182 316 |
10 | Packing Gland | ASTM A276 304 |
11 | Butterfly Spring | PH15-7Mo |
12 | Stem Nut | ASTM A276 201 |
No. | Part | Material |
---|---|---|
13 | Packing Gland | ASTM A276 304 |
14 | Handle | ASTM A276 201 |
15 | Nut | ASTM A276 201 |
16 | Stop Pin | ASTM A276 201 |
17 | Handle Lock | ASTM A276 201 |
18 | Handle Sleeve | Plastic |
19 | Thrust Washer | ASTM A276 201 |
20 | Anti-static Device | ASTM A276 304 |
21 | Bolt | ASTM A193-B8 |
22 | Spring Washer | ASTM A193-B8 |
23 | Nut | ASTM A194-B8M |
