SKU: P55

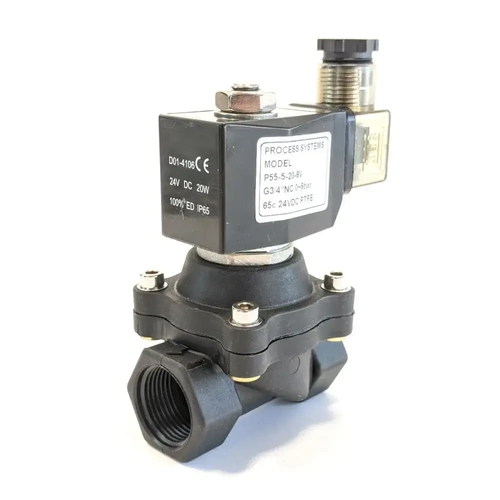

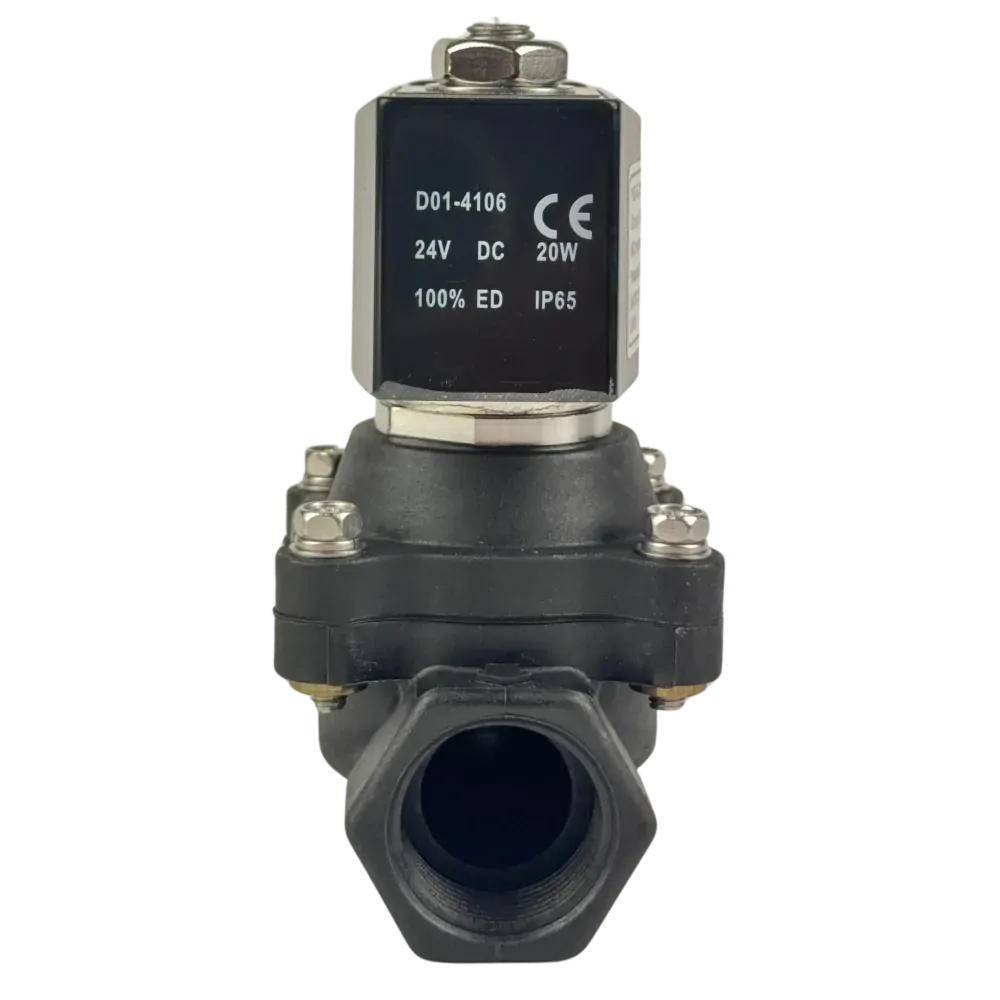

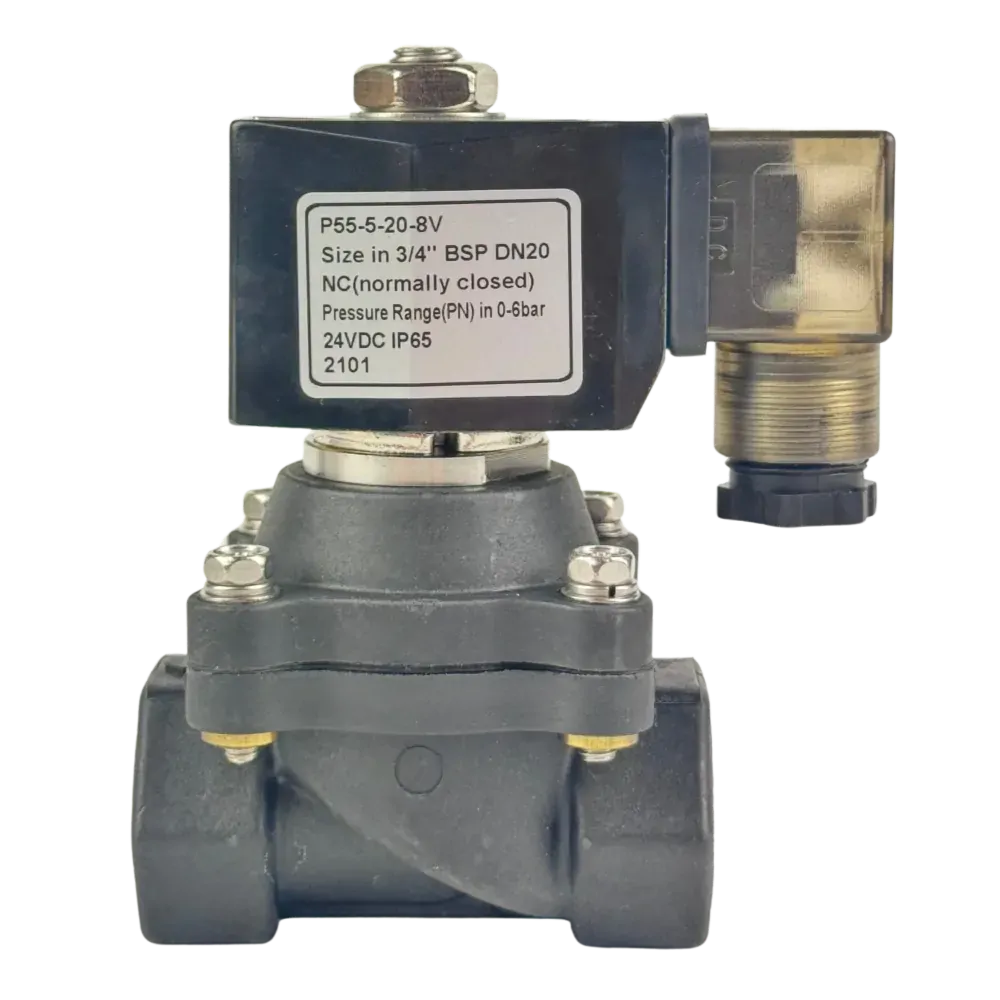

Nylon General Purpose Normally Closed Zero Differential Solenoid Valve

From $82.50

Inc GST
In Stock
Make an Enquiry
  • 2 way Zero Differential Normally Closed (power to open) Solenoid Valve
  • Glass Reinforced Nylon Body, FKM seals
  • 0 to 6 Bar Pressure Range
  • 5°C to 65°C Temperature Range
  • For Gases & Liquids
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

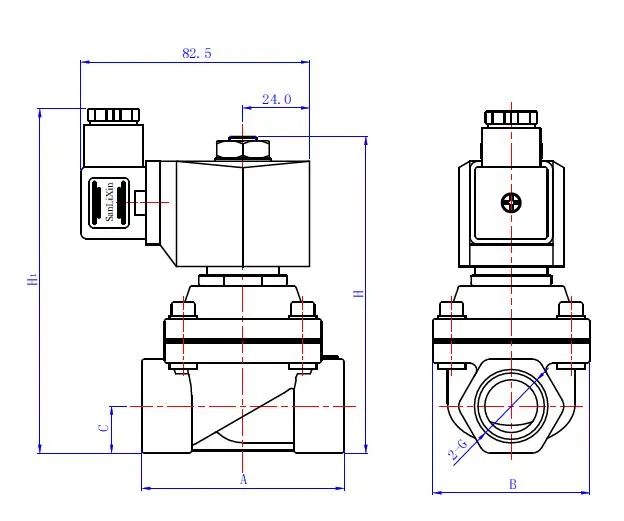

Nylon Zero Differential Normally Closed Solenoid Valve

Model G (BSP) A B C H Weight (kg)
P55-4-16-*V 1/2 69 57 15.5 107 0.57
P55-5-20-*V 3/4 73 57 17 115 0.60
P55-6-25-*V 1 99 77 21 121 0.70

All dimensions in mm unless noted otherwise.

Size 1/2" to 1" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body Glass Reinforced Nylon
Seat FKM
Pressure Range 0 to 6 BAR
Media Non aggressive media, some chemicals

.
.
