Pneumatic In Line Check Valve

From $24.20

Inc GST
In Stock
Make an Enquiry

This aluminium pneumatic inline check valve is designed to ensure the flow of air in one direction (prevent backflow). It can be mounted on any angle as it uses a spring behind the checking disc.

Specification ACV-01 ACV-02 ACV-03 ACV-04 ACV-05 ACV-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 6mm 8mm 10mm 15mm 20mm 25mm
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Aluminium
Lubrication Not Required
Applicable Medium Air

In line AIr Check Valve

Specification A B C D E
ACV-01 64 53 Ø28 24 G1/8”
ACV-02 64 53 Ø28 24 G1/4”
ACV-03 86 66 Ø39.5 36 G3/8”
ACV-04 86 66 Ø39.5 36 G1/2"
ACV-05 112 90 Ø53.5 46 G3/4”
ACV-06 112 90 Ø53.5 46 G1”
All dimensions in mm unless shown otherwise.

Size 1/8" to 1" BSP
Function Check Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

Others Also Bought

ACV

Pneumatic In Line Check Valve

Features:

Size 1/8" to 1" BSP
Function Check Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

Description:

This aluminium pneumatic inline check valve is designed to ensure the flow of air in one direction (prevent backflow). It can be mounted on any angle as it uses a spring behind the checking disc.

Specification ACV-01 ACV-02 ACV-03 ACV-04 ACV-05 ACV-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 6mm 8mm 10mm 15mm 20mm 25mm
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Aluminium
Lubrication Not Required
Applicable Medium Air
.

Pneumatic In Line Check Valve

ACV

Dimensions:

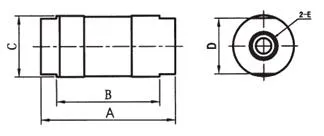

In line AIr Check Valve

Specification A B C D E
ACV-01 64 53 Ø28 24 G1/8”
ACV-02 64 53 Ø28 24 G1/4”
ACV-03 86 66 Ø39.5 36 G3/8”
ACV-04 86 66 Ø39.5 36 G1/2"
ACV-05 112 90 Ø53.5 46 G3/4”
ACV-06 112 90 Ø53.5 46 G1”
All dimensions in mm unless shown otherwise.
