SKU: APC-01

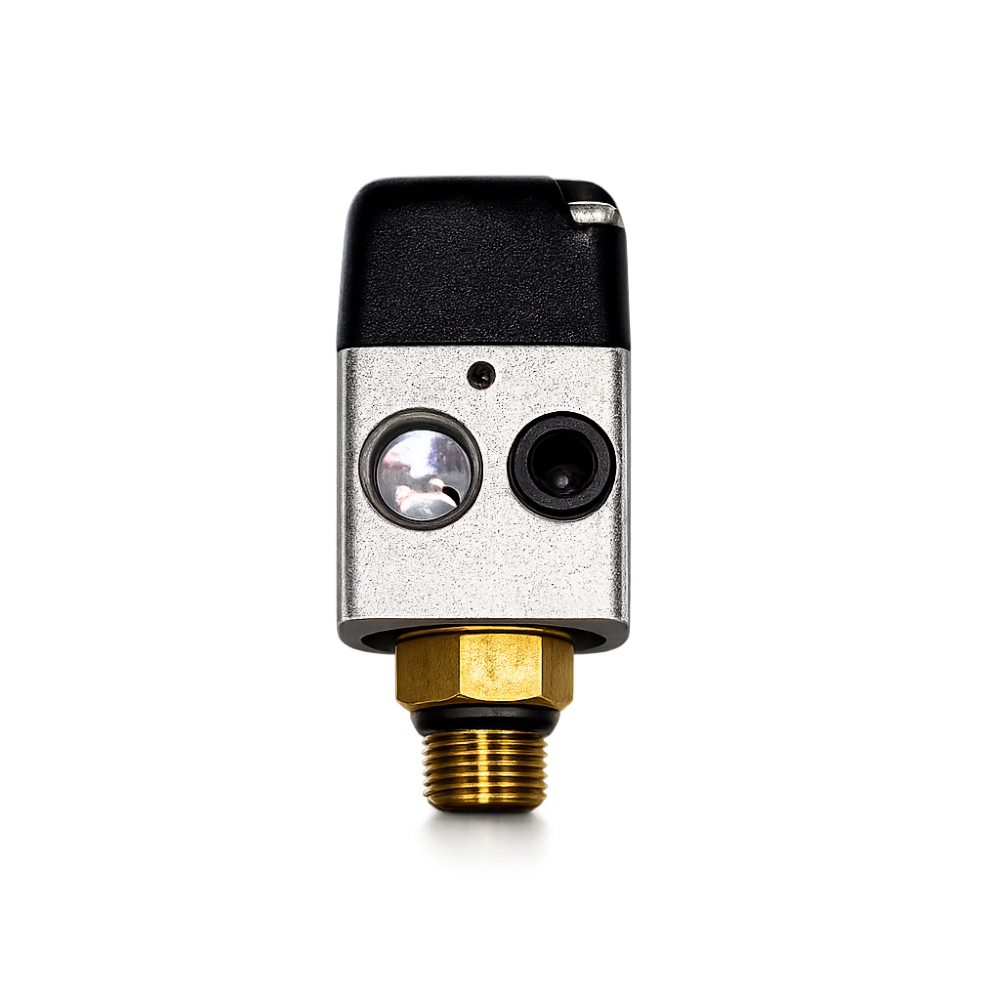

Pneumatic Pilot Check Valve

$66.00

Inc GST
In Stock
Make an Enquiry

This aluminium pilot check valve only allows air to flow through the valve when it receives a pilot signal.

Pilot Check Valve Symbol

Specification APC-01
Port Size G1/8”
Nominal Diameter 4mm
Pressure Range 0.5 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Top Reinforced Plastic
Lubrication Not Required
Applicable Medium Air

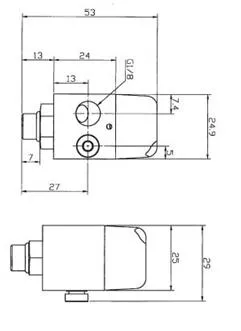

Pilot Check Valve Dimensions

Size 1/8" BSP only
Function Pilot Check Valve
Body Aluminium
Pressure Range 0.5 to 10 BAR
Media Air

.
.
