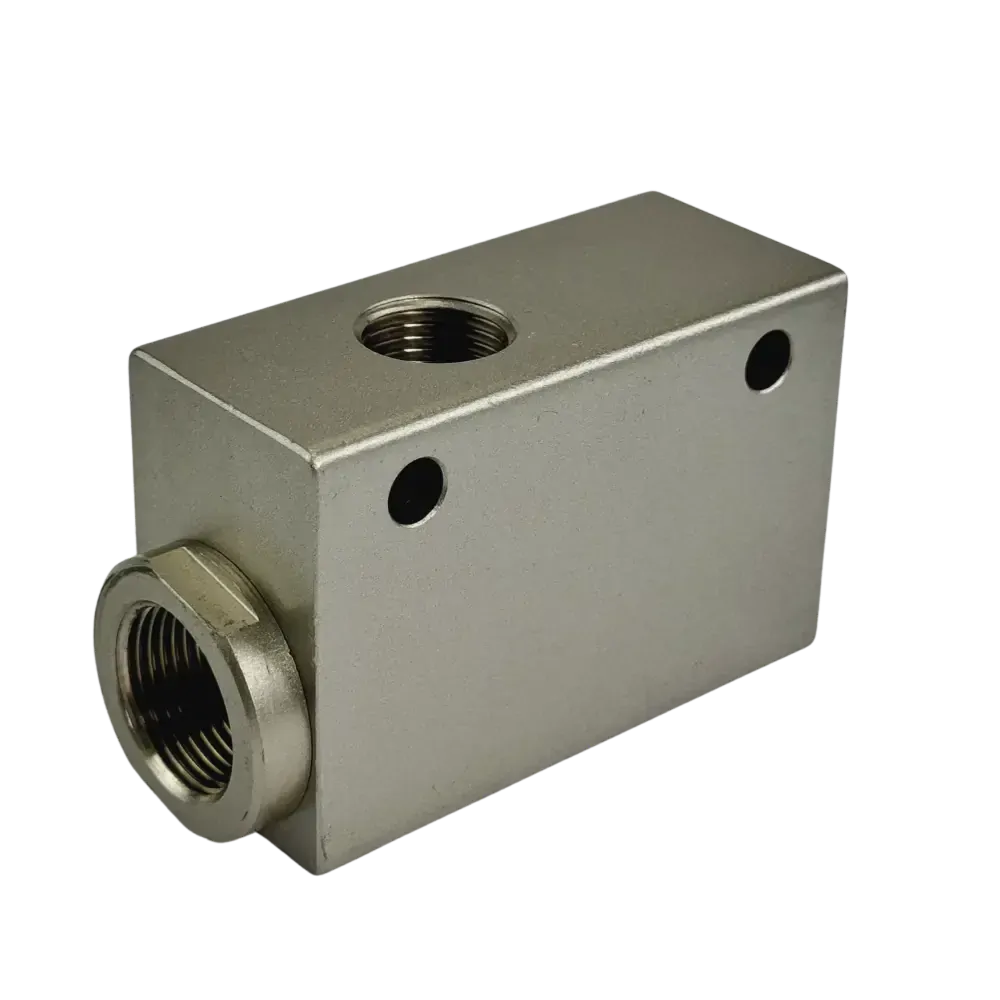

Pneumatic Quick Exhaust Valve

From $22.00

Inc GST
In Stock
Make an Enquiry

These aluminium quick exhaust valves allow the exhaust air of a cylinder or actuator to be exhausted at the source rather than piped back to the control valve. This allows for much faster operation and cycling times of the cylinder or actuator.

Quick Exhaust Valve Symbol

Specification AQE-01 AQE-02 AQE-03 AQE-04 AQE-05 AQE-06
Port Size G1/8” G1/4” G3/8” G1/2” G3/4” G1”
Nominal Diameter 6mm 8mm 10mm 15mm 20mm 25mm
Exhaust Port Size G1/4” G3/8” G3/8” G3/4” G3/4” G1”
Pressure Range 0.5 to 12 BAR
Max Inlet Pressure 12 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
Lubrication Not Required
Applicable Medium Air

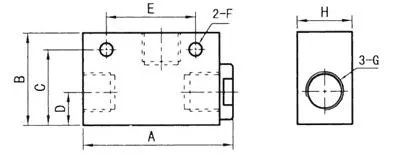

Quick Exhaust Valve Dimensions

Specification A B C D E F G H
AQE-01 40 32 27 11 30 Ø4.3 G1/8” 22
AQE-02 55 40 32 16 39 Ø5.5 G1/4” 26
AQE-03 55 40 32 16 39 Ø5.5 G3/8” 26
AQE-04 99 60 50 20 60 Ø8.5 G1/2" 40
AQE-05 99 60 50 20 60 Ø8.5 G3/4” 40
AQE-06 113 75 63 26 80 Ø8.5 G1” 50

All dimensions in mm unless shown otherwise.

Size 1/8" to 1" BSP
Function Quick Exhaust Valve
Body Aluminium
Pressure Range 0.5 to 12 BAR
Media Air

.
.
