Features:
Size 4mm ~ 22mm
Length 1m or 8m
Function Valve / Piston / Rotary
Pressure Range Up to 150 Bar
Temperature 260°C
pH 0 ~ 14

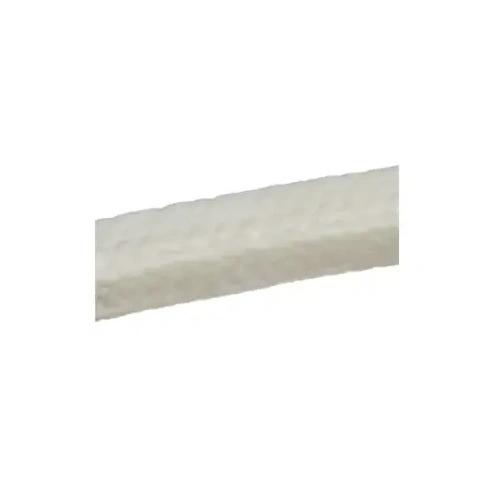

Expanded PTFE fiber made into a square braided packing gland. This is a very wide ranging packing gland and is applicable over many industries and media types. Its main use is for replacing gland packing in pumps and valves. This comes in 1m or 8m lengths.
Valve | Piston | Rotary | |
---|---|---|---|
Temperature (°C) | -210 to 260 | ||
Pressure (Bar) | 150 | 140 | 50 |
Shaft Speed (m/s) | 8 | ||
pH Range | 0~14 |
Model | X | Y |
---|---|---|
PTFEPAC04 | 4mm | 4mm |
PTFEPAC05 | 5mm | 5mm |
PTFEPAC06 | 6mm | 6mm |
PTFEPAC08 | 8mm | 8mm |
PTFEPAC10 | 10mm | 10mm |
PTFEPAC12 | 12mm | 12mm |
PTFEPAC14 | 14mm | 14mm |
PTFEPAC16 | 16mm | 16mm |
PTFEPAC19 | 19mm | 19mm |
PTFEPAC20 | 20mm | 20mm |
PTFEPAC22 | 22mm | 22mm |
*Packing Glands have a tolerance of 0.5mm when measured due to compresibility
