SKU: REFGLA

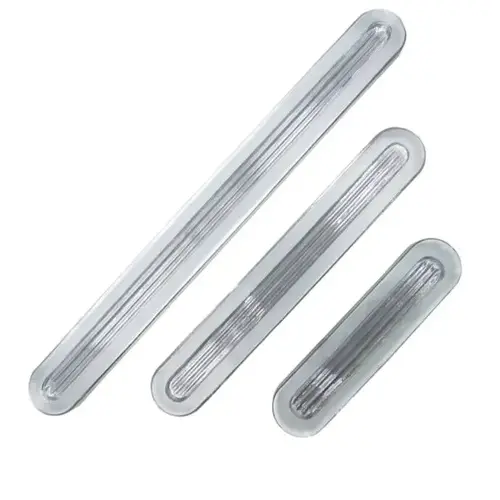

Reflex Gauge Glass Types A&B with Gaskets

From $55.00

Inc GST
In Stock
Make an Enquiry

Sizes 1 through to 9 Reflex Gauge Glass. This is made out of high purity borosilicate gauge glass which has a low thermal expansion so is ideal for steam and high temperature applications.

Size Number Length Width Type A Width Type B Thickness
0 95mm 30mm 34mm 17mm
1 115mm 30mm 34mm 17mm
2 140mm 30mm 34mm 17mm
3 165mm 30mm 34mm 17mm
4 190mm 30mm 34mm 17mm
5 220mm 30mm 34mm 17mm
6 250mm 30mm 34mm 17mm
7 280mm 30mm 34mm 17mm
8 320mm 30mm 34mm 17mm
9 340mm 30mm 34mm 17mm

Widths 30mm & 34mm
Wall Thickness 17mm
Length Sizes 1 to 9
Types A and B

.
