SKU: GVC

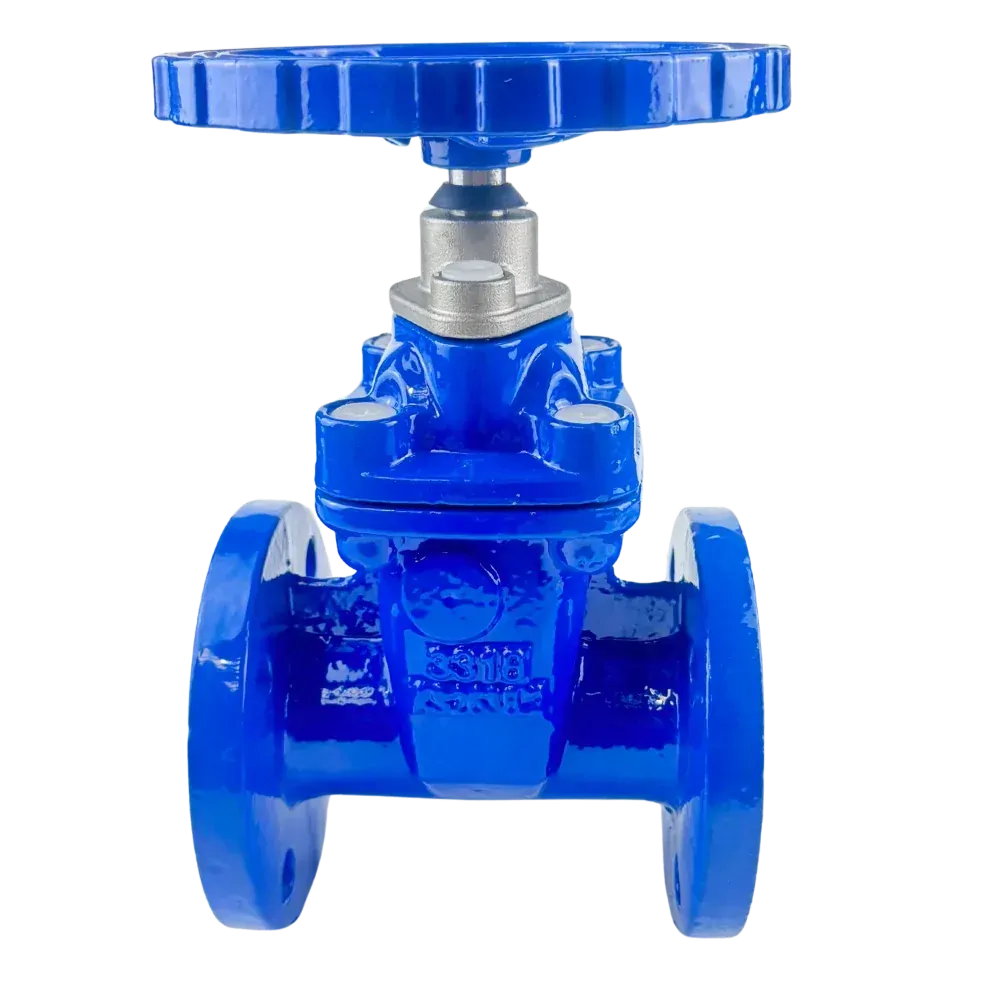

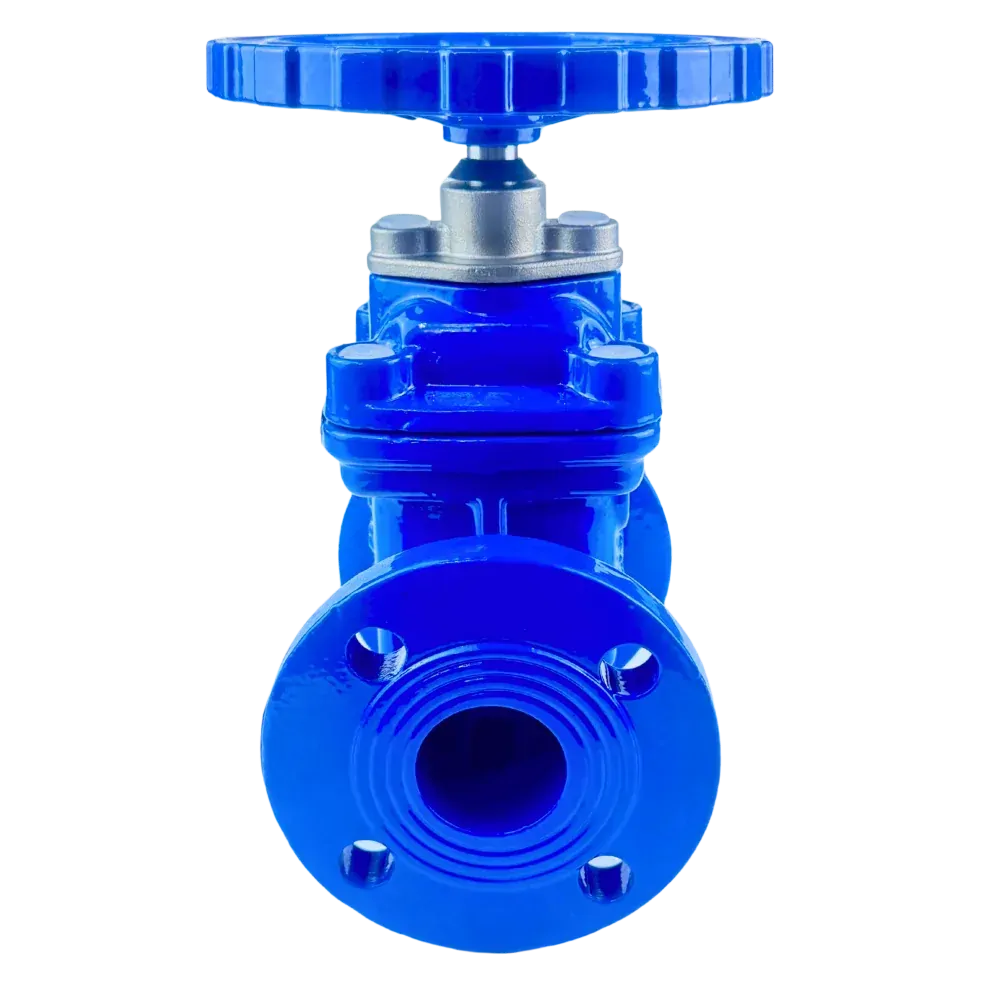

Resilient Seated Ductile Iron Gate Valve

From $170.50

Inc GST
In Stock
Make an Enquiry
  • Flanged Ductile Iron Resilient Seated Gate Valve (Sluice Valve)
  • Non Rising Stem
  • EPDM Seat
  • 0 to 16 Bar Pressure Range
  • 0°C to 80°C Temperature Range
  • AS4087 PN16 Flange (similar to Table D)
  • Watermakr & Standards Mark Approved

Cast Iron Resilient Seated Gate Valve

DN L D D1 D2 b f n-d H W Table E Flange
50 178 150 114 90 18 3 4-18 270 180 Yes
65 190 165 127 103 18 3 4-18 280 180 Yes
80 203 185 146 122 18 3 4-18 290 200 Yes
100 229 215 178 154 20 3 4-18 315 200 Number of Holes Different
125 254 255 210 187 21 3  8-18 410 260 Yes
150 267 280 235 211 23 3 8-18 410 280 Bolt Size Different
200 292 335 292 268 23 3 8-18 515 320 Bolt Size Different
225 330 405 324 300 24 3 8-18 560 320 N/A
250 330 405 356 328 24 3 8-22 605 320 Number of Holes Different
300 356 455 406 378 30 4 12-22 695 450 Bolt Size Different
350 381 525 470 438 33 4 12-26 790 450 Bolt Size Different
375 406 580 795 463 33 4 12-26 880 450 N/A
400 406 580 521 489 33 4 12-26 970 560 Yes
450 432 640 584 552 33 4 12-26 1045 560 Number of Holes Different
500 457 705 641 609 35 4 16-26 1120 800 Bolt Size Different
600 508 825 756 720 42 5 16-30 1320 800 Bolt Size Different

All dimensions in mm unless shown otherwise.

Cast Iron Resilient Seated Gate Valve

Number Part Material
1 Body AS 1831 500-7
2 Wedge AS 1831 500-7 + EPDM
3 Stem SS431
4 Stem Nut Bronze C83600
5 Bonnet Gasket EPDM
6 Bolt SS316
7 Bonnet Gasket AS 1831 500-7
8 Up Sealing NBR
9 Washer Nylon
10 Bushing Nut Bronze C83600
11 O-Ring NBR
12 O-Ring NBR
13 Dust Guard NBR
14 Handwheel AS 1831 500-7

Size 50mm to 600mm
Body Jotun Powder Coated Ductile Iron
Seat EPDM
Pressure Range 0 to 16 BAR
Operation Handwheel non rising stem

Others Also Bought

GVC

Resilient Seated Ductile Iron Gate Valve

Features:

Size 50mm to 600mm
Body Jotun Powder Coated Ductile Iron
Seat EPDM
Pressure Range 0 to 16 BAR
Operation Handwheel non rising stem

Description:

  • Flanged Ductile Iron Resilient Seated Gate Valve (Sluice Valve)
  • Non Rising Stem
  • EPDM Seat
  • 0 to 16 Bar Pressure Range
  • 0°C to 80°C Temperature Range
  • AS4087 PN16 Flange (similar to Table D)
  • Watermakr & Standards Mark Approved
.

Resilient Seated Ductile Iron Gate Valve

GVC

Dimensions:

Cast Iron Resilient Seated Gate Valve

DN L D D1 D2 b f n-d H W Table E Flange
50 178 150 114 90 18 3 4-18 270 180 Yes
65 190 165 127 103 18 3 4-18 280 180 Yes
80 203 185 146 122 18 3 4-18 290 200 Yes
100 229 215 178 154 20 3 4-18 315 200 Number of Holes Different
125 254 255 210 187 21 3  8-18 410 260 Yes
150 267 280 235 211 23 3 8-18 410 280 Bolt Size Different
200 292 335 292 268 23 3 8-18 515 320 Bolt Size Different
225 330 405 324 300 24 3 8-18 560 320 N/A
250 330 405 356 328 24 3 8-22 605 320 Number of Holes Different
300 356 455 406 378 30 4 12-22 695 450 Bolt Size Different
350 381 525 470 438 33 4 12-26 790 450 Bolt Size Different
375 406 580 795 463 33 4 12-26 880 450 N/A
400 406 580 521 489 33 4 12-26 970 560 Yes
450 432 640 584 552 33 4 12-26 1045 560 Number of Holes Different
500 457 705 641 609 35 4 16-26 1120 800 Bolt Size Different
600 508 825 756 720 42 5 16-30 1320 800 Bolt Size Different

All dimensions in mm unless shown otherwise.

.

Resilient Seated Ductile Iron Gate Valve

GVC

Construction:

Cast Iron Resilient Seated Gate Valve

Number Part Material
1 Body AS 1831 500-7
2 Wedge AS 1831 500-7 + EPDM
3 Stem SS431
4 Stem Nut Bronze C83600
5 Bonnet Gasket EPDM
6 Bolt SS316
7 Bonnet Gasket AS 1831 500-7
8 Up Sealing NBR
9 Washer Nylon
10 Bushing Nut Bronze C83600
11 O-Ring NBR
12 O-Ring NBR
13 Dust Guard NBR
14 Handwheel AS 1831 500-7
