SKU: POS-A

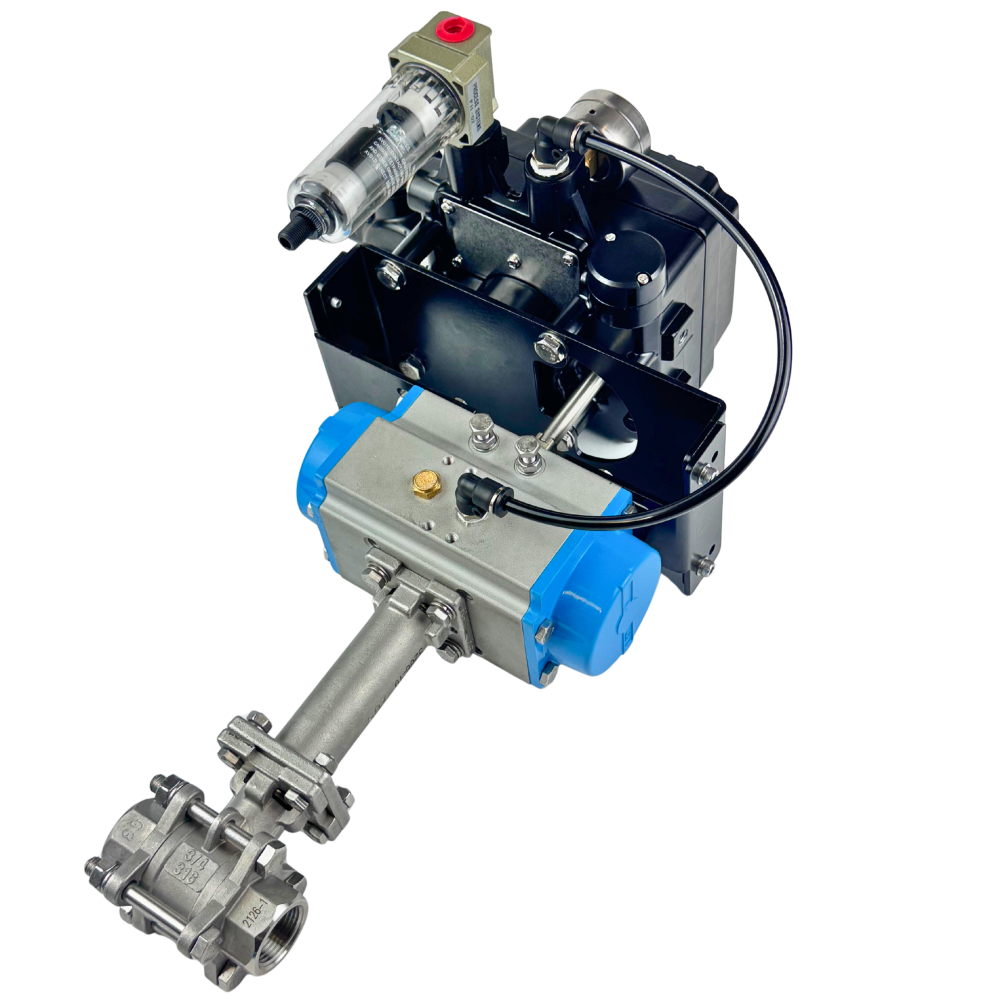

Rotary Electro Pneumatic Positioner 4-20mA input/output. DA/SR Actuator

$1,347.50

Inc GST
In Stock
Make an Enquiry

Analogue electro pneumatic positioners for rotary 1/4 turn (90 degree turn) pneumatic actuators. Comes standard with namur interface so will direct mount onto most actuators.

Input Signal 4 to 20mA
Impedance 250 +/- 15 Ω
Supply Pressure 1.4 to 7kgf/cm² (20~100psi) (Clean Dry Air Recommended)
Air Connection G1/4”
Gauge Connection G1/8”
Conduit G1/2”
Weather Protection IP66
Ambient Temperature -20°C to 70°C
Linearity
Hysteresis 1.50%
Sensitivity 0.40%
Air Consumption 3 LPM @1.5 BAR
Flow Capactiy 8 LPM
Material Die Cast Aluminium
Weight 2.8kg

Electro Pneumatic Analogue Smart Positioner

Input Signal 4 to 20mA
Output Signal 4 to 20mA
Body Aluminium
IP Rating IP66

POS-A

Rotary Electro Pneumatic Positioner 4-20mA input/output. DA/SR Actuator

Features:

Input Signal 4 to 20mA
Output Signal 4 to 20mA
Body Aluminium
IP Rating IP66

Description:

Analogue electro pneumatic positioners for rotary 1/4 turn (90 degree turn) pneumatic actuators. Comes standard with namur interface so will direct mount onto most actuators.

Input Signal 4 to 20mA
Impedance 250 +/- 15 Ω
Supply Pressure 1.4 to 7kgf/cm² (20~100psi) (Clean Dry Air Recommended)
Air Connection G1/4”
Gauge Connection G1/8”
Conduit G1/2”
Weather Protection IP66
Ambient Temperature -20°C to 70°C
Linearity
Hysteresis 1.50%
Sensitivity 0.40%
Air Consumption 3 LPM @1.5 BAR
Flow Capactiy 8 LPM
Material Die Cast Aluminium
Weight 2.8kg
.

Rotary Electro Pneumatic Positioner 4-20mA input/output. DA/SR Actuator

POS-A

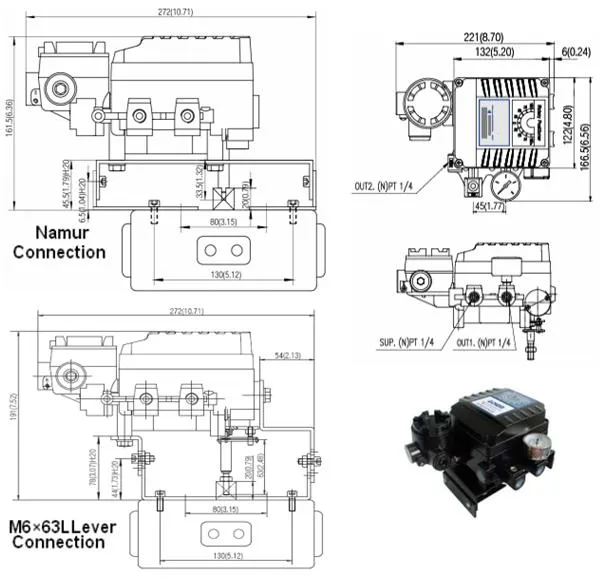

Dimensions:

Electro Pneumatic Analogue Smart Positioner

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.

.
