SKU: SE

Spring Return Electric Actuator IECEX

From $15,196.50

Inc GST
In Stock
Make an Enquiry

These fail safe (spring return) quarter turn (90 degree turn) electric actuators come with a hazardous area certification. This makes them ideal for applications where a fail safe electric actuator is required that also operates in a hazardous area environment. All come standard with a visual indicator, built in thermal protection and IP68 weather protection.

Model Torque (Nm) Nominal Power (Watt) Running Time (sec) Spring Return Time (sec) Mounting (ISO 5211) Shaft (mm) Depth of Shaft (mm)
SE-500 50 50 7 3 F07 17 30
SE-1300 130 130 7 8 F10 22 41
SE-2000 200 130 11 12 F12 27 45
SE-2600 260 130 14 12 F12 27 45

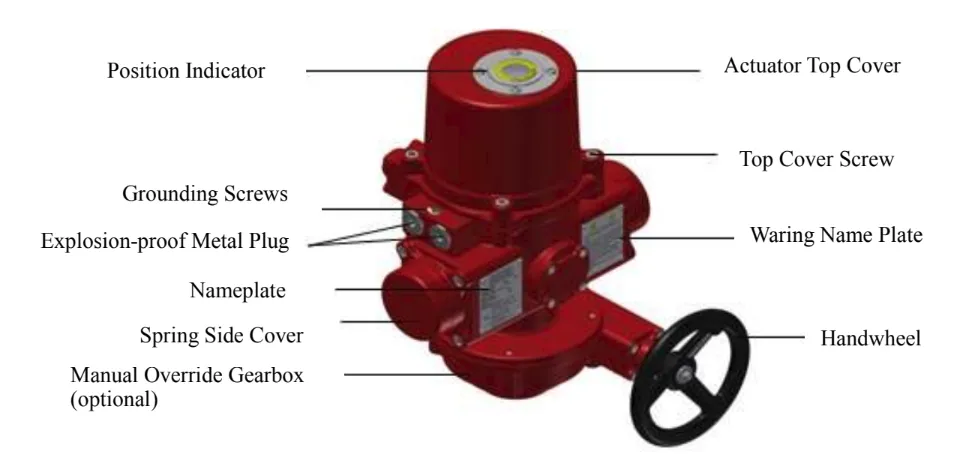

Spring Return Explosion Proof Electric Actuator Construction

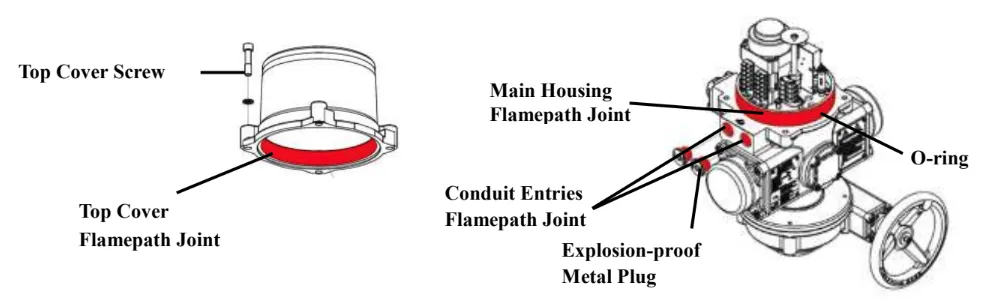

Spring Return Explosion Proof Actuator Exploded View

Torque 50 to 250 NM
Function Drive Open, Spring Return (Fail Safe)
Body Powder Coated Die Cast Aluminium
Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
Rating IP68

Others Also Bought

SE

Spring Return Electric Actuator IECEX

Features:

Torque 50 to 250 NM
Function Drive Open, Spring Return (Fail Safe)
Body Powder Coated Die Cast Aluminium
Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
Rating IP68

Description:

These fail safe (spring return) quarter turn (90 degree turn) electric actuators come with a hazardous area certification. This makes them ideal for applications where a fail safe electric actuator is required that also operates in a hazardous area environment. All come standard with a visual indicator, built in thermal protection and IP68 weather protection.

Model Torque (Nm) Nominal Power (Watt) Running Time (sec) Spring Return Time (sec) Mounting (ISO 5211) Shaft (mm) Depth of Shaft (mm)
SE-500 50 50 7 3 F07 17 30
SE-1300 130 130 7 8 F10 22 41
SE-2000 200 130 11 12 F12 27 45
SE-2600 260 130 14 12 F12 27 45
.

Spring Return Electric Actuator IECEX

SE

Construction:

Spring Return Explosion Proof Electric Actuator Construction

Spring Return Explosion Proof Actuator Exploded View

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.
