SKU: DPSR

Square DIN Plug Rectified

From $27.50

Inc GST
In Stock
Make an Enquiry

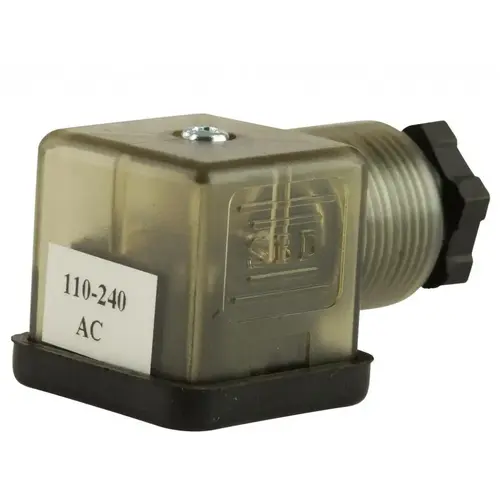

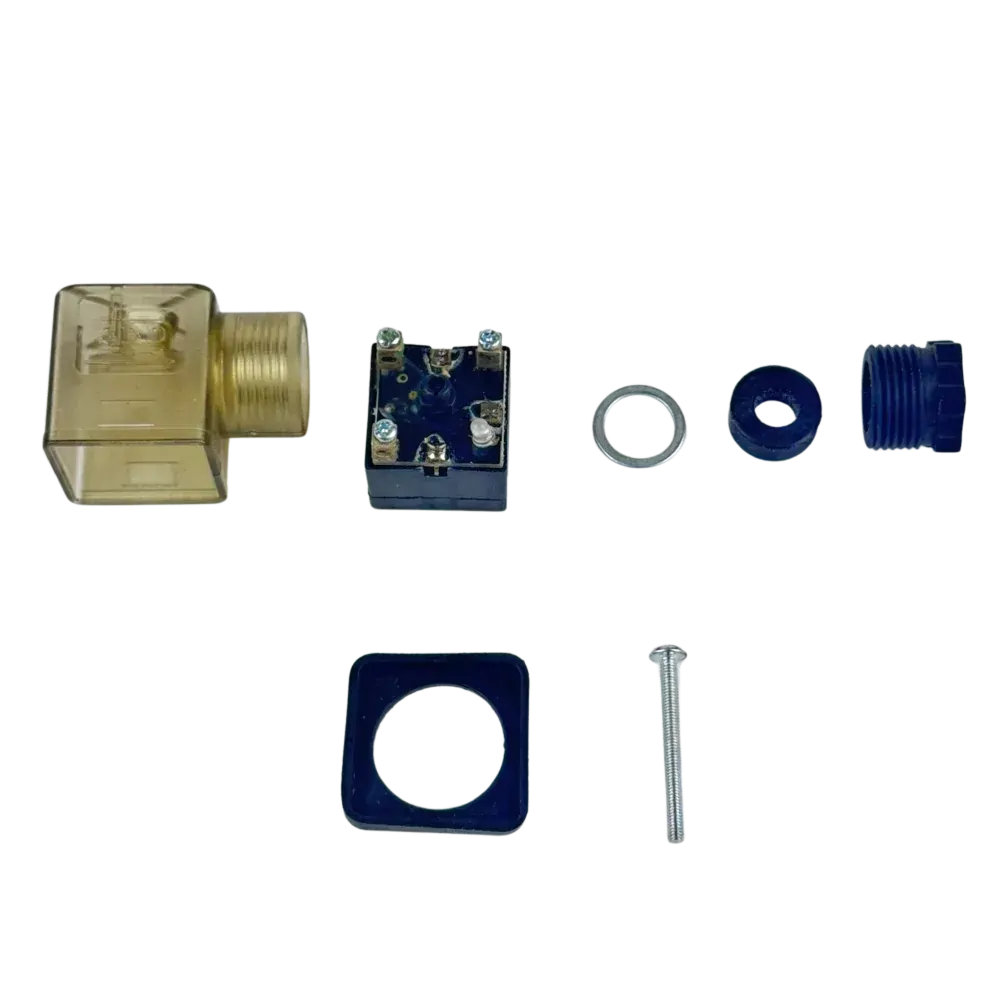

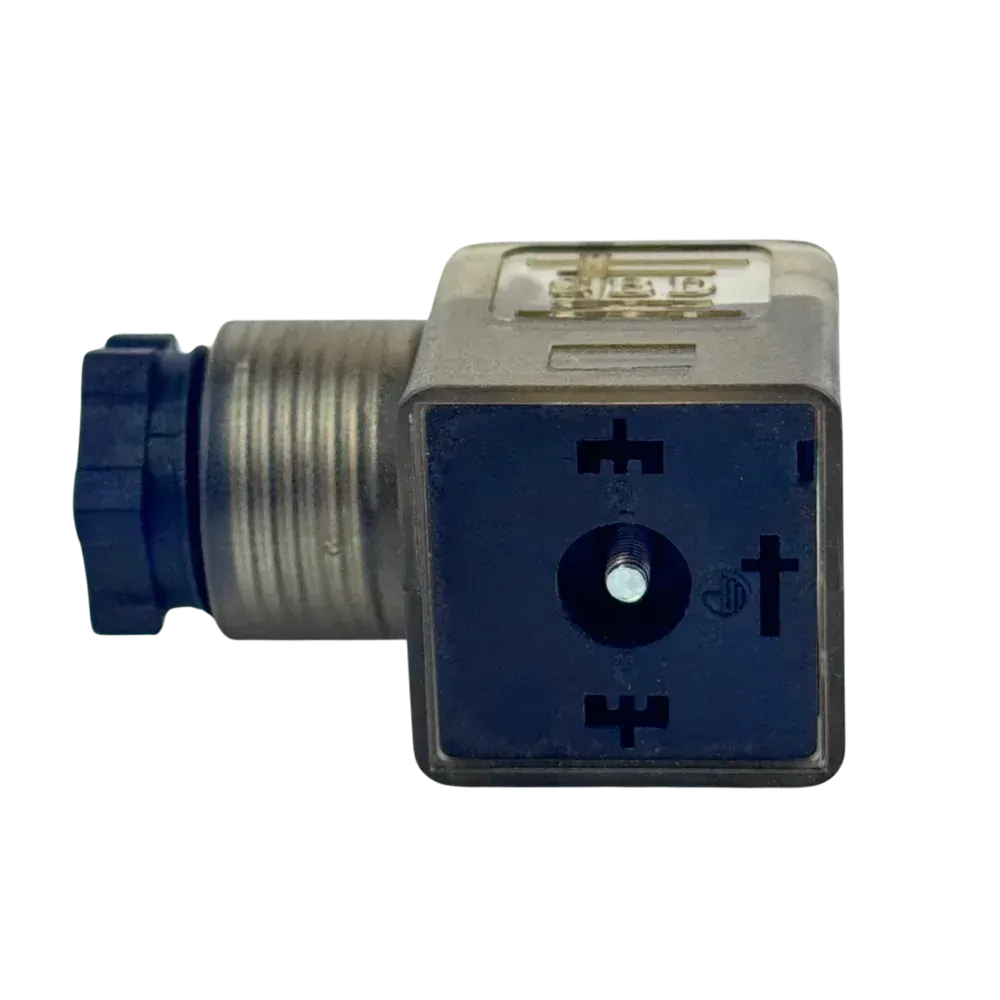

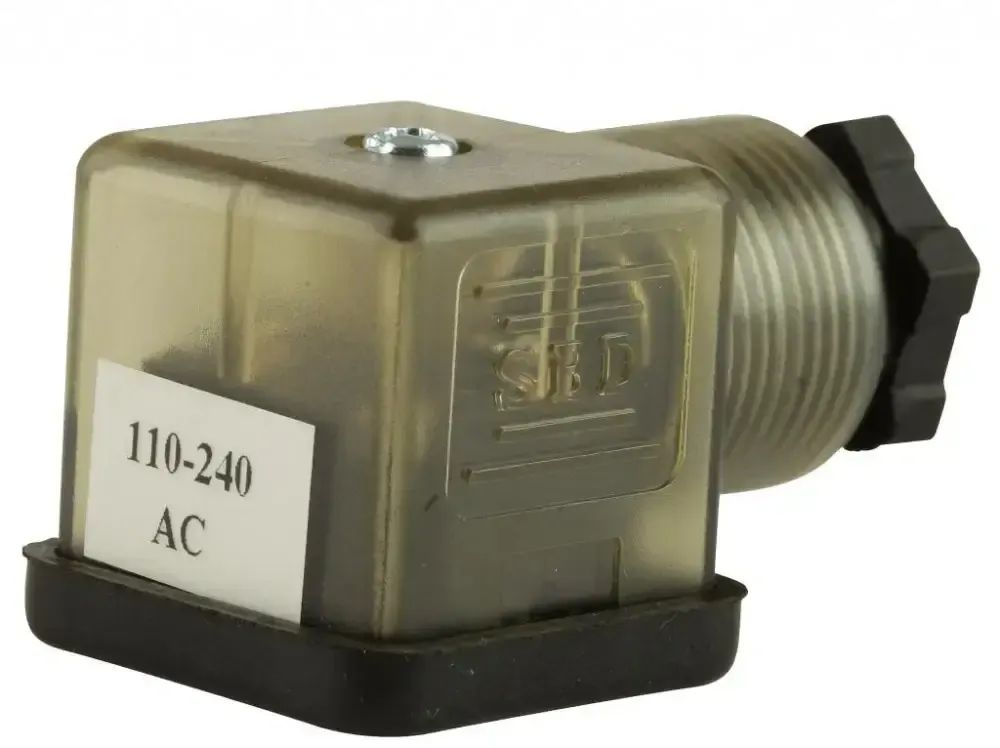

Hirschman type connector DIN 43650 for solenoid valve. Interface between the solenoid coil terminal and the supply wires.

Model Plug Dimensions (mm) Description Gromet (ID mm) Cable Gland Voltage Range Pin Details
DPSR-6-H-PG11 28 x 28 Square Rectified DIN 43650A 6 PG11 110/240vAC »110/240vDC 2 Pin + Earth 18mm Pin spacing
DPSR-6-L-PG11 28 x 28 Square Rectified DIN 43650A 6 PG11 12/24vAC »12/24vDC 2 Pin + Earth 18mm Pin spacing

Rectified Square DIN Plug

Rectified Square DIN Plug

Shape Rectangle
Voltage 12 to 110v AC/DC
Features Illuminated LED + Rectification

.
