SKU: ES57

Stainless Steel 3 Way Direct Acting Normally Closed Solenoid Valve

From $82.49

Inc GST
In Stock
Make an Enquiry
  • 3 way 2 Position Normally Closed Solenoid Valve
  • 304 Stainless Steel Body, FKM Seat
  • -10°C to 95°C Temperature Range
  • Comes with Coil & LED DIN Plug (IP65)
  • Exhaust port through the top of operator is 1/8" BSP male
Model Port Size (BSP) Orifice ømm CV Media Pressure Coil Specifications
ES57-1-1-*V 1/8 1 0.05 0 to 16 BAR SC-N14
21 Watts
20 Volt Amps
ES57-2-1.5-*V 1/4 1.5 0.1 0 to 13 BAR

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

3 way normally closed stainless steel solenoid valve

Model G L K A B C H Weight Kg
ES57-1-1-*V 1/8 34 76 72 80 Ø38 36 0.8
ES57-2-2-*V 1/4 34 76 72 80 Ø38 36 0.8

All dimensions in mm unless shown otherwise.

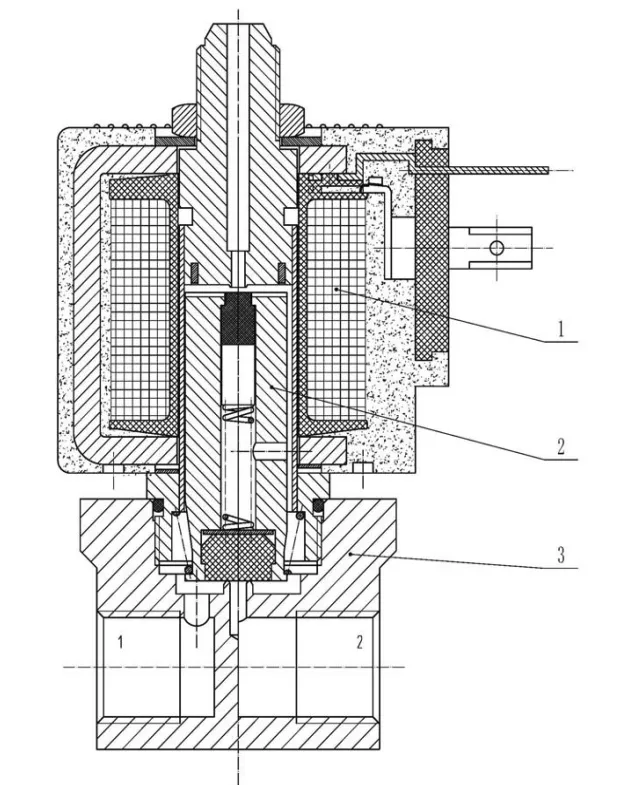

Three way Normally Closed Stainless Steel Solenoid Valve

Number Item Material
1 Coil Epoxy
2 Armature Martensitic stainless steel
3 Valve Body 304 Stainless Steel

Size 1/8" to 1/4" BSP only
Function 3 way normally Closed (power to open)
Valve Operation Direct Acting
Body 304 Stainless Steel
Seat FKM
Pressure Range 0 to 16 BAR (depend on size)
Media Petrochemical, Air, Fluid

.
.
