Features:
Size 1/4" to 2"
Function BSP female to NPT male Adaptor
Body 316 Stainless Steel
This BSP to NPT male to female adaptor (M&F fitting) is made from 316 Stainless Steel. The female fitting is BSP thread standard and the male fitting is NPT thread standard. These are very useful for changing thread standards with one fitting. This is usually the case where the machine is made overseas and you want to adapt to available local thread standards.

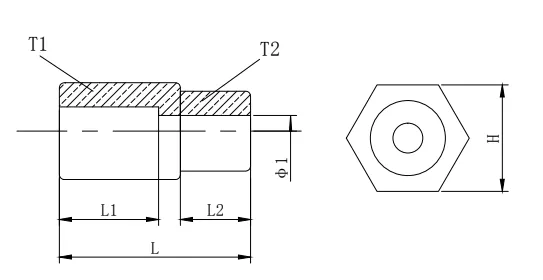

Size | L | L1 | L2 | ⌀1 | H | T1 | T2 |
---|---|---|---|---|---|---|---|
1/4" | 30 | 12.5 | 13 | 6 | 17 | BSP | NPT |
3/8" | 35 | 15 | 14.5 | 6 | 22 | ||
1/2" | 38 | 16 | 16.5 | 10 | 27 | ||
3/4" | 40 | 17 | 17.5 | 16 | 32 | ||
1" | 44 | 19 | 19.5 | 22 | 38 | ||
1 1/4" | 50 | 21.5 | 22 | 27 | 50 | ||
1 1/2" | 50 | 21.5 | 22 | 33 | 55 | ||
2" | 58 | 25 | 26 | 45 | 65 |
All dimensions in mm unless shown otherwise.
