Features:
Size 1/8" to 4" BSP
Function Hex Nipple
Body 316 Stainless Steel

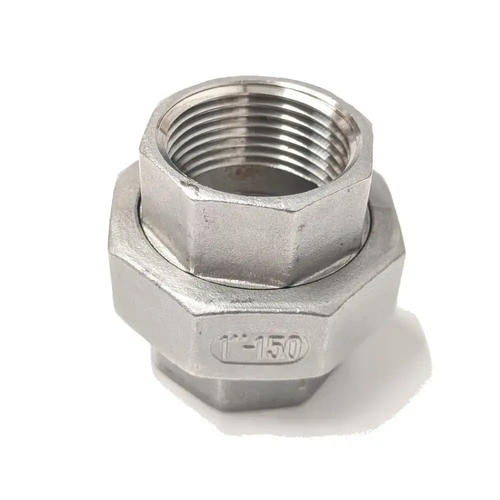

Barrel Union (sometimes known as a mac union) made of 316 Stainless Steel. These are ideal for joining two threaded ends of pipe/fittings while allowing for easy removal/maintenance in the future. The two halves of the fitting can come apart by undoing the middle retaining nut so you do not have to start at one end of the pipework to remove a valve/fitting. These have a metal to metal mating face so need to be done up tightly. Pressure rating is 150 pound.

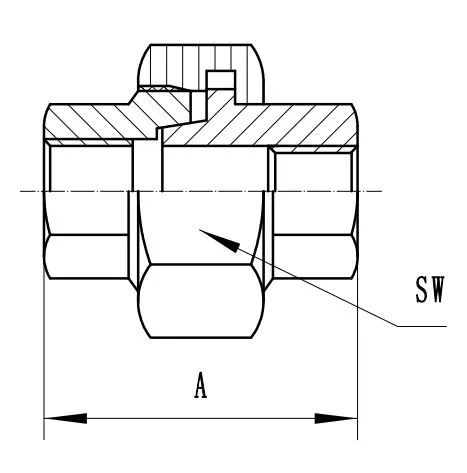

Model | Size | SW | A |
---|---|---|---|
SF8004 | 1/2" | 34.5 | 38 |
SF8005 | 3/4" | 40.7 | 41 |
SF8006 | 1" | 50 | 48.5 |
SF8007 | 1-1/4" | 59 | 51 |
SF8008 | 1-1/2" | 67 | 56.5 |
SF8009 | 2" | 80 | 62.5 |
SF8010 | 2-1/2" | 98 | 65 |
SF8011 | 3" | 115 | 69 |
SF8012 | 4" | 141 | 75 |
