Features:
Size 50mm to 300mm
Body 316 Stainless Steel
Seat FKM
Disc 316 Stainless Steel

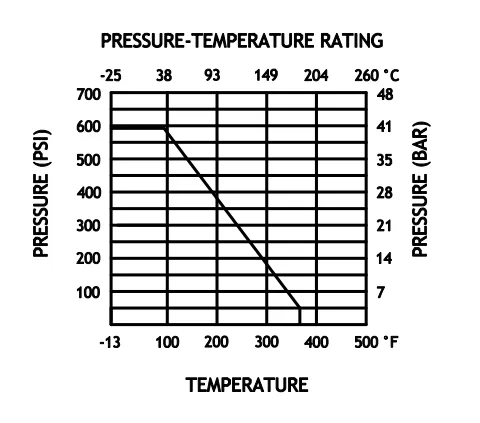

Pressure Range 0 to 40 BAR
Temperature 0 to 180°C

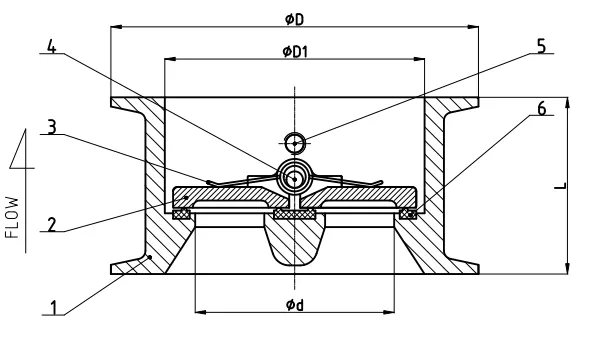

Size | d | D | D1 | L | Weight (kg) |
---|---|---|---|---|---|
50mm | 48 | 101 | 65 | 43 | 1 |
65mm | 59 | 120 | 80 | 46 | 1.42 |
80mm | 72 | 133 | 94 | 64 | 2.32 |
100mm | 90 | 162 | 117 | 64 | 3.26 |
125mm | 110 | 192 | 145 | 70 | 5.08 |
150mm | 135 | 218 | 170 | 76 | 7.02 |
200mm | 175 | 273 | 224 | 89 | 11.76 |
250mm | 222 | 328 | 265 | 114 | 19.9 |
300mm | 264 | 378 | 310 | 114 | 27.6 |
All dimensions in mm unless otherwise shown.
Suitable Flanges (Black will fit, Red will not), showing innner diameter of bolt hole
DCVS | Outer Diameter | DIN | ANSI | AS2129 | |||||
---|---|---|---|---|---|---|---|---|---|
PN10 | PN16 | PN25 | PN40 | 150Lb | 300Lb | Table D | Table E | ||
DN50 | 101 | 107 | 107 | 107 | 107 | 102 | 108 | 96 | 96 |
DN65 | 120 | 127 | 127 | 127 | 127 | 120.5 | 127 | 109 | 109 |
DN80 | 133 | 142 | 142 | 142 | 142 | 133.5* | 146.5 | 128 | 128 |
DN100 | 162 | 162 | 162 | 168 | 168 | 171.5 | 178 | 160 | 160 |
DN125 | 192 | 192 | 192 | 194 | 194 | 194 | 213 | 192 | 192 |
DN150 | 218 | 218 | 218 | 224 | 224 | 219.5 | 248 | 217 | 213 |
DN200 | 273 | 273 | 273 | 284 | 290 | 276.5 | 305 | 274 | 270 |
DN250 | 328 | 328 | 329 | 340 | 352 | 337 | 358 | 334 | 334 |
DN300 | 378 | 378 | 384 | 400 | 417 | 407 | 419 | 384 | 380 |
*Bolts will fit on DN80 ANSI 150. Bolt hole size is 19mm and bolt size is 16mm

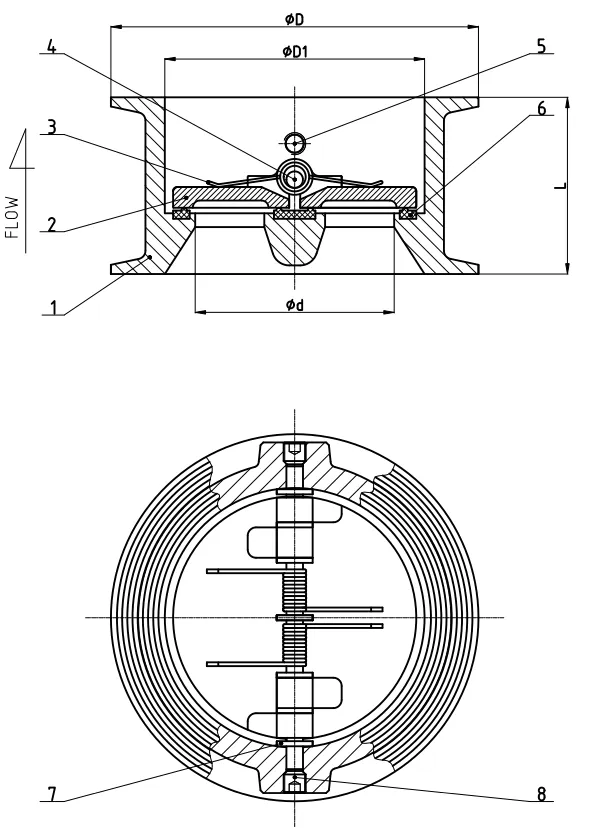

Item | Part | Part Material | QTY |
---|---|---|---|
1 | Body | CF8M | 1 |
2 | Disc | CF8M | 2 |
3 | Spring | SS316 | 2 |
4 | Axle | SS316 | 1 |
5 | Disc Stopper | SS316 | 1 |
6 | Seat | FKM | 1 |
7 | Washer | PTFE | 7 |
8 | Plug | SS304 | 4 |
