SKU: BFSE

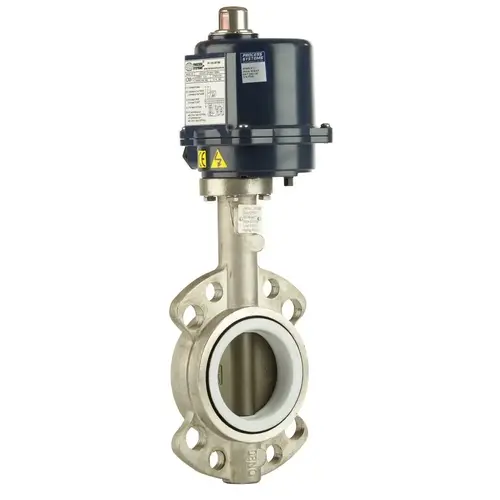

Stainless Steel Electric Butterfly Valve

From $825.00

Inc GST
In Stock
Make an Enquiry
  • 316 Stainless Steel Wafer Electric Butterfly Valve
  • PTFE coated NBR seat, stainless steel splined shaft, 316 SS disc
  • IP67 Electric Actuator
  • Extra limit switches, manual override & visual indicator
Model Size (mm) Actuator Media Pressure Media Temperature
BFS50-E*-T 50 0M-1 Vacuum to 10 BAR -20°C to 120°C
BFS65-E*-T 65 0M-1 Vacuum to 10 BAR -20°C to 120°C
BFS80-E*-T 80 0M-A Vacuum to 10 BAR -20°C to 120°C
BFS100-E*-T 100 0M-2 Vacuum to 10 BAR -20°C to 120°C
BFS125-E*-T 125 0M-3 Vacuum to 10 BAR -20°C to 120°C
BFS150-E*-T 150 0M-4 Vacuum to 10 BAR -20°C to 120°C
BFS200-E*-T 200 0M-4 Vacuum to 10 BAR -20°C to 120°C
BFS250-E*-T 250 0M-6 Vacuum to 10 BAR -20°C to 120°C
BFS300-E*-T 300 0M-7 Vacuum to 10 BAR -20°C to 120°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For sizes over 300mm please contact us.

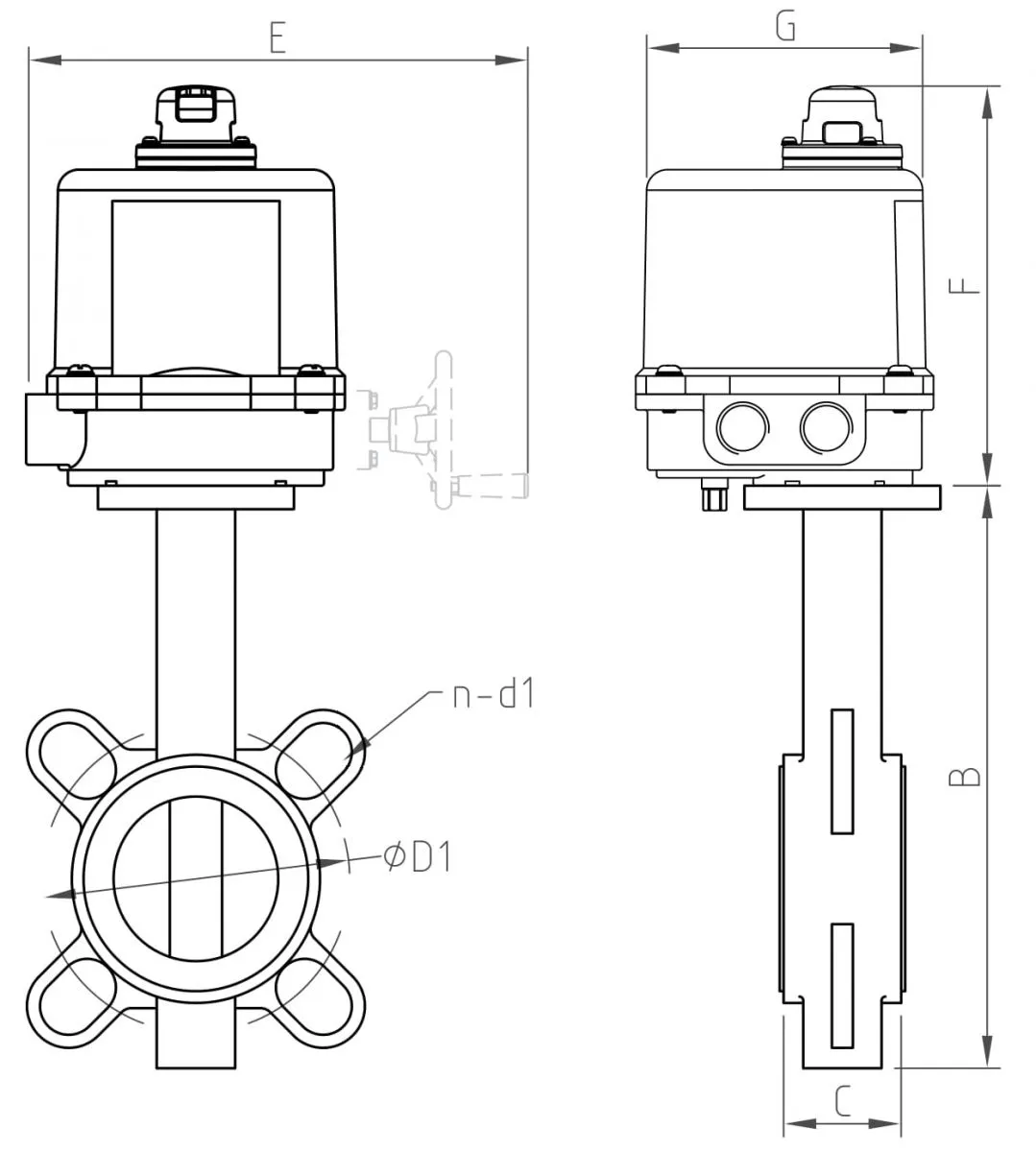

DN Actuator B C F G E BS4504 PN10 ANSI 150 AS2129 Table D AS2129 Table E
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
50 0M-1 210 42 153 106 - 125 4-18 120.5 4-19 114 4-18 114 4-18
65 0M-1 225 44.7 153 106 - 145 4-18 139.5 4-19 127 4-18 127 4-18
80 0M-A 250 45.2 199 106 - 160 4(8)-18 152.5 4-19 146 4-18 146 4-18
100 0M-2 270 52.1 268 181 326 180 4(8)-18 190.5 4(8)-19     178 4(8)-18
125 0M-3 305 54.4 268 181 326 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18
150 0M-4 345 55.8 330 217 392 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22
200 0M-5 415 60.6 330 217 392 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22
250 0M-6 485 65.6 330 217 392 355 4(12)-23 362 4(12)-25     356 4(12)-22
300 0M-7 555 76.9 419 217 347 410 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26

All dimensions in mm unless specified

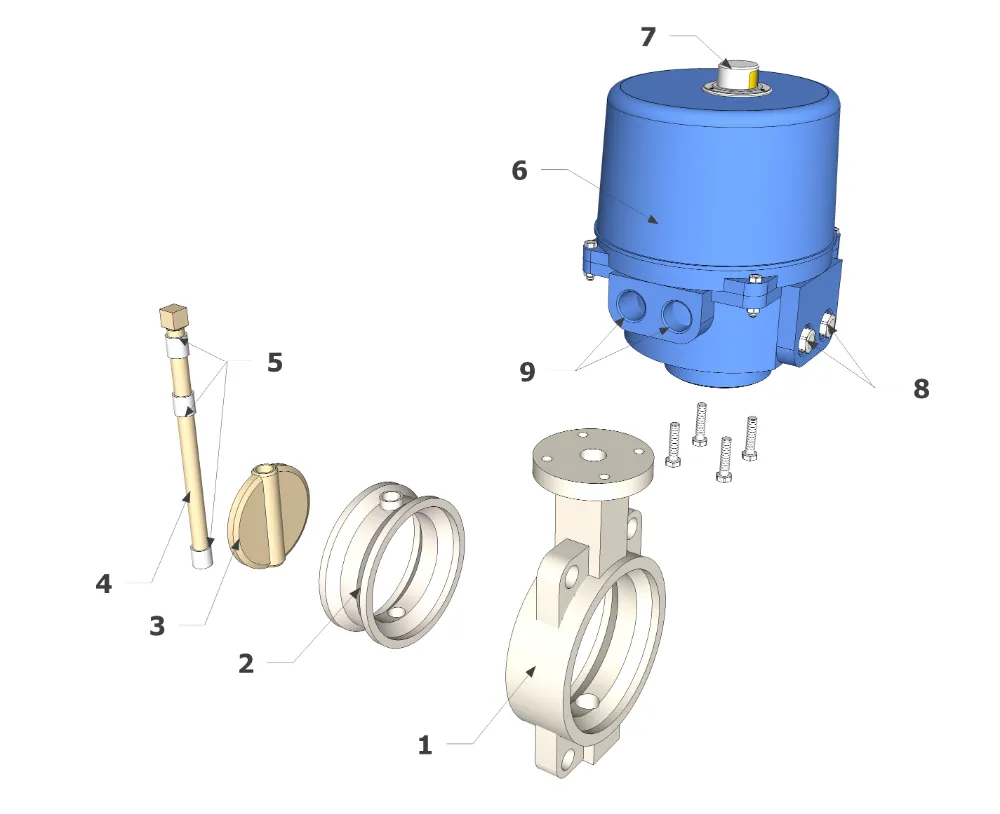

Stainless Steel Electric Butterfly Valve Construction

Number Item Material
1 Body CF8M
2 Seat PTFE Coated NBR
3 Disc CF8M
4 Shaft Stainless Steal
5 Seals Polymers
6 Actuator Housing FBP coated aluminium
7 Indicator Housing Aluminium
8 Stops Stainless Steal
9 Conduit Entries Aluminium

Size 50mm to 300mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Electric

Others Also Bought

BFSE

Stainless Steel Electric Butterfly Valve

Features:

Size 50mm to 300mm
Body 316 Stainless Steel
Seat PTFE coated NBR
Disc 316 Stainless Steel
Pressure 10 BAR
Actuation Electric

Description:

  • 316 Stainless Steel Wafer Electric Butterfly Valve
  • PTFE coated NBR seat, stainless steel splined shaft, 316 SS disc
  • IP67 Electric Actuator
  • Extra limit switches, manual override & visual indicator
Model Size (mm) Actuator Media Pressure Media Temperature
BFS50-E*-T 50 0M-1 Vacuum to 10 BAR -20°C to 120°C
BFS65-E*-T 65 0M-1 Vacuum to 10 BAR -20°C to 120°C
BFS80-E*-T 80 0M-A Vacuum to 10 BAR -20°C to 120°C
BFS100-E*-T 100 0M-2 Vacuum to 10 BAR -20°C to 120°C
BFS125-E*-T 125 0M-3 Vacuum to 10 BAR -20°C to 120°C
BFS150-E*-T 150 0M-4 Vacuum to 10 BAR -20°C to 120°C
BFS200-E*-T 200 0M-4 Vacuum to 10 BAR -20°C to 120°C
BFS250-E*-T 250 0M-6 Vacuum to 10 BAR -20°C to 120°C
BFS300-E*-T 300 0M-7 Vacuum to 10 BAR -20°C to 120°C

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For sizes over 300mm please contact us.

.

Stainless Steel Electric Butterfly Valve

BFSE

Dimensions:

DN Actuator B C F G E BS4504 PN10 ANSI 150 AS2129 Table D AS2129 Table E
D1 n-d1 D1 n-d1 D1 n-d1 D1 n-d1
50 0M-1 210 42 153 106 - 125 4-18 120.5 4-19 114 4-18 114 4-18
65 0M-1 225 44.7 153 106 - 145 4-18 139.5 4-19 127 4-18 127 4-18
80 0M-A 250 45.2 199 106 - 160 4(8)-18 152.5 4-19 146 4-18 146 4-18
100 0M-2 270 52.1 268 181 326 180 4(8)-18 190.5 4(8)-19     178 4(8)-18
125 0M-3 305 54.4 268 181 326 210 4(8)-18 216 4(8)-22 210 4(8)-18 210 4(8)-18
150 0M-4 345 55.8 330 217 392 240 4(8)-23 241.5 4(8)-22 235 4(8)-18 235 4(8)-22
200 0M-5 415 60.6 330 217 392 295 4(8)-23 298.5 4(8)-22 292 4(8)-18 292 4(8)-22
250 0M-6 485 65.6 330 217 392 355 4(12)-23 362 4(12)-25     356 4(12)-22
300 0M-7 555 76.9 419 217 347 410 4(12)-23 432 4(12)-25 406 4(12)-22 406 4(12)-26

All dimensions in mm unless specified

.

Stainless Steel Electric Butterfly Valve

BFSE

Construction:

Stainless Steel Electric Butterfly Valve Construction

Number Item Material
1 Body CF8M
2 Seat PTFE Coated NBR
3 Disc CF8M
4 Shaft Stainless Steal
5 Seals Polymers
6 Actuator Housing FBP coated aluminium
7 Indicator Housing Aluminium
8 Stops Stainless Steal
9 Conduit Entries Aluminium

WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.
