Features:
Size 25mm to 300mm
Body 316 Stainless Steel
Mesh 316 Stainless Steel
Pressure Range 0 to 20 BAR
Flanged ANSI 150
Factory Accredited CE, ISO 9001, API
Model | DN (mm) | Media Pressure | Media Temperature | Screen (MM) |
---|---|---|---|---|
YSSF-025 | 25 | 0 to 20 BAR | -20°C to 180°C | 1 |
YSSF-032 | 32 | 0 to 20 BAR | -20°C to 180°C | 1 |
YSSF-040 | 40 | 0 to 20 BAR | -20°C to 180°C | 1 |
YSSF-050 | 50 | 0 to 20 BAR | -20°C to 180°C | 1 |
YSSF-065 | 65 | 0 to 20 BAR | -20°C to 180°C | 2 |
YSSF-080 | 80 | 0 to 20 BAR | -20°C to 180°C | 2 |
YSSF-100 | 100 | 0 to 20 BAR | -20°C to 180°C | 2 |
YSSF-125 | 125 | 0 to 20 BAR | -20°C to 180°C | 2 |
YSSF-150 | 150 | 0 to 20 BAR | -20°C to 180°C | 2 |
YSSF-200 | 200 | 0 to 20 BAR | -20°C to 180°C | 2 |
YSSF-250 | 250 | 0 to 20 BAR | -20°C to 180°C | 2 |
YSSF-300 | 300 | 0 to 20 BAR | -20°C to 180°C | 2 |
For Sizes above 300mm contact Sales

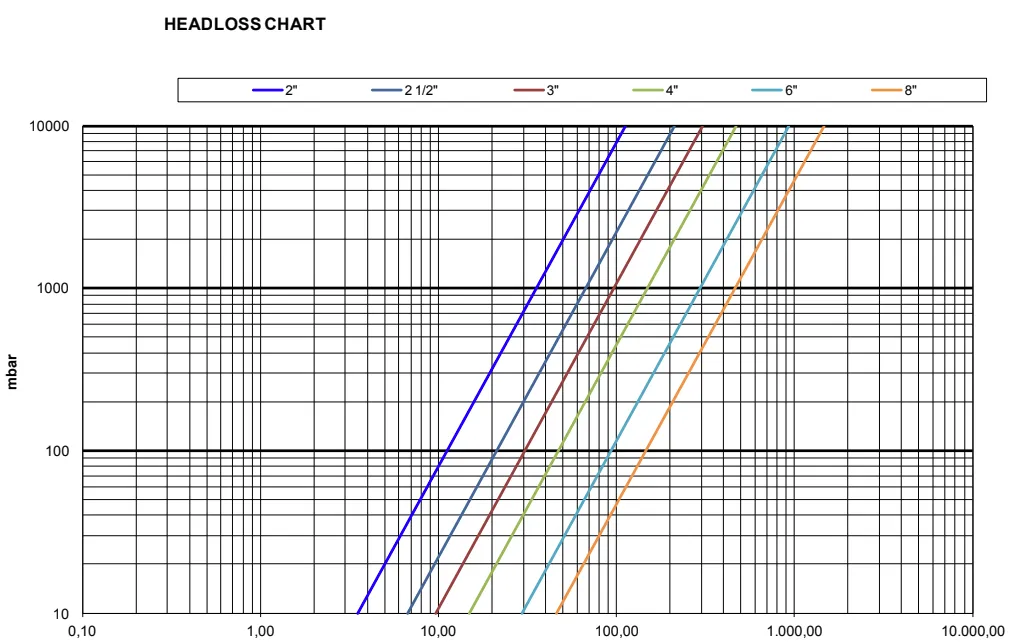

Q(m3/h)
DN | d | L | A | D | C | G | T | f | d1 | M | N | Drain |
---|---|---|---|---|---|---|---|---|---|---|---|---|
25 | 25 | 150 | 100 | 108 | 79.5 | 51 | 12 | 2 | 1 | 15 | 4 | 3/8" |
32 | 32 | 180 | 114 | 117 | 89 | 64 | 3 | 2 | 1 | 15 | 4 | 1/2" |
40 | 40 | 190 | 135 | 127 | 98.5 | 73 | 15 | 2 | 1 | 15 | 4 | 1/2" |
50 | 50 | 210 | 155 | 152 | 120.5 | 92 | 16 | 2 | 1 | 19 | 4 | 1/2" |
65 | 65 | 250 | 189 | 178 | 139.5 | 105 | 18 | 2 | 2 | 19 | 4 | 1/2" |
80 | 80 | 280 | 200 | 190 | 152.5 | 127 | 19 | 2 | 2 | 19 | 4 | 1/2" |
100 | 100 | 340 | 232 | 229 | 190.5 | 157 | 24 | 2 | 2 | 19 | 8 | 1/2" |
125 | 125 | 380 | 274 | 254 | 216 | 186 | 24 | 2 | 2 | 22 | 8 | 1/2" |
150 | 150 | 420 | 326 | 279 | 241 | 216 | 26 | 2 | 2 | 22 | 8 | 1/2" |
200 | 200 | 500 | 397 | 343 | 298.5 | 270 | 29 | 2 | 2 | 22 | 8 | 1/2" |
250 | 250 | 540 | 406 | 362 | 324 | 30.2 | 2 | 2 | 25 | 12 | 1/2" | |
300 | 300 | 610 | 483 | 432 | 381 | 31.8 | 2 | 2 | 25 | 12 | 1/2" |
All dimensions in mm unless shown otherwise.
