SKU: ES55

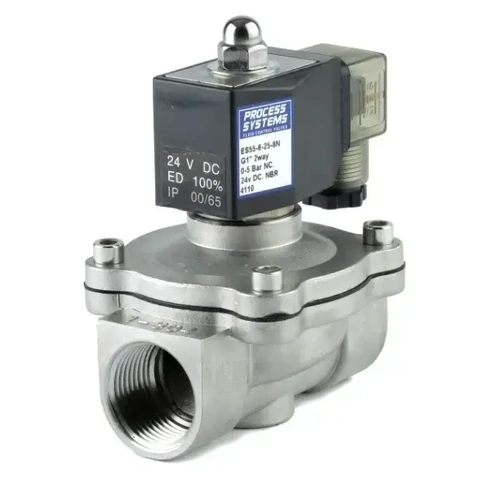

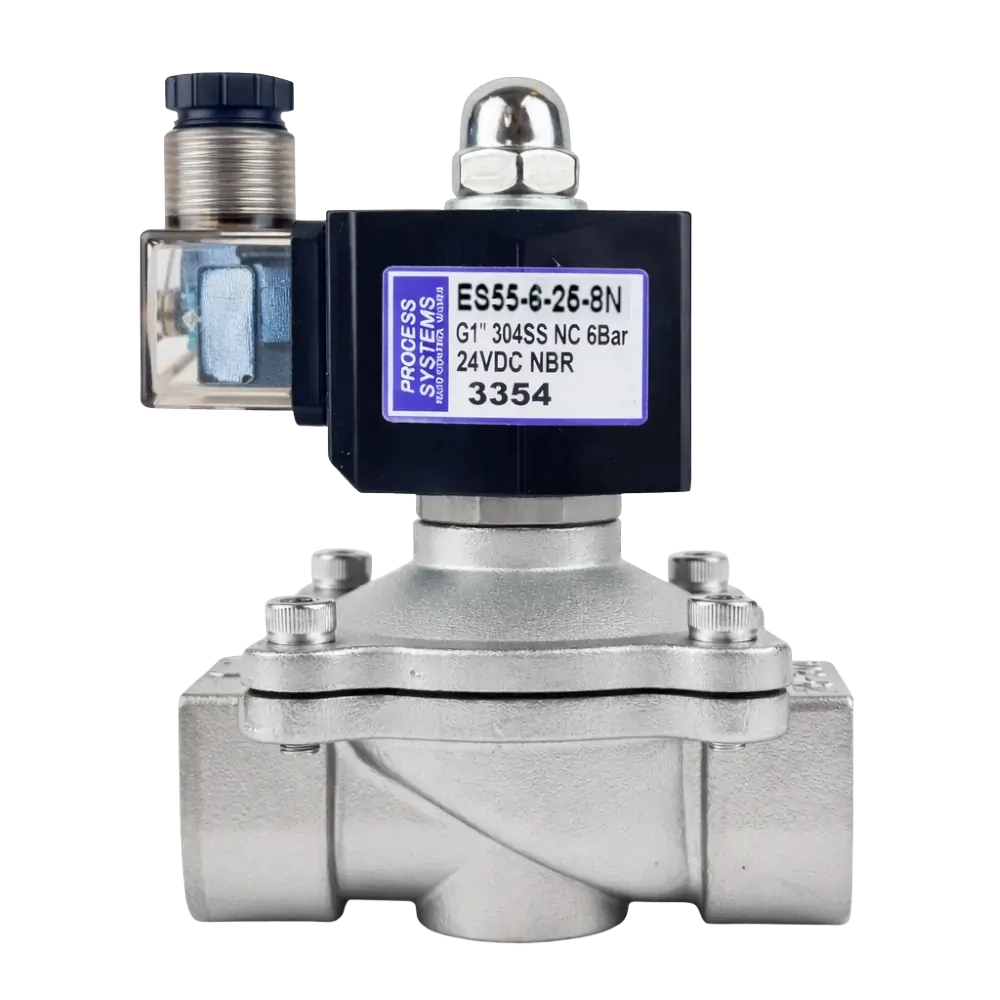

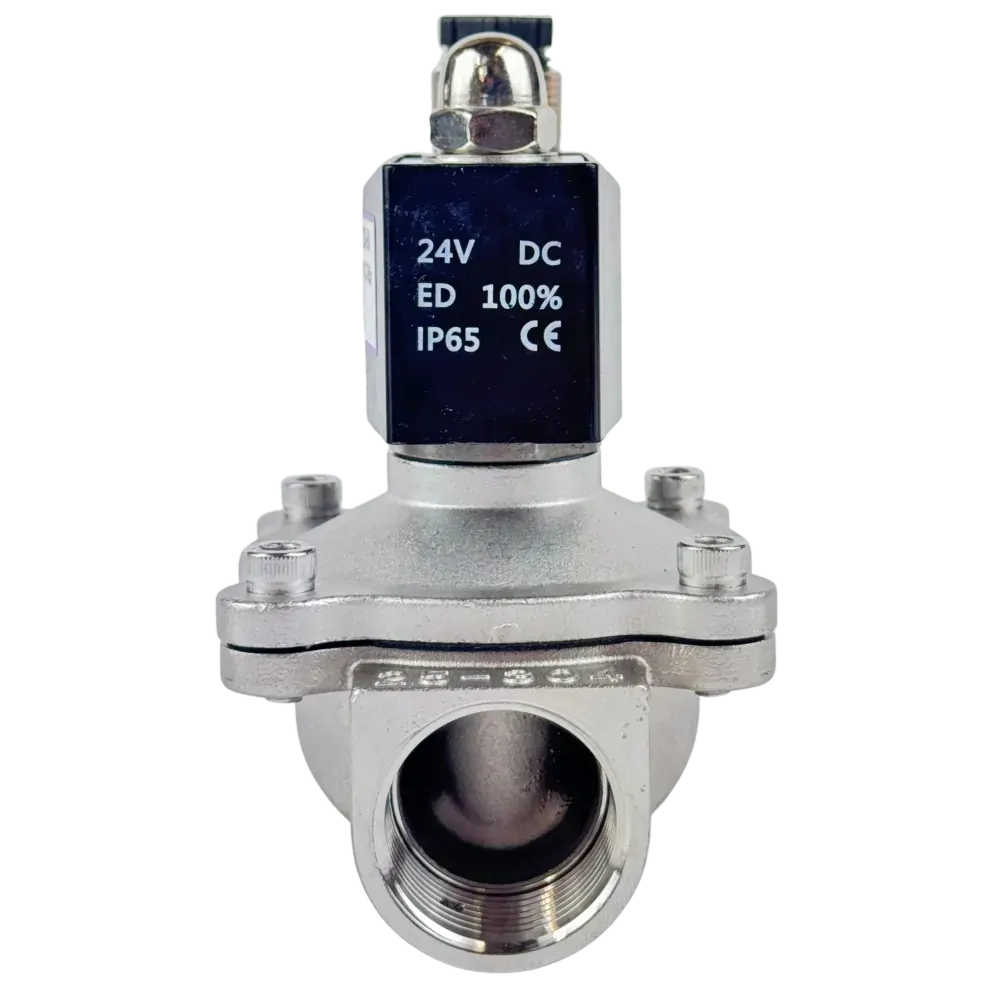

Stainless Steel General Purpose Zero Differential Normally Closed Solenoid Valve

From $132.00

Inc GST
In Stock
Make an Enquiry
  • 2 way Zero Differential Normally Closed (power to open) Solenoid Valve
  • 304 Stainless Steel Body, NBR seals
  • 0 to 5 Bar Pressure Range
  • -10°C to 80°C Temperature Range
  • For Gases & Liquids
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

Zero Differential Normally Closed Solenoid Valve

Model K (BSP) A B C D Weight Kg
ES55-3-16-*N 3/8” 93 56 106 69 0.8
ES55-4-16-*N 1/2” 93 56 106 69 0.8
ES55-5-20-*N 3/4” 100 55 117 73 0.9
ES55-6-25-*N 1” 104 78 125 99 1.35
ES55-7-35-*N 1 1/4” 141 93 172 124 2.5
ES55-8-40-*N 1 1/2” 141 93 172 124 2.5
ES55-9-50-*N 2” 157 124 195 172 4.5

All dimensions in mm unless otherwise shown.

Size 3/8" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Coupled Diaphragm
Body 304 Stainless Steel
Seat NBR
Pressure Range -0.9 to 5 BAR
Media Non aggressive media

.
.
