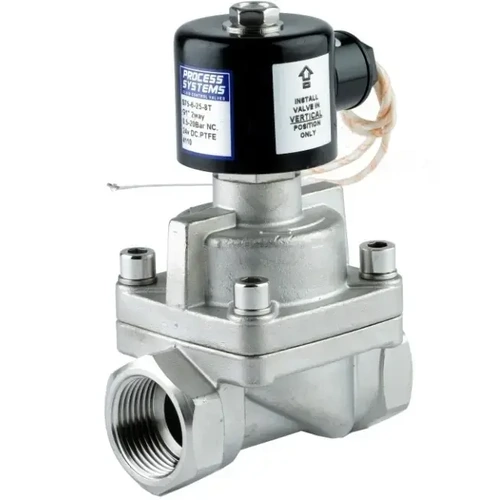

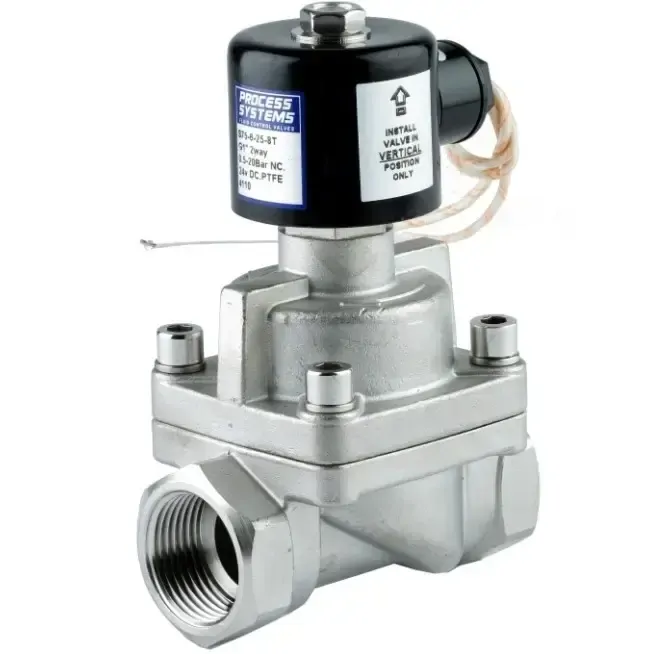

Stainless Steel High Temperature Normally Closed Solenoid Valve

From $357.50

Inc GST
In Stock
Make an Enquiry

A high flow / high pressure (up to 20 BAR) normally closed (power to open) piston type valve with a 304 Stainless Steel body and Teflon seats. Mainly used as a steam valve as it will do up to 180 degrees Celsius (steam at 10 BAR) with either a flying lead or DIN plug coil. Will handle fluids up to 50 centistoke viscosity. Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry. Please note this is a hard PTFE seat so at low pressures/temperatures it may not give a bubble tight seal. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
S75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C RK-S75-4-T SC-N16-*
DIN Plug
24 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
S75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C RK-S75-5-T
S75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C RK-S75-6-T
S75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-9-50-*T 2 50 48 0.5 to 20 -10°C to 180°C RK-S75-9-T
S75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C RK-S75-4-T SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
S75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C RK-S75-5-T
S75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C RK-S75-6-T
S75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-9-50-*TF 2 50 48 0.5 to 20 -10°C to 180°C RK-S75-9-T

Please note this valve will only handle steam to 10 BAR.

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Model A B C D E F G (BSP) H Weight Kg
S75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
S75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
S75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
S75-6-25-*T 100 70 148 52 45 41 1 23 2.35
S75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
S75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
S75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Stainless Steel 304
7 Piston Stainless Steel 304
8 Leak proof & Piston Ring Teflon



Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Others Also Bought

S75

Stainless Steel High Temperature Normally Closed Solenoid Valve

Features:

Size 1/2" to 2" BSP
Function Normally Closed (power to open)
Valve Operation Servo Assisted
Body 304 Stainless Steel
Seat PTFE
Pressure Range 0.5 to 20 BAR (10 BAR Steam)
Media Steam & High Pressure Air / Oil Media

Description:

A high flow / high pressure (up to 20 BAR) normally closed (power to open) piston type valve with a 304 Stainless Steel body and Teflon seats. Mainly used as a steam valve as it will do up to 180 degrees Celsius (steam at 10 BAR) with either a flying lead or DIN plug coil. Will handle fluids up to 50 centistoke viscosity. Typical Applications include high pressure irrigation, laundry equipment, hospitals, steam curing beds, boilers & general industry. Please note this is a hard PTFE seat so at low pressures/temperatures it may not give a bubble tight seal. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure (BAR) Media Temperature Repair Kit Coil Specifications
S75-4-15-*T 1/2 15 4.5 0.5 to 20 -10°C to 180°C RK-S75-4-T SC-N16-*
DIN Plug
24 Watts
24 Volt Amps
100% ED
Class H Insulation
IP65
S75-5-20-*T 3/4 20 9.3 0.5 to 20 -10°C to 180°C RK-S75-5-T
S75-6-25-*T 1 25 13.2 0.5 to 20 -10°C to 180°C RK-S75-6-T
S75-7-35-*T 1 ¼ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-8-35-*T 1 ½ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-9-50-*T 2 50 48 0.5 to 20 -10°C to 180°C RK-S75-9-T
S75-4-15-*TF 1/2 15 4.5 0.5 to 20 -10°C to 180°C RK-S75-4-T SC-H2
Flying Leads
25 watts
33 Volt Amps
100% ED
Class H Insulation
IP54
S75-5-20-*TF 3/4 20 9.3 0.5 to 20 -10°C to 180°C RK-S75-5-T
S75-6-25-*TF 1 25 13.2 0.5 to 20 -10°C to 180°C RK-S75-6-T
S75-7-35-*TF 1 ¼ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-8-35-*TF 1 ½ 35 26 0.5 to 20 -10°C to 180°C RK-S75-8-T
S75-9-50-*TF 2 50 48 0.5 to 20 -10°C to 180°C RK-S75-9-T

Please note this valve will only handle steam to 10 BAR.

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

.

Stainless Steel High Temperature Normally Closed Solenoid Valve

S75

Dimensions:

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Model A B C D E F G (BSP) H Weight Kg
S75-3-15-*T 75 52 129 52 45 41 3/8 14.5 1.65
S75-4-15-*T 75 52 129 52 45 41 1/2 14.5 1.65
S75-5-20-*T 85 60 141 52 45 41 3/4 18 2.13
S75-6-25-*T 100 70 148 52 45 41 1 23 2.35
S75-7-35-*T 120 90 168 52 45 41 1 1/4 33 3.85
S75-8-35-*T 120 90 168 52 45 41 1 1/2 33 3.30
S75-9-50-*T 150 122 203 52 45 41 2 40.5 7.35

All dimensions in mm unless otherwise shown.

.

Stainless Steel High Temperature Normally Closed Solenoid Valve

S75

Construction:

Stainless Steel Normally Closed Differential High Temperature Solenoid Valve

Item Article Material
1 Armature Stainless Steel 304
2 Plunger Stainless Steel 304
3 Coil Brass Wire
4 Plunger Seat Teflon
5 Spring Stainless Steel 304
6 Valve Body Stainless Steel 304
7 Piston Stainless Steel 304
8 Leak proof & Piston Ring Teflon



WARNING

These products are intended for use in industrial applications only. Do not use these products where pressures and temperatures can exceed those listed under ‘Technical Data’ and in our individual ‘Series’ data sheets. Before using these products with fluids other than these specified, for non-industrial applications, life-support systems, or other applications not within published specifications, consult PCIPro Through misuse, age, or malfunction, components used in industrial valve applications can fail in various modes. The system designer is warned to consider the failure modes of all component parts used in industrial valve applications and to provide adequate safeguards to prevent personal injury or damage to equipment in the event of such failure. System designers must provide a warning to the user in the system instructional manual if protection against a failure mode cannot be adequately provided. System designers and end users are cautioned to review specific warnings or specifications found in instruction sheets or labels packed or attached and shipped with the products. Our policy is one of continuous research and development. We therefore reserve the right to amend without notice the specifications given in this document or our individual ‘Series’ data sheets.

WARRANTY INFORMATION

All valve series and other products manufactured or distributed by PCIPro are warranted by PCIPro to be free of defects in material and workmanship for a period of 1 year from the date of purchase or as the manufacturer warrants. PCIPro obligation under this warranty is limited to repair or replacement of the defec1ive product or refund of the purchase price paid solely at the discretion of PCIPro and provided such defective product is returned to PCIPro freight prepaid and upon examination by PCIPro such product is found defective. This warranty shall be void in the event that the product has been subject to misuse, misapplication, improper maintenance, modification or tampering. This warranty is expressed in lieu of all other warranties, expressed or implied from PCIPro representatives or employees. PCIPro reserves the right to change Valve and Brochure specifications without notice.
