SKU: SF30

Stainless Steel Hose Tails

From $4.95

Inc GST
In Stock
Make an Enquiry

316 Stainless Steel Hose Barb. At one end is a tapered male BSP thread and at the other end is a hose barb. These are used to adapt between a threaded fitting and a hose/tube. Pressure rating is 150 pound.

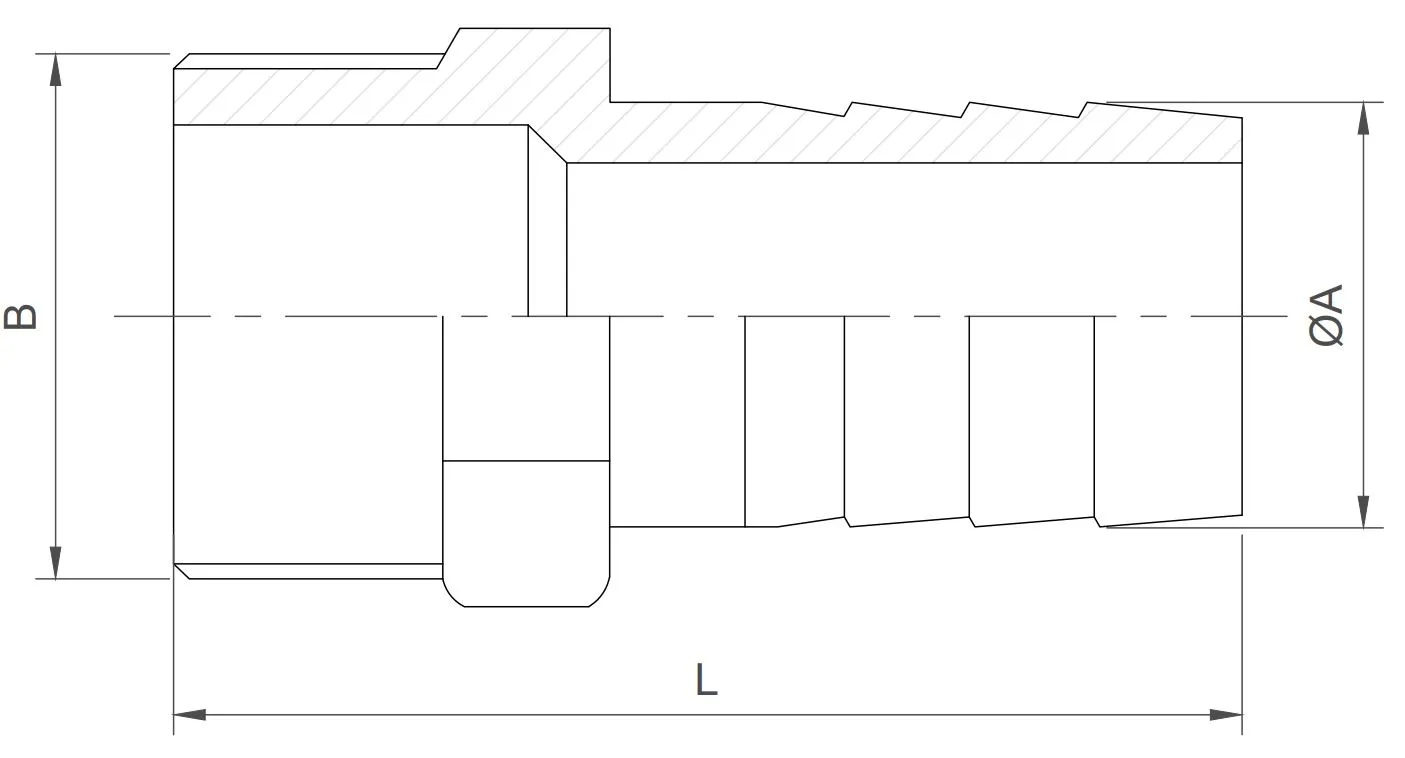

Model Thread (B) [BSP] Barb (ØA) [mm] Length (L) [mm]
SF300102 1/8" 7.5 34
SF300202 1/4" 7.5 40
SF300203 1/4" 11 40
SF300204 1/4" 14.5 42
SF300303 3/8" 11 42.5
SF300304 3/8" 14.5 46
SF300403 1/2" 11 52
SF300404 1/2" 14.5 52
SF300405 1/2" 20 55
SF300504 3/4" 14.5 59
SF300505 3/4" 20 57.2
SF300606 1" 25 64

Size 1/8" to 1" BSP
Function Stainless Steel Hose Barb
Body 316 Stainless Steel
