SKU: SF25

Stainless Steel M&F Elbow

From $3.85

Inc GST
In Stock
Make an Enquiry

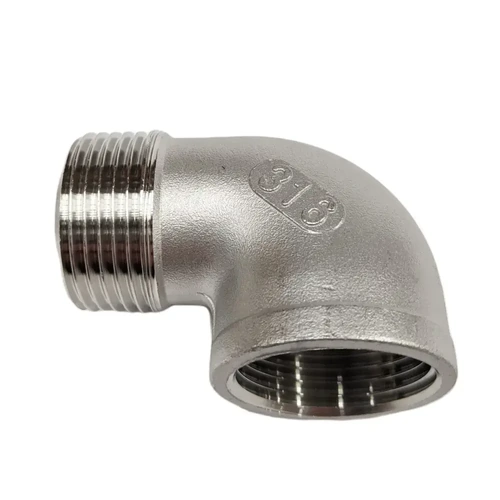

Male to Female Elbow (M&F elbow) made of 316 Stainless Steel. At one end is tapered male thread and at the other is a parallel BSP female thread. These are ideal for putting in an elbow fitting where a male and female fitting is required. Pressure rating is 150 pound.

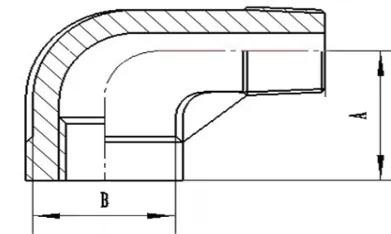

Stainless Steel M&F Threaded Elbow Dimensions

Size 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
A 15.5 16.5 18.2 20.5 23.2 29.5 35 37.5 49.5 62.5 79.5 100.5
B 13 27 29 30 38 44.2 53 56 70 84 97.5 121

All Dimensions in mm unless shown otherwise.

Size 1/8" to 4" BSP
Function M&F Elbow
Body 316 Stainless Steel
