SKU: SSM

Stainless Steel Mini Silencer

From $11.00

Inc GST
In Stock
Make an Enquiry

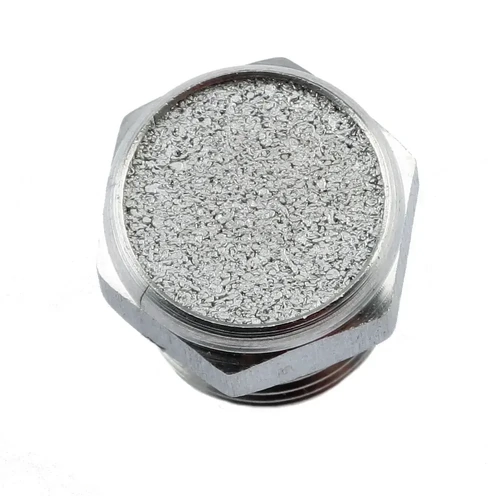

Sintered 316 stainless steel button silencer. This helps serve two functions whereby it silences the air being exhausted from the valve or actuator and it filters any air that may be sucked in from the surrounding environment. The button shape allows the silencer to fit neatly inline with the valve or actuator.

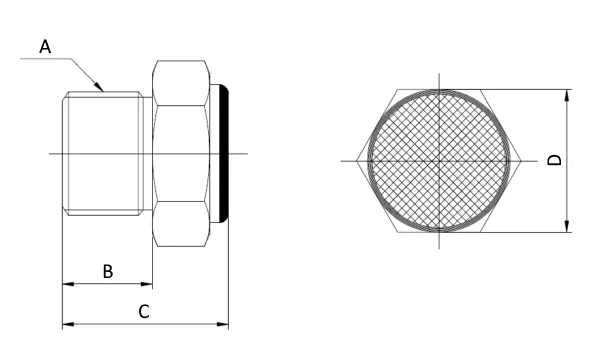

Model A B C D
SSM-M5 M5 5 12 10
SSM-01 1/8" BSPT 5.5 12 12
SSM-02 1/4" BSPT 9 17.5 15
SSM-03 3/8" BSPT 9 17.5 19
SSM-04 1/2" BSPT 13 21 22
SSM-05 3/4" BSPT 13 21 27
SSM-06 1" BSPT 15 24 34

Size M5 to 1" BSP
Function Button Silencer
Body 316 Stainless Steel

.
.
