Features:
Size 1/4" to 1" BSP
Body 316 Stailess Steel
Pressure Range 0 to 400 BAR
Factory Accredited CE, ISO 9001
316 Stainless Steel needle valve allows the user to precisely control flow by screwing the needle down onto a seat. Rated to 408 BAR (6000 psi) with T bar handle. Great for use on compatable fluids and gases.

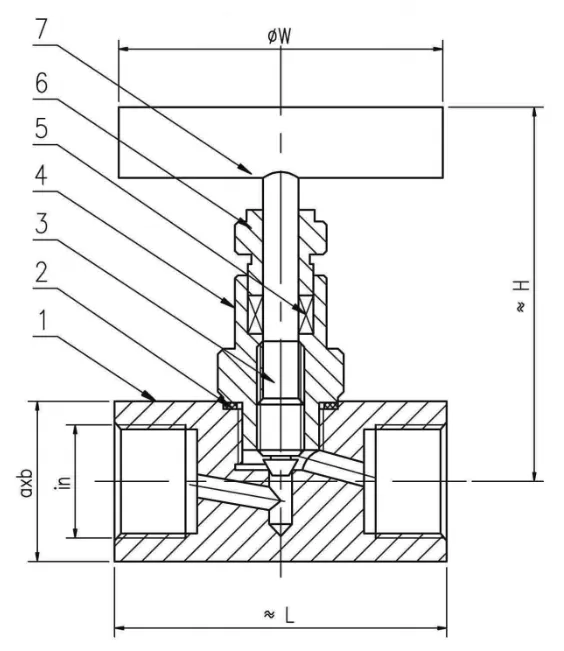

Model | Size | L | a | b | W | H |
---|---|---|---|---|---|---|
NVS-01 | 1/8" | 56 | 28 | 28 | 60 | 80 |
NVS-02 | ¼” | 56 | 28 | 28 | 60 | 80 |
NVS-03 | 3/8” | 56 | 28 | 28 | 60 | 80 |
NVS-04 | ½” | 58 | 28 | 28 | 60 | 81 |
NVS-05 | ¾” | 62 | 35 | 35 | 60 | 85 |
NVS-06 | 1” | 70 | 45 | 45 | 70 | 100 |

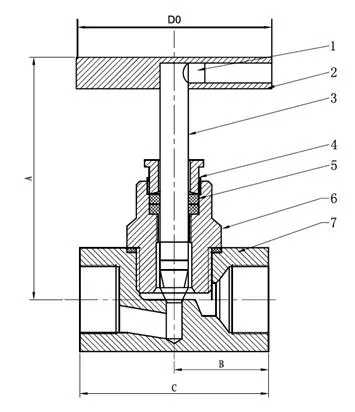

Number | Name | Material |
---|---|---|
1 | Set Screw | SS304 |
2 | Handle | SS304 |
3 | Stem | SS316 |
4 | Gland Nut | SS316 |
5 | Packing | TEFLON |
6 | Bonnet | ASTM A-351 GR. CF3M |
7 | Body | ASTM A-351 GR. CF3M |
