SKU: ES56

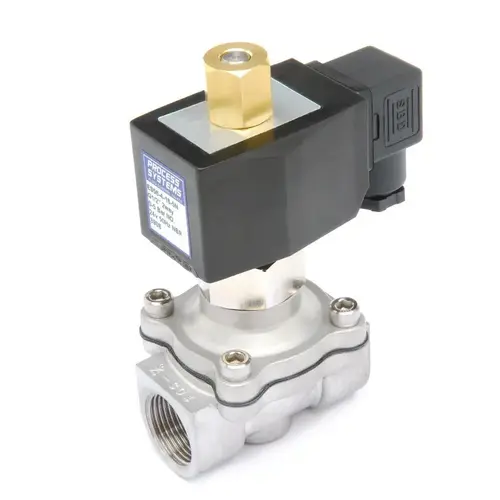

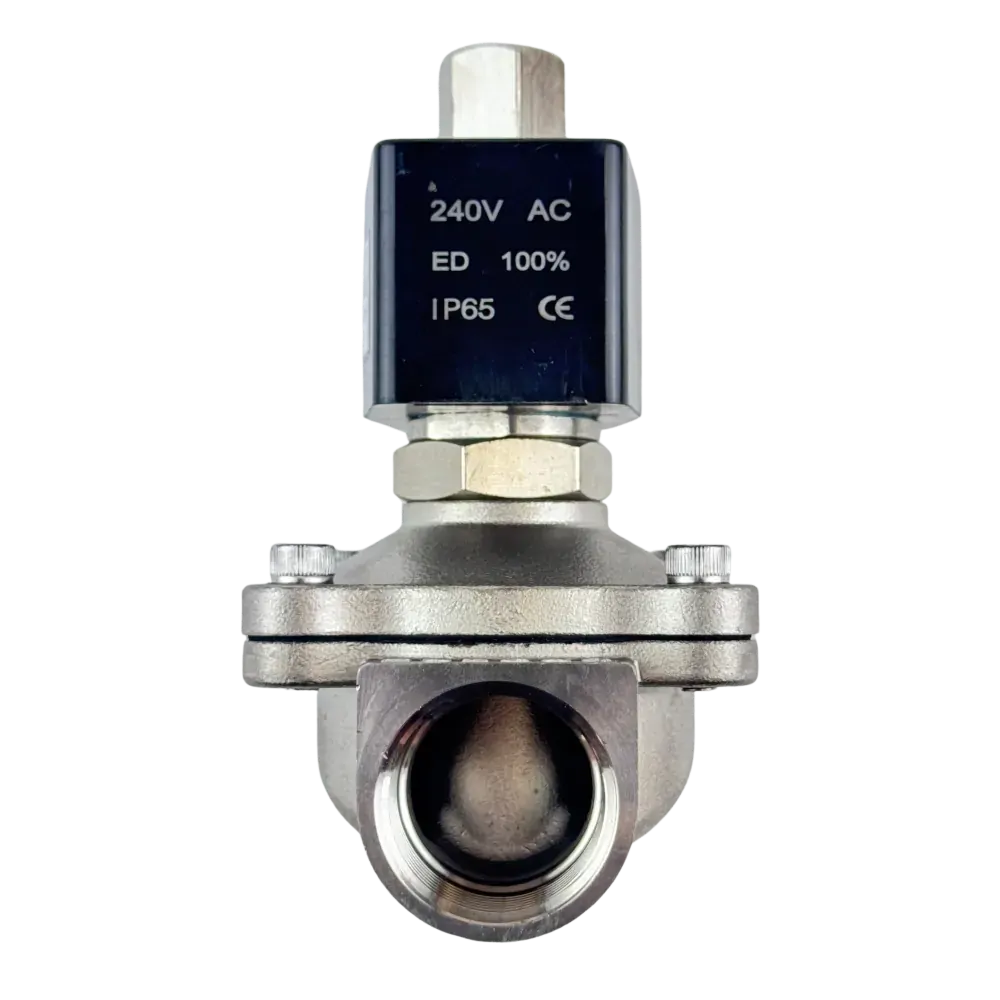

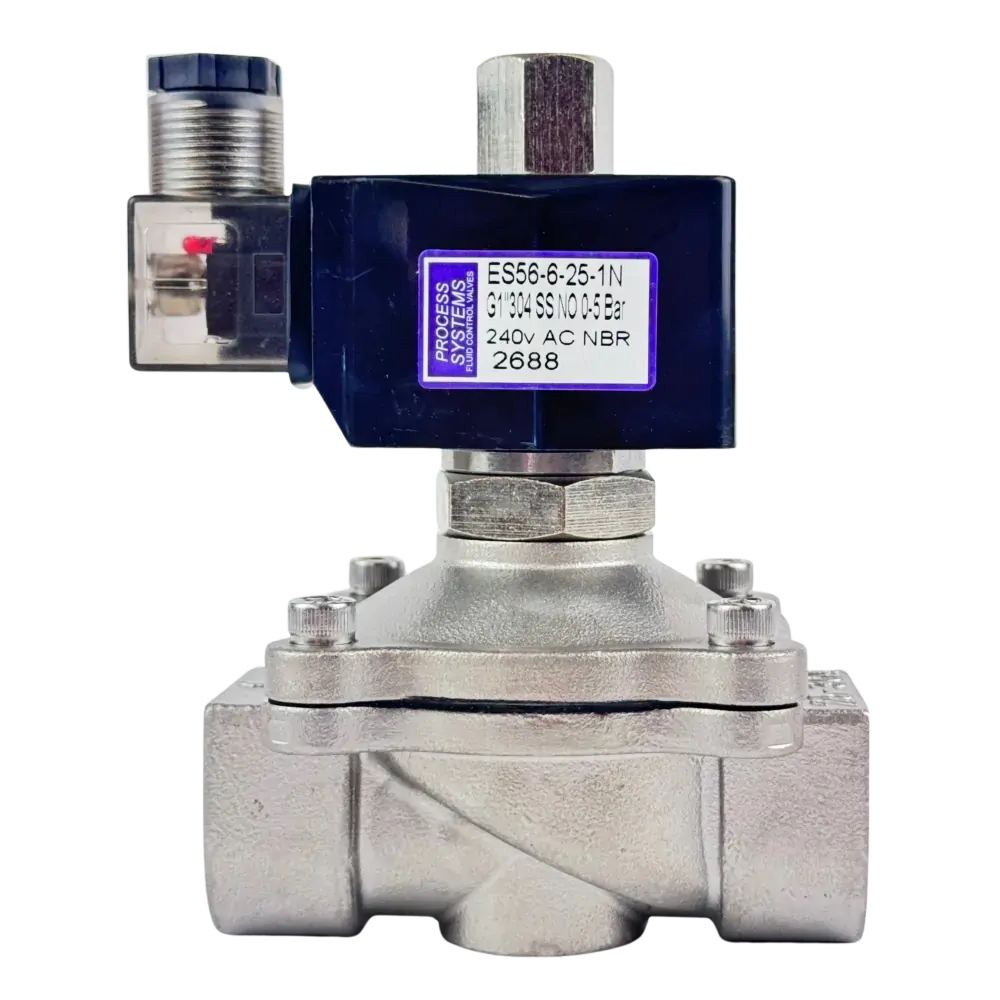

Stainless Steel Normally Open General Purpose Zero Differential Solenoid Valve

From $176.00

Inc GST
In Stock
Make an Enquiry
  • 2 way Zero Differential Normally Open (power to close) Solenoid Valve
  • 304 Stainless Steel Body, NBR seals
  • 0 to 5 Bar Pressure Range
  • -10°C to 80°C Temperature Range
  • For Gases & Liquids
  • Comes with Coil & LED DIN Plug (IP65)
  • Install in any orientation (upright if possible)

Normally Open 2 way zero differential solenoid valve

Model K (BSP) A B C D Weight Kg
ES56-4-16-*N 1/2” 120 56 172 69 0.8
ES56-5-20-*N 3/4” 125 55 172 73 0.9
ES56-6-25-*N 1” 125 78 195 99 1.35

All dimensions in mm unless otherwise shown.

Size 1/2" to 1" BSP
Function Normally Open (power to close)
Body 304 Stainless Steel
Seat NBR
Pressure Range 0 to 5 BAR
Media Non aggressive media

.
.
